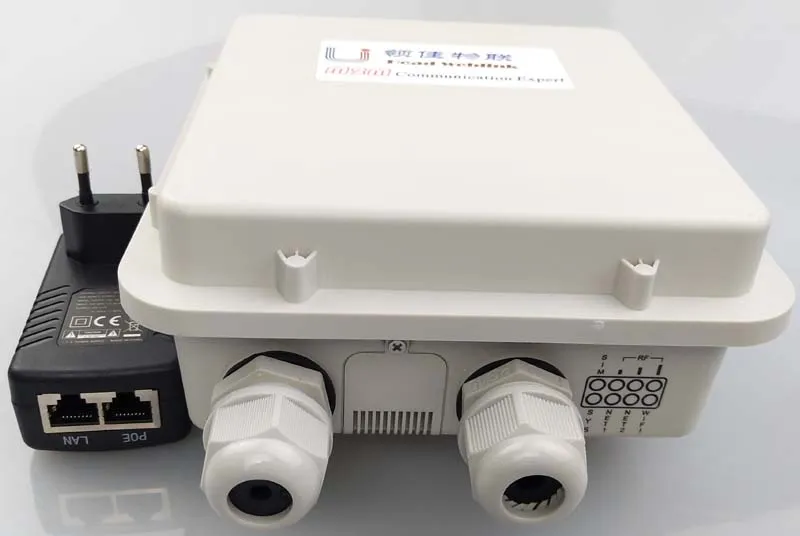

Waterproof IP67 Lte FDD Tdd 4G WiFi Outdoor CPE Router with SIM Card Slot, Router with Openwrt

Item

Product specification

CPU

Qualcomm MDM9215

MEMORY

FLASH 10MByte,  DDR2  32MByte

Embedded system

Linux

Network

FDD LTE,TDD LTE,WCDMA,GPRS,GSM

Data rate

4g: CAT 3, DL 100bps , UL 50Mbps

WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps

GPRS DL/UL 85.6Kbps

2G/3G/4G Transmitting Power

GSM/GPRS:

Class 4 (2W): GSM850,EGSM900
Class 1 (1W): DCS1800,PCS1900

EDGE:
Class E2 (0.5W): GSM850,EGSM900
Class E1 (0.4W): DCS1800,PCS1900

UMTS:
Class 3 (0.25W): WCDMA
Class 3 (0.25W): CDMA2000
Class 2 (0.25W): TD-SCDMA

LTE:
Class 3 (0.25W)

2G/3G/4G  Frequency bands

Version C
        LTE-FDD. B1,3,7,8
        LTE-TDD.B38,39,40,41
        WCDMA.900/2100MHz
        TDSCDMA. band A and band B
        GSM.900/1800MHz
Version CE.
      LTE-FDD. B1,B3,B8
        LTE-TDD.B38,B39,B40,B41
       WCDMA.900/2100MHz
       CDMA 1X/EVDO  BC0
       TDSCDMA. B34,B39
       GSM.900/1800MHz
Version E.
        LTE-FDD. B1,3,7,8,20
        LTE-TDD.B38,40
       WCDMA.900/2100MHz
       GSM.900/1800MHz
Version A.
     LTE-FDD. B2,4,5,17
      WCDMA.850/1900MHz

Version JC
      LTE FDD. B1,B3,B8,B18,B19

         LTE TDD. B41
         UMTS. B1,B6,B8
         GSM. 900/1800MHz
Version JE
       LTE FDD. B1,B8
          UMTS. B1,B8
          GSM. 900/1800MHz

Hardware interface

1*LAN 10/100Mbps

RF

Built-in 4G LTE antenna

Protocol

PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP

LED Indicator

"SYS", "SIM","RF" ,"LTE", "ETH","RUN"

SIM/UIM

Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection

Key button

Reset

Standard Power

POE input: DC 18V/1A

Power Supply

POE input: DC 12~24V

Working current

2A (Max Current)

Temperature

Operating Temperature  -40~+80ºC

Storage Temperature  -45~+85ºC

Environment humidty

95%

Case

Waterproof plastic shell, IP67

Size

172mm*165mm*90mm

Weight

554g
