ISR1100-6G Cisco 1100 Series Integrated Services Routers

Product Description

Product Description

Part of the Cisco 1000 Series Integrated Services Routers (ISR), the ISR 1100-4G, ISR1100-4GLTE and ISR 1100-6G models are powered by the Viptela operating system and combine WAN and comprehensive security in a wired high-performance platform. The ISR 1100-4G, 1100-4GLTE and 1100-6G combine an enterprise grade platform with best-in-class SD-WAN.

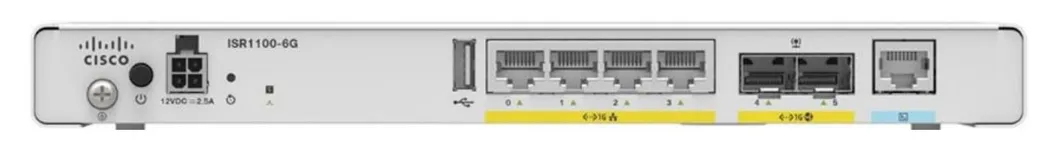

ISR 1100-6G

Cisco Software-Defined WAN (SD-WAN) is a cloud-first architecture that provides unparalleled visibility across your WAN, optimal connectivity for end users, and the most comprehensive security platform to protect your network. Cisco SD-WAN provides transport independence, rich network, and security services as well as endpoint flexibility.

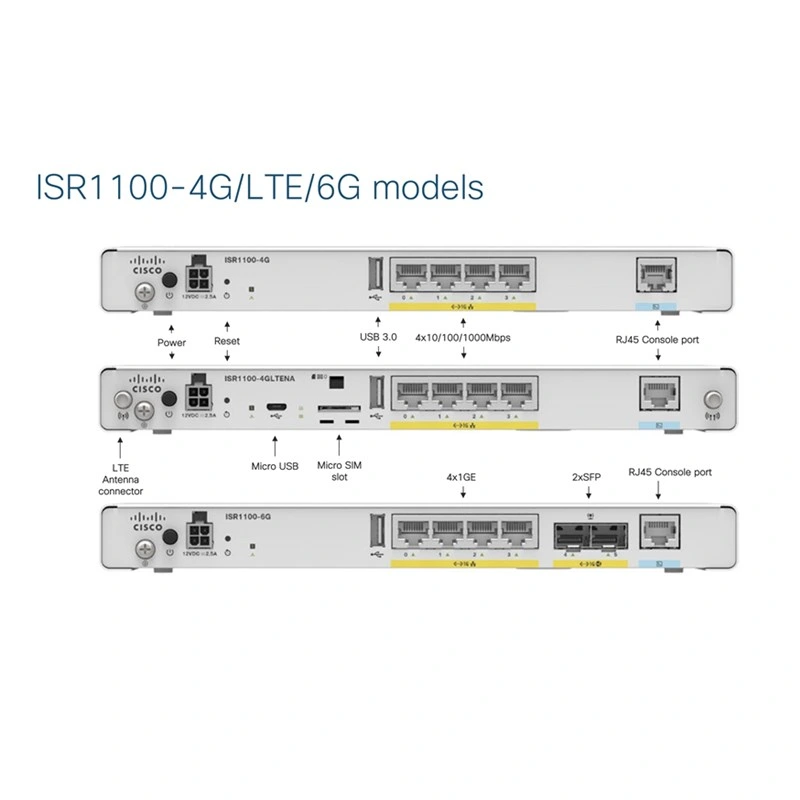

The ISR 1100-4G, 1100-6G and 1100-4GLTE routers are delivered as platforms that sit at the perimeter of a site, such as a remote office, branch office, campus, or data center. They participate in establishing a secure virtual overlay network over a mix of any WAN transports.

ISR 1100-6G

Network management solutions

Operational phase	Application	Description
Networkwide deployment, configuration, monitoring, and troubleshooting	Cisco vManage	Cisco SD-WAN automates application flexibility over multiple connections, such as the Internet and MPLS Rich networking and security services are delivered with a few simple clicks. Deploy WAN optimization, cloud security, firewalling, IPS, and URL filtering across the SD-WAN fabric from a single location Extend and manage SD-WAN fabric across physical or virtual platforms for branch, campus, data center, and cloud

Software features and protocols

Feature	Description
Protocols	Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), eBGP, iBGP, BGP Router Reflector, static, connected, OMP, 802.1Q, native VLAN, bridge domains, IRB, host-mode bridging, zero-trust, whitelisting, tamper-proof module, DTLS/TLS, IPSec, DDOS protection, control plane protection, classification, prioritization, low latency queuing, remarking, shaping, scheduling, policing, mirroring, IGMP v1/v2, PIM, Auto RP, scale-out traffic replication, service advertisement and insertion policy, IPv4, SNMP, NTP, DNS client, Dynamic Host Configuration Protocol (DHCP), DHCP client, DHCP server, DHCP relay, config archival, syslog, SSH, SCP, Cflowd v10 IPFIX export, IPv6 for transport-side, VRRP, MPLS, symmetric NAT, static NAT, NAT pools, NAT64, NAT/PAT, NAT traversal, split DNS, Access Control Lists (ACL)
Encapsulations	Generic Routing Encapsulation (GRE), IPSec, Ethernet, 802.1q VLAN, CHAP/PAP for PPP over Ethernet (PPPoE)
Traffic management	Quality of Service (QoS), COS marking, app-aware routing, Weighted Random Early Detection (WRED), loss/latency and jitter monitoring, route policies, app-aware routing, control policy, data policy, ACL policy, VPN membership policy, multi-VRF support, Performance Routing (PfR) Netconf over SSH, CLI, REST (vManage), Linux shell, ZBFs (Zone-Based Firewalls)
Cryptographic algorithms	Encryption: AES-256 (in CBC and GCM modes), Internet Key Exchange (IKE), Cisco PKI Authentication: Authentication, Authorization, and Accounting (AAA), RSA (2048 bit), Integrated QAT, ESP-256-CBC, Authentication Header, HMAC-SHA1, ECDSA (256/384 bit); Integrity: HMAC-MD5, SHA-1, SHA-2

Product Specifications

ISR1100-6G
WAN
GE (Copper)	4
SFP	-
LTE (CAT4)	-
LAN
GE (Copper)	4
Integrated USB 3.0 AUX/console	Yes
Memory (default and maximum)	DRAM: 4 GB Flash: 8 GB (5.8 GB usable)
Console	Cisco RJ45 Console port
Authentication and security	TACACS+ RADIUS Local, role-based access control
External power supply	Product power specifications: External Adapter: 30W 341-100891-01 AC input voltage: Universal 100 to 240 VAC Frequency: 50 to 60 Hz Maximum output power: 30W Output voltage: +12VDC for system power
USB 3.0	USB devices supported: USB flash memory
LEDs	System status: off = no power, green steady on = normal operation, amber steady on = system going down/fault, amber blink = boot up phase OMP Status: Green steady on = Connection is up, Off = Connection is down 1x green per Ethernet; off = no link, steady on = link connected, blink = traffic flowing SIM: green; off = no SIM, steady on = SIM present, blink: traffic flowing 1x green per SFP
Physical dimensions (W x D x H)	10.2 x 7 x 1.1 in (259 x 178 x 28 mm)
Weight	2.64 lbs (1.08 kg)
Standard safety certifications	UL 60950-1, second edition CAN/CSA C22.2 No. 60950-1, second edition EN 60950-1, second edition CB to IEC 60950-1, second edition with all group differences and national deviations AS/NZS 60950.1:2011 IEC-62368 (CB and UL/CSA) NOM-019-SCFI-1998 GB4943
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1
EMC immunity	EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000- 4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386
Environmental operating range	Operating temperature: 0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m) Operating altitude: Maximum 10,000 ft (3000 m) with 1°C derating per 1000 ft Operating humidity: 0 to 95% relative humidity noncondensing
