Broadband Mobile Hotspots Wireless Repeater 2.4G Tdd FDD Lte 4G 3G CPE Modem WiFi Router with SIM
Sunhan CPE Wireless 3G 4G LTE High Speed 300Mbps WiFi Router with SIM Card SlotMain futures :Qualcomm chipset, better performanceHigh Speed: 150Mbps via 4G LTE, 300Mbps via WiFiStrong signal with 2 external SMA antennas Support Max. 32 WiFi devices online simultaneouslyBuild-in battery: keep working......
Send Inquiry
Product Description

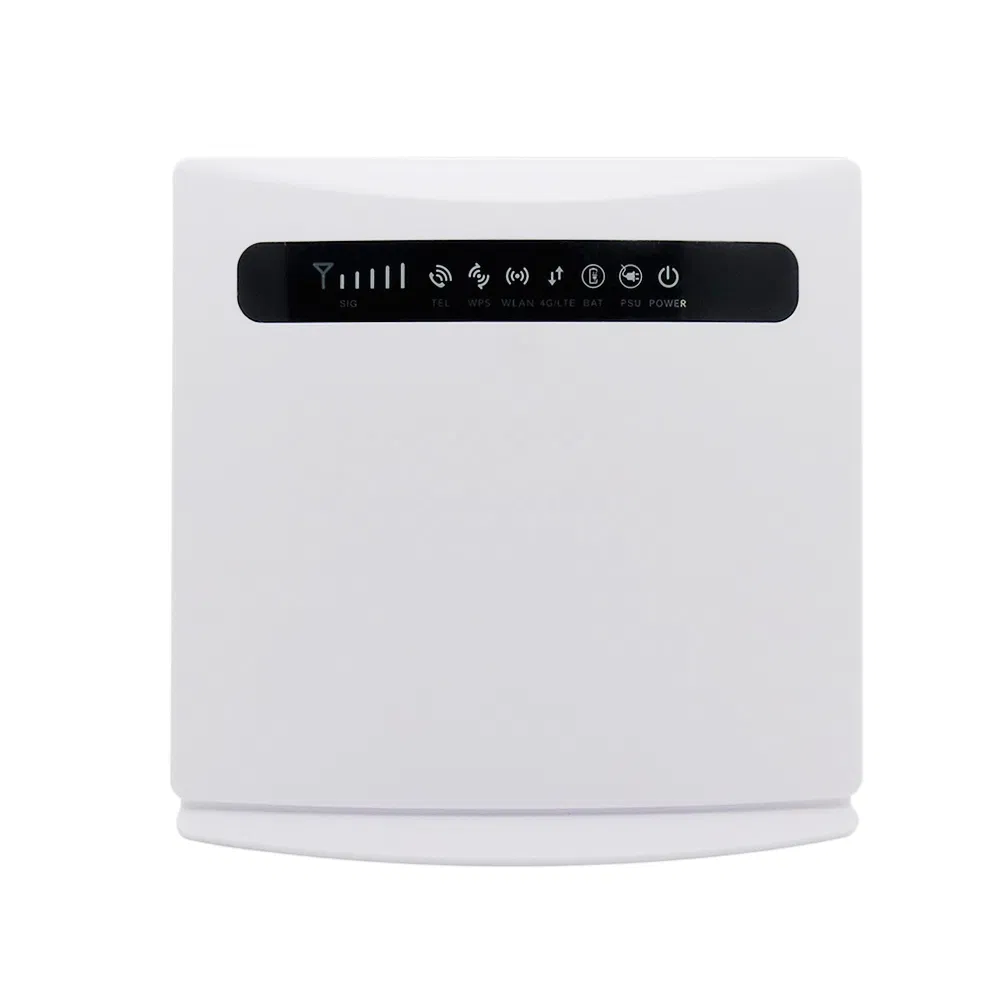

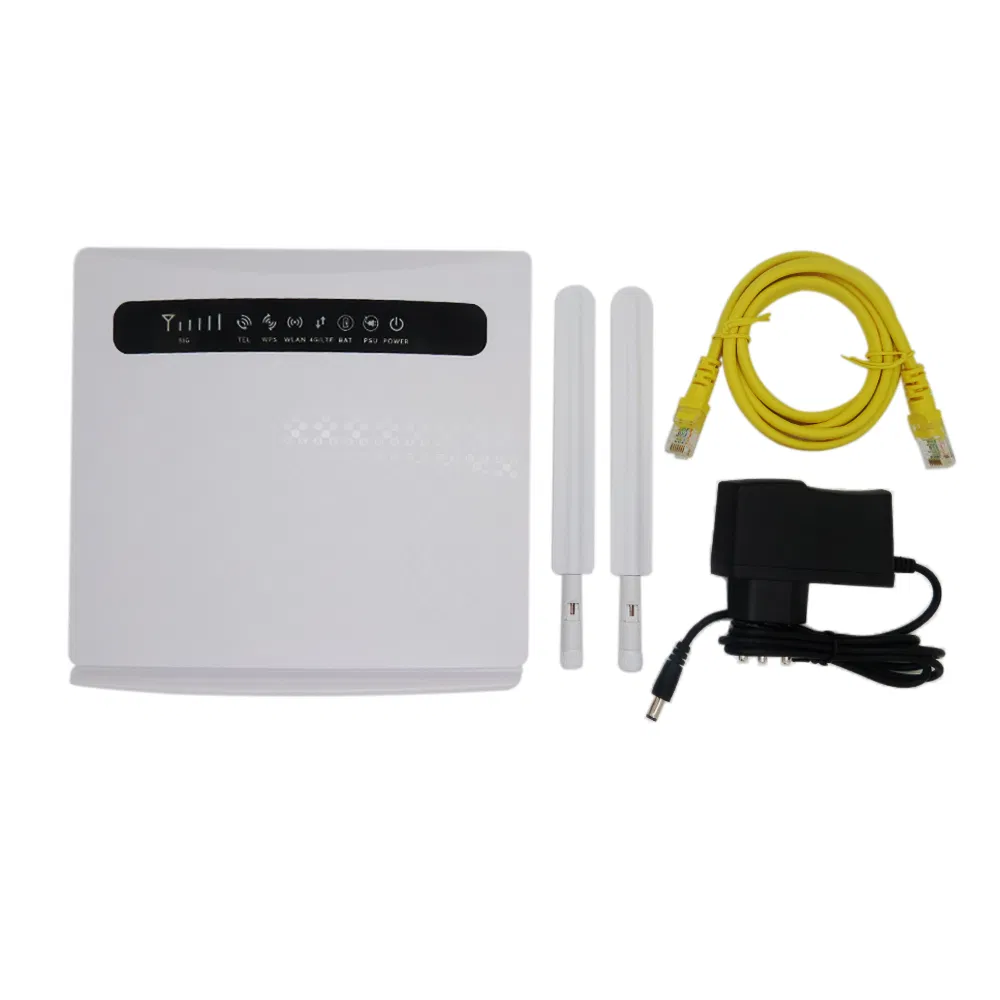

Sunhan CPE Wireless 3G 4G LTE High Speed 300Mbps WiFi Router with SIM Card Slot
Main futures :
Parameters:
About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Main futures :
- Qualcomm chipset, better performance
- High Speed: 150Mbps via 4G LTE, 300Mbps via WiFi
- Strong signal with 2 external SMA antennas
- Support Max. 32 WiFi devices online simultaneously
- Build-in battery: keep working when power is off suddenly
Parameters:
| SHFi4G8X8 | Technical specifications |
| 4G Platform | Qualcomm MDM9225 |
| Qualcomm MDM9225 | LTE-FDD/ TDD-LTE/WCDMA |
| LTE | Option 1: FDD:B1/B2/B3 or B4/B5/B7/B8/B28 TDD:B38/B39/B40/B41(can be customized) Option 2: FDD:B1/B2/B3 or B4/B5/B7/B8/B17/B20 TDD:B38/40(can be customized) Please confrim your frequencies, frequencies can be customized |
| 3G/2G | WCDMA:B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Rate level | CAT4 DL:150Mbps / UL:50Mbps |
| Transmitting power | 23dBm |
| Antenna | External antenna and internal antenna,Gain>3db |
| WiFi | |
| WiFi Band | 2.4GHz,802.11b/g/n |
| WiFi Rate | Highest rate 300Mbps |
| WiFi Standard | IEEE 802.11b/g/n |
| WiFi RF Characteristics | Highest transmit power 22dBm,sensitivity is better than -77dBm |
| Number of linking users | Maximum 32 user connected |
| CSFB | support |
| Network Features | |
| Networking protocols | PPTP,L2TP,PPPoE,DHCP,Client/Server,NAPT,NTP |
| High-speed router | Built-in DHCP Server,DNS Clinet,support NAT |
| Dialing function | Manual dialing,autodialing,PPPOE dialing |
| SIM card Features | Support 1.8V/3V powered SIM/USIM card,Support encryption card,Support |
| Management | |
| Web smart | support |
| Centralized network management | support |
| TR069 | support |
| Remote Upgrade | support |
| Security | |
| Security Features | Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding |
| Speed control | Support UL and DL speed limit , port speed limit |
| Hardware | |

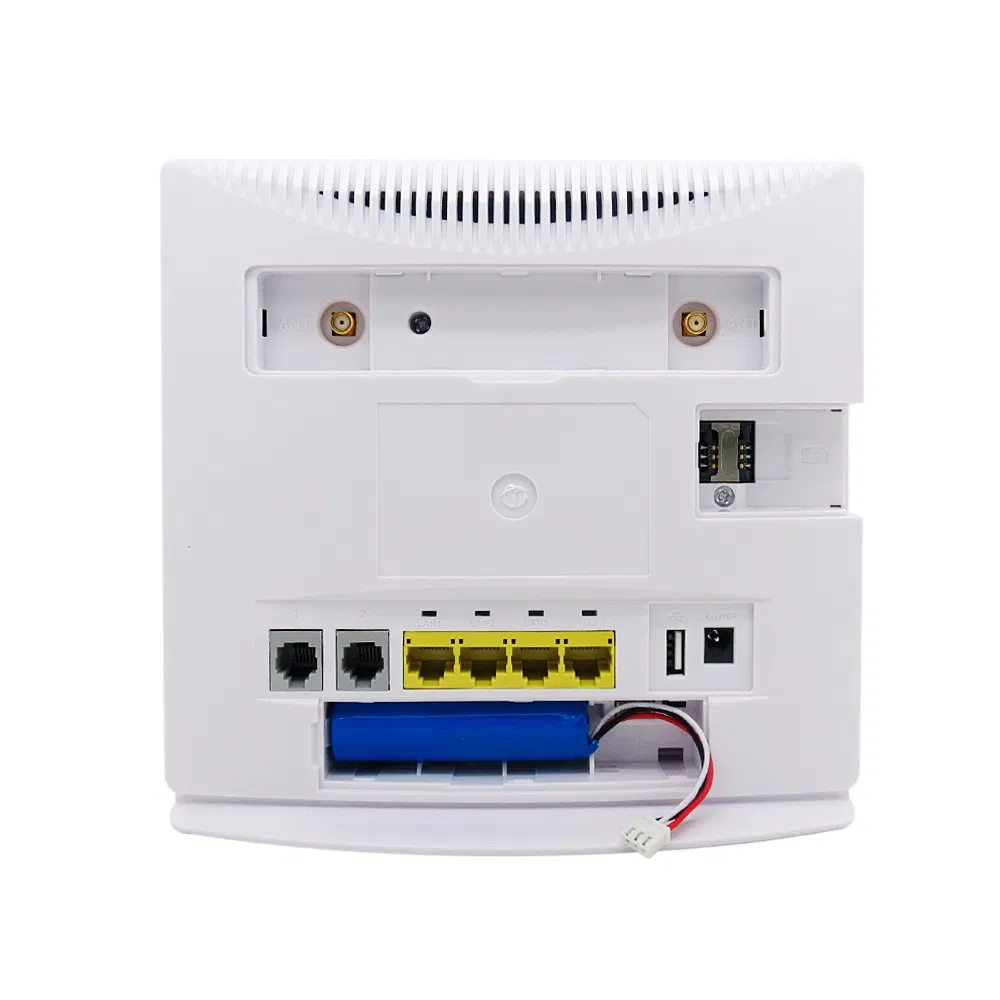

| LAN/WAN | RJ-45x4 (10/100/1000Mbps ethernet port) |
| FXS | RJ-11x2 by paralleling(optional) |
| PSU | DC2.0 15V @ 500mA |
| Power | 3.0W |
| Light | power,network,signal,LAN |
| Physical Characteristics | |
| Working temperature | -20~50ºC |
| Stock temperature | -40~85ºC |
| Huminity | ≤95% |
About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
