Brand new Aruba 530 SERIES WIRELESS ACCESS POINTS Very high Wi-Fi 6 (802.11ax) performance withdual radios
Product DescriptionARUBA 530 SERIES WIRELESS ACCESS POINT Very high Wi-Fi 6 (802.11ax) performance with dual radiosAruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements.With a maximum real-world aggregate ......
Send Inquiry
Product Description
Product Description

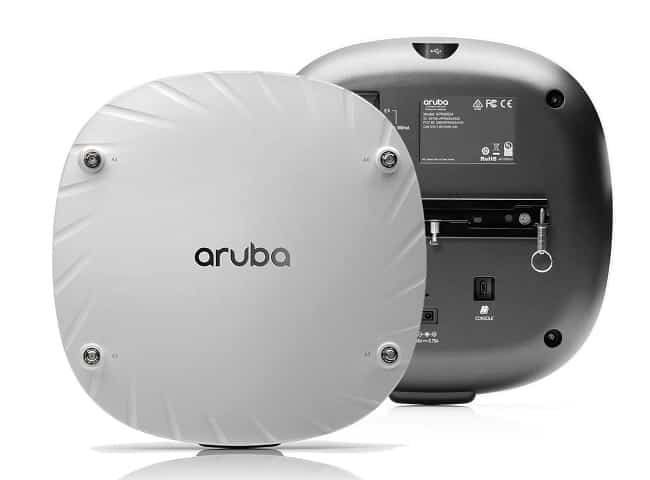

ARUBA 530 SERIES WIRELESS ACCESS POINT
Very high Wi-Fi 6 (802.11ax) performance with dual radios
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements.
With a maximum real-world aggregate data rate of 2.97 Gbps (HE80/HE20), the 530 Series deliver the speed and reliability needed for any enterprise.
KEY FEATURES
•2.97 Gbps maximum real-world speed (HE80/HE20)
•WPA3 and Enhanced Open security
•Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
•OFDMA and MU-MIMO for enhanced multi-user efficiency
•IoT-ready Bluetooth 5 and Zigbee support
Product Details
| TECHNICAL SPECIFICATIONS | |

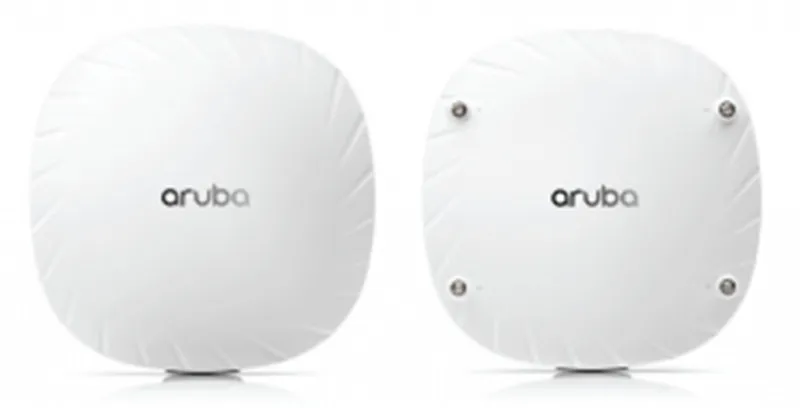

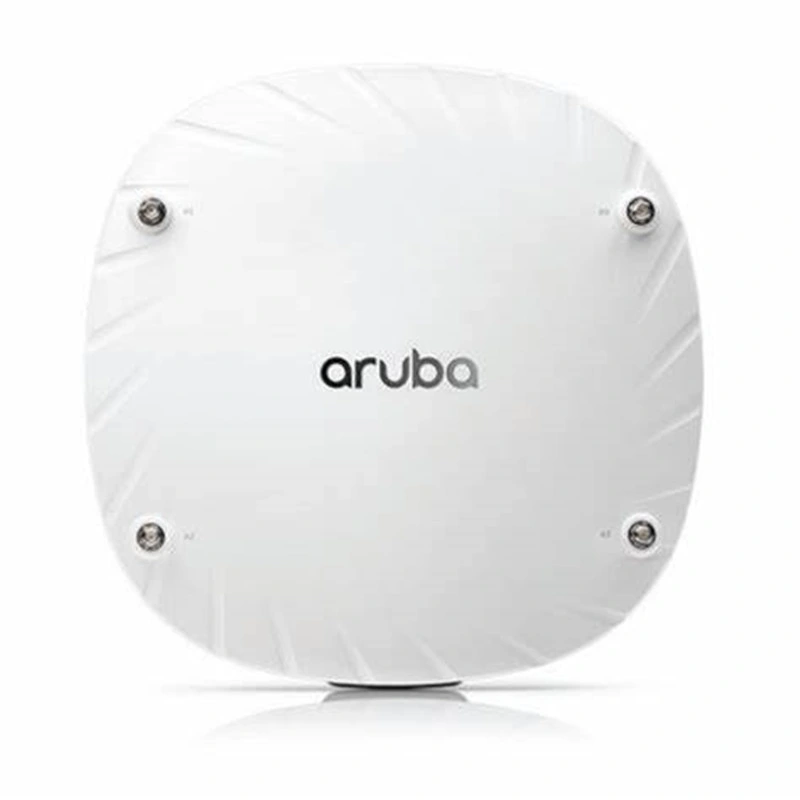

| Hardware variants | •AP-534: External antenna models •AP-535: Internal antenna models |
| Mechanical specifications | •Dimensions/weight (AP-535; unit, excluding mount bracket): - 240mm (W) x 240mm (D) x 57mm (H) / 9.4" (W) x 9.4" (D) x 2.2" (H) - 1,270g / 44.8oz •Dimensions/weight (AP-535; shipping): - 285mm (W) x 300mm (D) x 105mm (H) / 11.2" (W) x 11.9" (D) x 4.1" (H) - 1,930g / 68.1oz |

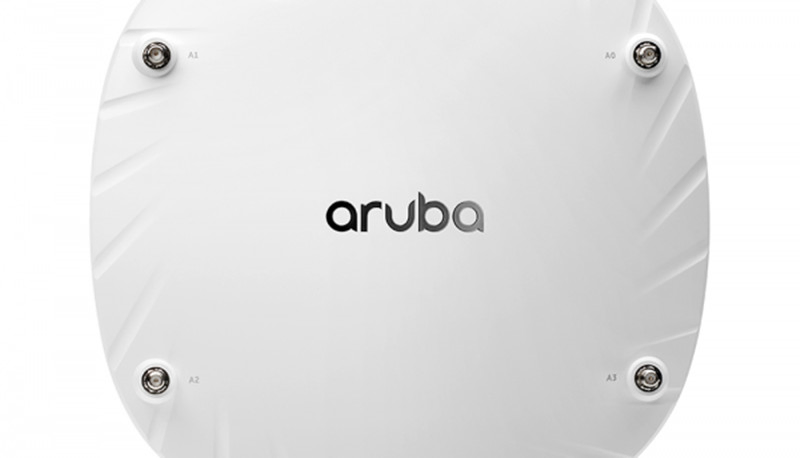

| Wi-Fi antennas | •AP-534: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.3dB in 5GHz. •AP-535: Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. - A mix of horizontally and vertically polarized antenna elements is used - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.9dBi in 2.4GHz and 3.5dBi in 5GHz. |
| Environmental specifications | •Operating conditions - Temperature: 0C to +50C / +32F to +122F - Humidity: 5% to 93% non-condensing - AP is plenum rated for use in air-handling spaces - ETS 300 019 class 3.2 environments |
| Reliability | Mean Time Between Failure (MTBF): 995,000hrs (114yrs) at +25C operating temperature. |
| Regulatory compliance | •FCC/ISED •CE Marked •RED Directive 2014/53/EU •EMC Directive 2014/30/EU •Low Voltage Directive 2014/35/EU •UL/IEC/EN 60950 •EN 60601-1-1, EN60601-1-2 or more country-specific regulatory information and approvals, please see your Aruba representative. |
| Regulatory model numbers | •AP-534: APIN0534 •AP-535: APIN0535 |
| Certifications | •UL2043 plenum rating •Wi-Fi Alliance: - Wi-Fi CERTIFIED a, b, g, n, ac - Wi-Fi CERTIFIED 6 (ax) - WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) - WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband - Passpoint (release 2) •Bluetooth SIG |
