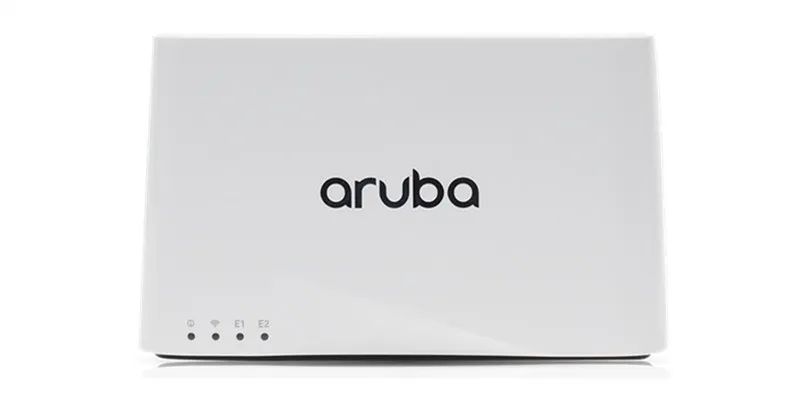

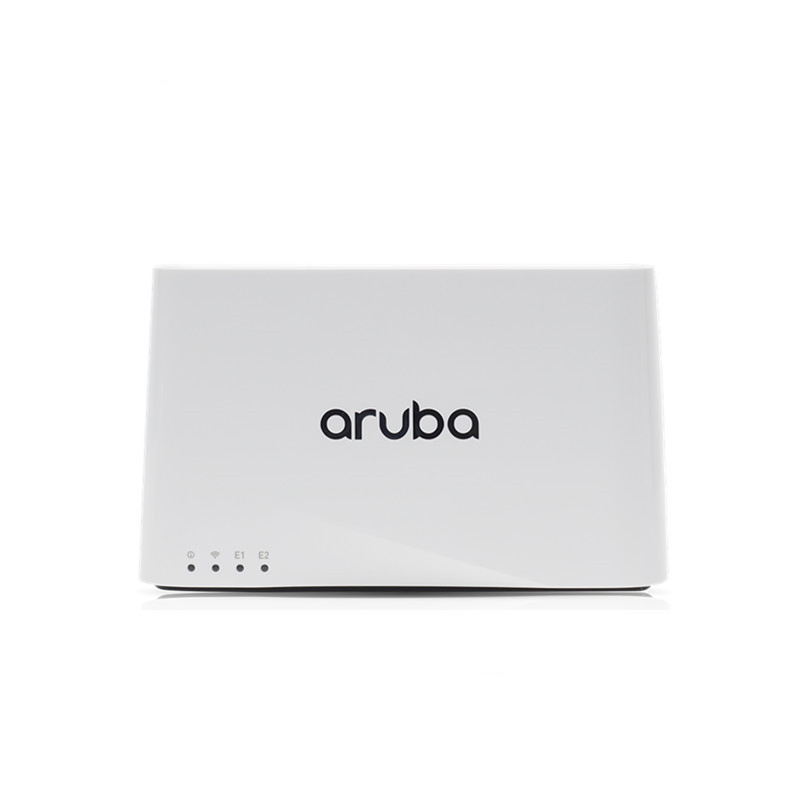

Aruba 203R SERIES REMOTE ACCESS POINTS Aruba 203R Remote AP

Product Description

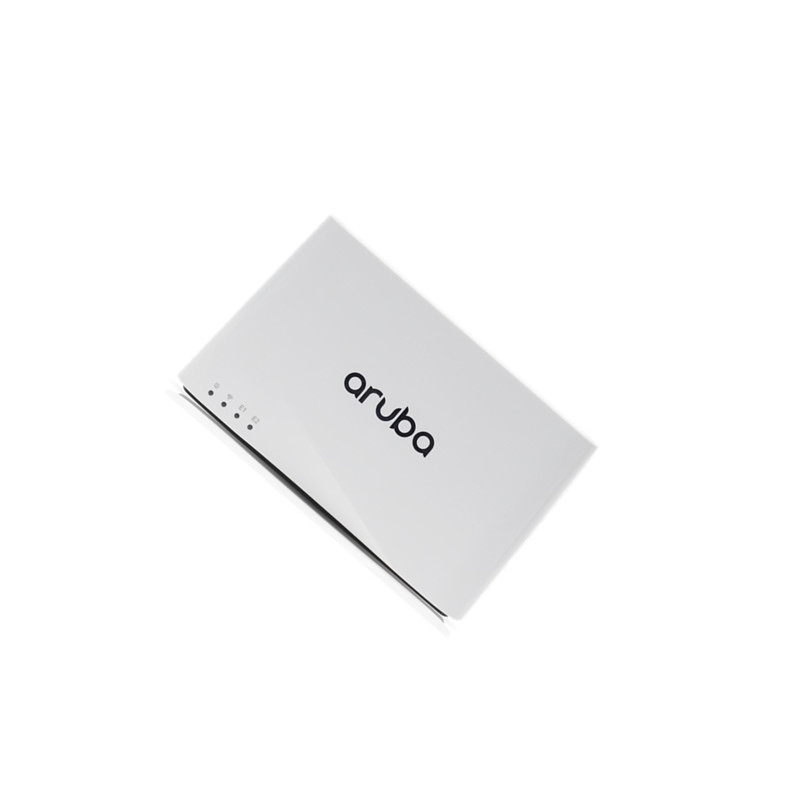

ARUBA 203R SERIES REMOTE ACCESS POINT
802.11ac access point for home and small branch offices



Aruba 203R Series Desk stand/Wall plate Access Points APINR203

Product Details
Unified flexible radio 802.11ac remote AP with internal antennas.

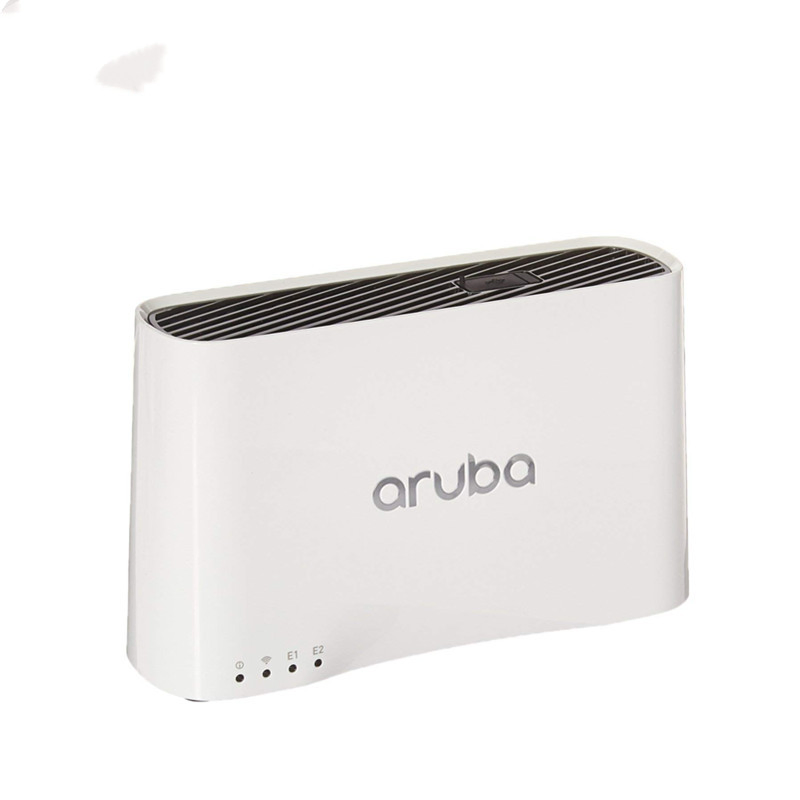

Supports wall-box and desk mount deployments

WI-FI ANTENNAS

Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and
1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP.
Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi
in 2.4GHz and 0.5dBi in 5GHz.

OTHER INTERFACES

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
Local: Two 10/100/1000BASE-T Ethernet (RJ-45, back)
Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models)
Bluetooth Low Energy (BLE) radio
Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity
Integrated antenna with moderately directional pattern and peak gain of 1dBi
USB 2.0 host interface (Type A connector, top)
3G/4G cellular modems
Device battery charging port
Capable of supplying up to 1A/5 watts of power to anattached device
AC power interface, 2 prong IEC 60320-1 C8 receptacle(back)
Visual indicators (LEDs, front):
Power/system status
Radio status
Local network port status (2x)
Includes PoE-PSE status (AP-203RP models)
Reset/LED control button ("paperclip access", bottom)
Factory reset (when activated during device power up)
LED control: toggle off/normal
Serial console interface (custom, uUSB physical jack, bottom)

POWER SOURCES AND CONSUMPTION
The AP supports direct AC power: 90V - 265V, 47Hz - 63Hz.
Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added
when ordering the AP.

Maximum (worst-case) power consumption: 7.5W.
Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 6W for a 5W/1A USB device
and up to 18W for a max load (15.4W) 802.3af PoE-PD device
Maximum (worst-case) power consumption in idle mode: 4.6W.

MOUNTING

The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product
labels.
The cover can be used to support wall mounted deployments as well.

MECHANICAL

Dimensions/weight (unit, with cable cover):
155mm (W) x 50mm (D) x 95mm (H)
320g (AP-203R), 340g (AP-203RP)

Dimensions/weight (shipping):
224mm (W) x 159mm (D) x 78mm (H)
510g (AP-203R), 590g (AP-203RP)

ENVIRONMENTAL

Operating:
Temperature: 0° C to +40° C (+32° F to +104° F)
Humidity: 5% to 93% non-condensing
Storage and transportation:
Temperature: -40° C to +70° C (-40° F to +158° F)

RELIABILITY

MTBF at +25C° operating temperature:
AP-203R: 324,000 hours (37 years)

REGULATORY MODEL NUMBERS

AP-203R-xx (all variants): APINR203

MINIMUM SOFTWARE VERSIONS

ArubaOS™ 6.5.2.0/8.2.0.0
Aruba InstantOS™ 6.5.2.0/8.2.0.0
