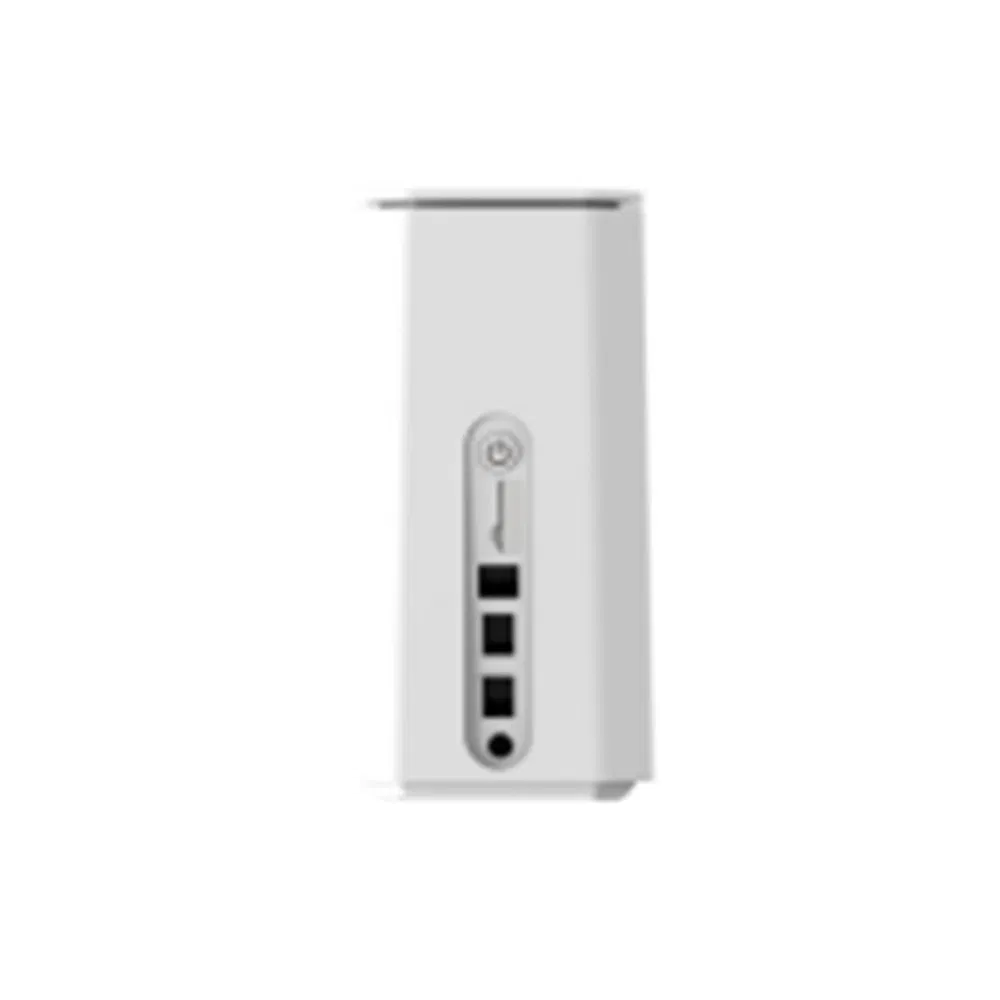

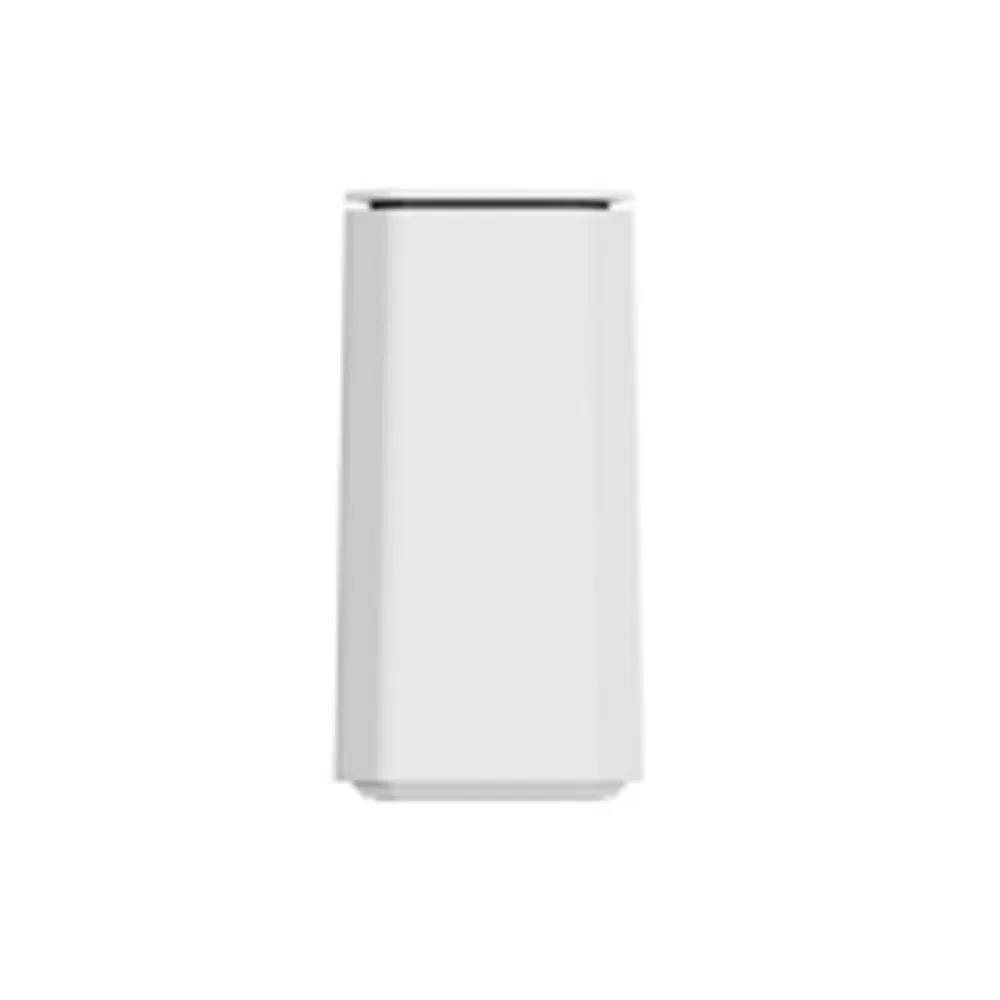

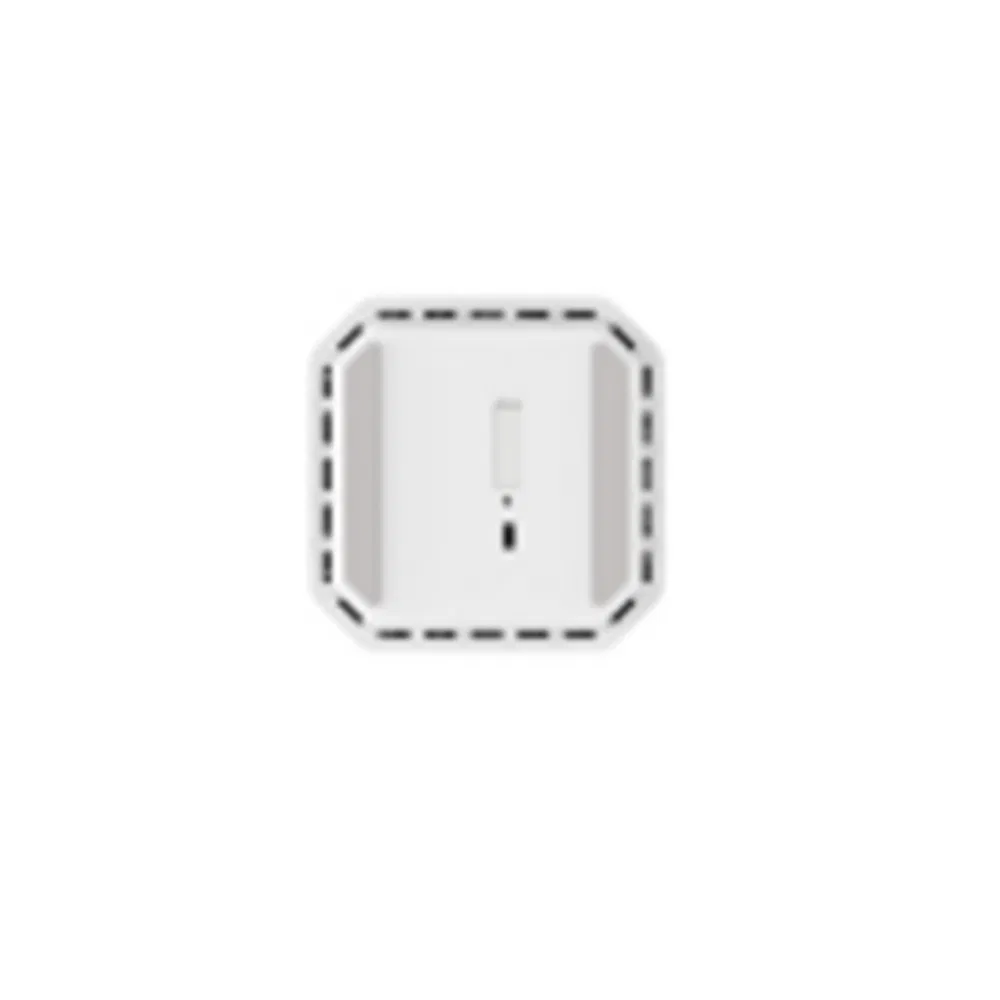

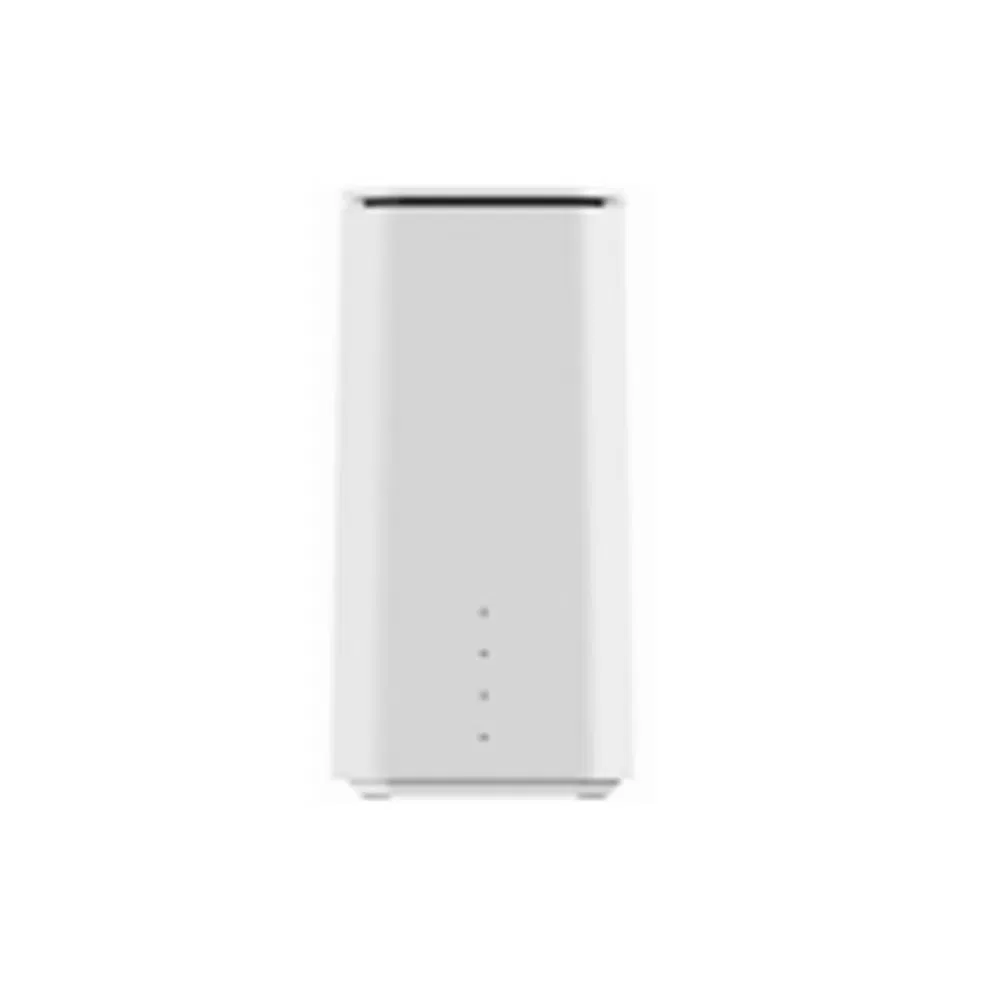

5g CPE Mobile WiFi Router with SIM/ Usim 32 User Connected
New 5G WiFi Router with SIM Card Slot Home CPE 4G LTE Wireless Router Support 64 Users Product DescriptionFeatures:1.5G Cellular: Built-in Qualcomm SDX55 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi mode.2. Wi-Fi 6 (802.11ax): The revolutionary......
Send Inquiry
Product Description
New 5G WiFi Router with SIM Card Slot Home CPE 4G LTE Wireless Router Support 64 Users
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Features:
1.5G Cellular: Built-in Qualcomm SDX55 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi mode.
2. Wi-Fi 6 (802.11ax): The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best
network efficiency.
network efficiency.
3. Higher Wireless Capacity: Dual-band 6 spatial streams, the CPE outputs wireless bandwidth (574 + 2400), makes you peace of mine while enjoy UHD videos, online games at the home rush hours.
4. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
4. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
| Model No. | SHFi5GIDUX55 | |
| Product Form | Appearance | Vertical |
| Size | 108mm*108mm*234.5mm | |
| Weight | 350g | |
| Platform | Modem Chipset | Qualcomm SDX55 |
| WiFi Chipset | IPQ 8071 | |
| 5G & LTE | ||
| Technical Standard | UE Category | 3GPP Release15, Category 22; up to 2.5Gbps DL and 316Mbps UL |
| Frequency Band | 5G: n7, n77, n78 LTE-FDD: B1/B3/B7/B8/B20/B28/B32 LTE-TDD: B38/B42 | |
| CA | 1A(4)+3A(4); DC_1_n77, DC_3_n77, DC_1-3_n77, DC_1_n78, DC_3_n78, DC_1-3_n78 | |
| Internal LTE Antenan | 4x4 MIMO, Support B1/3 | |
| 256 QAM | Support | |
| WLAN+ROUTER | ||
| Technical standard | IEEE 802.11a/b/g/n/ac/ax | Support, |
| WIFI Frequency | 2.4G, 574Mbps@40Mhz, AX 2x2 | |
| WIFI Frequency | 5G, 2.4Gbps@80Mhz, AX 4x4 | |
| Internal WIFI Antenna | 4x4 MIMO, Support MU-MIMO | |
| 1024 QAM | Support | |
| DBDC | Support | |
| WIFI Channel | 1~13 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, | Support |
| Users | WIFI access | Up to 64 |
| Multi-SSID | Support | 2 |
| Security,encryption | Support | WPA-Personal,WEP(64-Bit),WEP(128-Bit),WPA2(Personal) |
| External Hardware Interface | ||
| Interface | WPS Button | 1,Push push, Establish WPS PBC paring process |
| Reset Button | 1,Embedded, Reset to factory settings | |
| LAN | 2, Gigabit Ethernet ports | |
| External Antenna - 5G | Support, 2 | |
| RJ11 | 1, | |
| Power Jack | 1, 5mm 12V/3A | |
| SIM card slot | Nano SIM | |
| LED indicator | 4G,5G,WIFI,Power | |
| Device management | ||
| TR069 | Support | |
| Local Firmware Update | Support | |
| Remote Firmware Update | Support | Based on TR069 |
| QoS | Support | Base on service, Band control etc. |
| Setup Wizard page | Support | |
| Basic telecom features | ||
| Phone(Fixed-line) | Support | support VOLTE |
| Basic Call Features | Support | DTMF Tone,Caller ID,Call Waiting,Call Forward (Busy, Unconditional, No Reply),etc. |
| PIN1 lock | Support | |
| PIN1 code modify | Support | |
| APN Setting | Support | support Auto APN / Manual setting APN |
| Network Mode | Support | support Automatic / LTE only / 5G only |
| Network Search | Support | support Automatic / Manual |
| Others | ||
| Certification | ROHS | Support |
| CE | Support | |
| Others | As required | |
| Enviromental parameters | Working Temperature | 0ºC~40ºC |
| Storage Temperature | -20ºC~70ºC | |
| Working Humidity | 10%~90% | |
| Storage Humidity | 5%~95% | |
| Packaging | CPE | 1 |
| Adaptor | 1, 12V/3.5A | |
| Quick guide | 1 | |
Main futures :
1. Support 4G/5G network,bands can be customized
2. Qualcomm SDX55 chipsets
3. VOLTE with RJ11 port optional
4. 2 Gigabit Ethernet ports
5. 4x4 MIMO internet WiFi antenna, Support MU-MIMO
6. Surpport IEEE 802.11a/b/g/n/ac/ax, WiFi 6.
7. Support more than 64 WIFI devices online simultaneously.
1. Support 4G/5G network,bands can be customized
2. Qualcomm SDX55 chipsets
3. VOLTE with RJ11 port optional
4. 2 Gigabit Ethernet ports
5. 4x4 MIMO internet WiFi antenna, Support MU-MIMO
6. Surpport IEEE 802.11a/b/g/n/ac/ax, WiFi 6.
7. Support more than 64 WIFI devices online simultaneously.

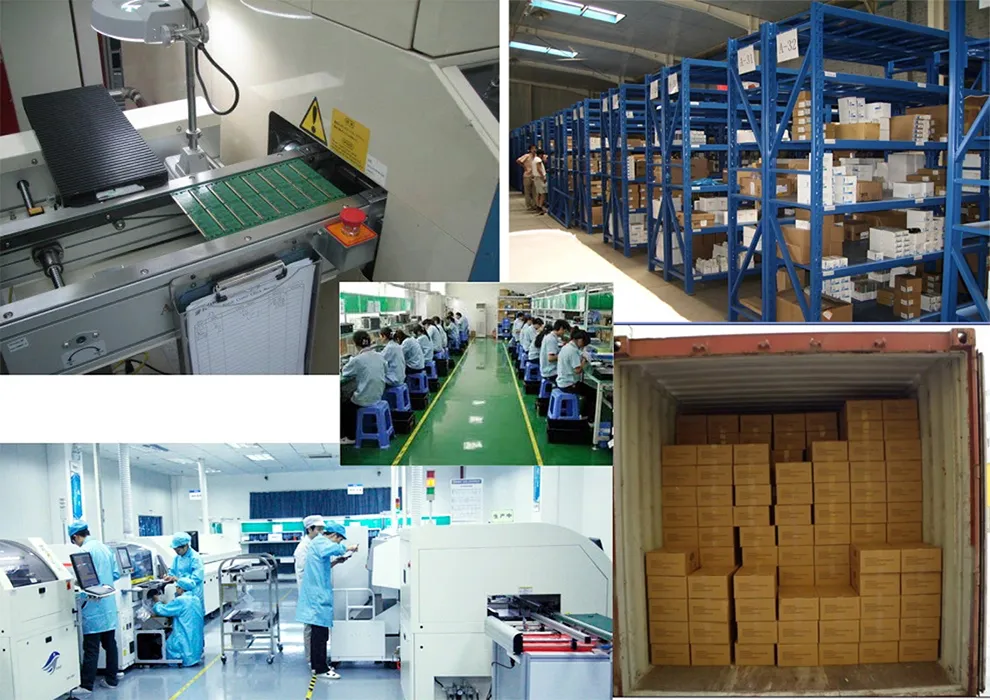

About us
