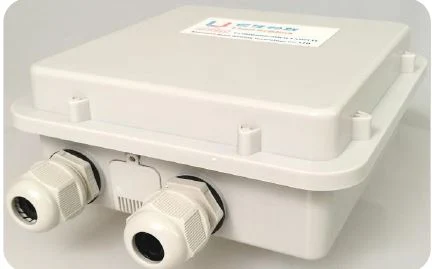

4G Lte Outdoor Dual LAN Ports Router or CPE

• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;

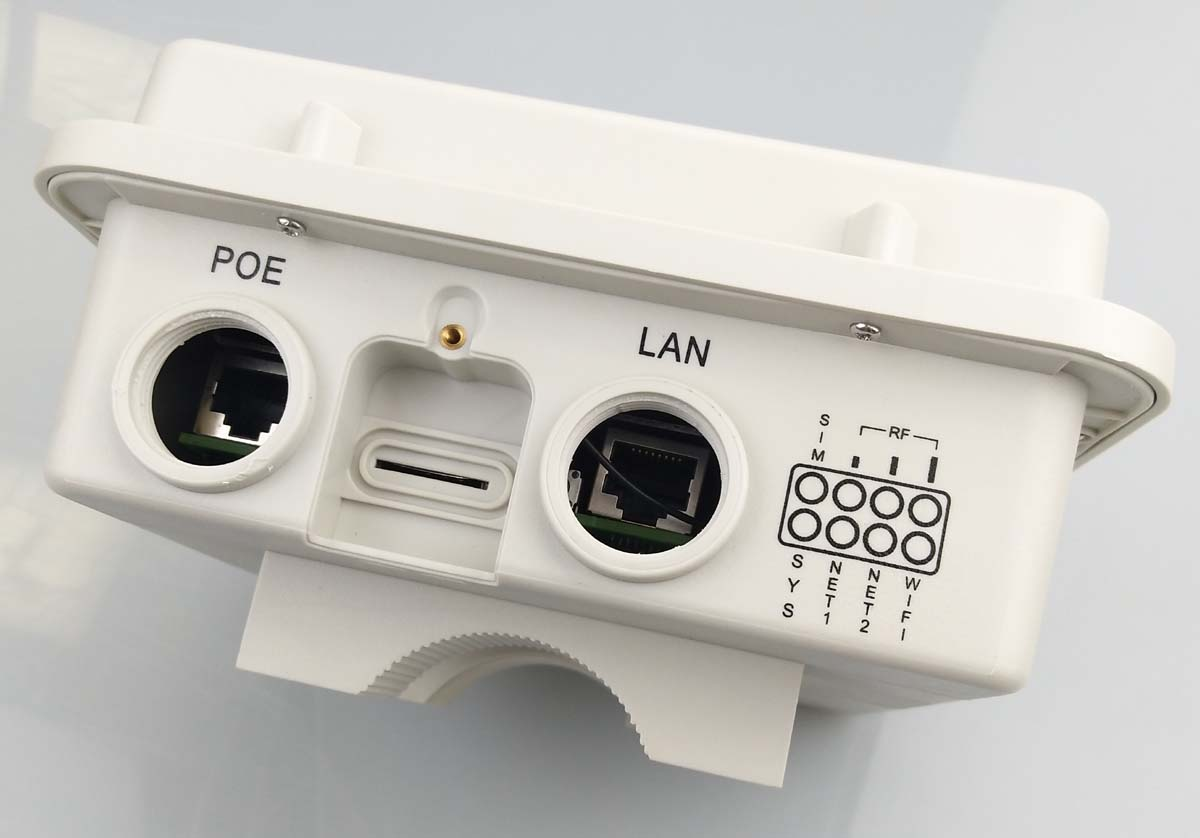

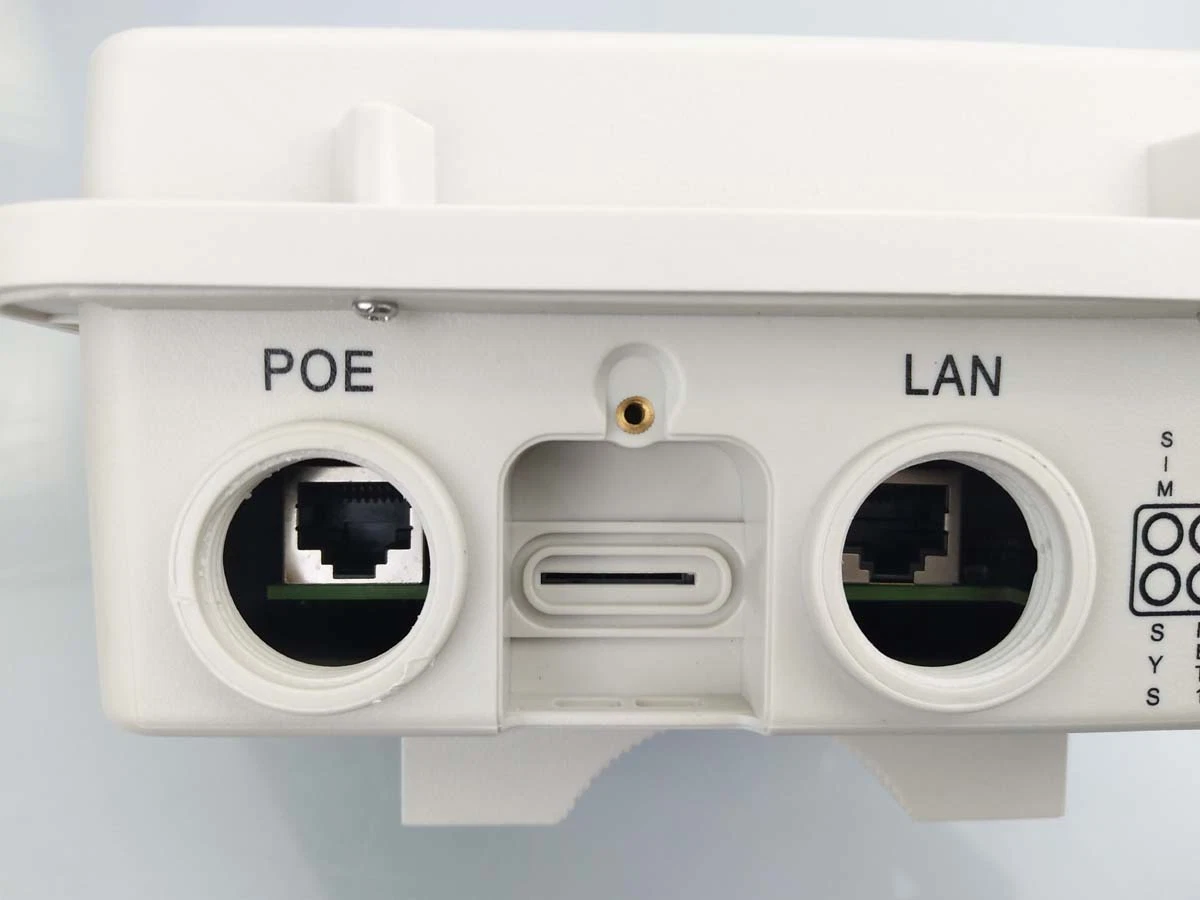

• 2 LAN ports;
• POE power supply, Supported POE output via LAN 2 port;
• With SIM card slot;
• Remote management platform;
• Waterproof,dustproof, lightning protection;
• Firmware version: Openwrt;

Item
Product specification
CPU
MTK7620
MEMORY
FLASH 16MByte, DDR2 64MByte
Embedded system
Openwrt
Network
FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI
WIFI 802.11 b/g/n, 300Mbps
Data rate
4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps)
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps
GPRS DL/UL 85.6Kbps
WIFI Tx Power
14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity
<-70 dBm@54Mpbs
2G/3G/4G Transmitting Power
GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)
GPS
GPS/GLONASS,Protocol: NMEA
WIFI Frequency
2.4G

Hardware interface
2*LAN 10/100Mbps
RF
Built-in WIFI, 4G LTE, GPS antenna
Security Encryption
Support WEP,WPA,WPA2 encryption ways
Protocol
PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP
LED Indicator
"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM
Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button
Reset
Standard Power
POE input: DC 18V/1A
Power Supply
POE input: DC 5~48V
Working current
2A (Max Current)
Temperature
Operating Temperature -40~+80ºC
Storage Temperature -45~+85ºC
Environment humidty
95%
Case
Waterproof plastic shell, IP67
Size
172mm*165mm*90mm
Weight
554g
