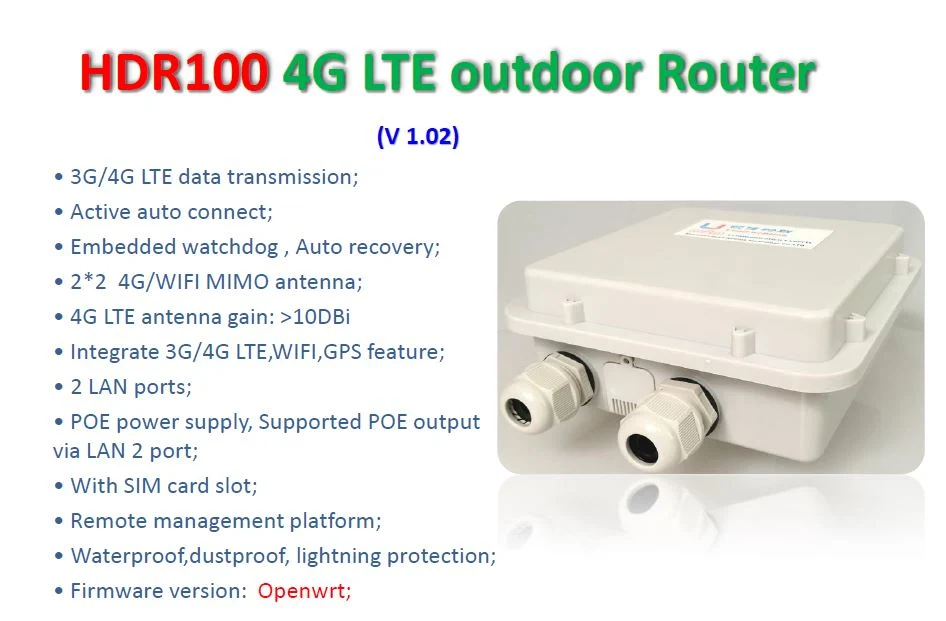

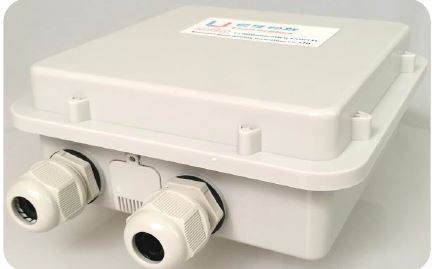

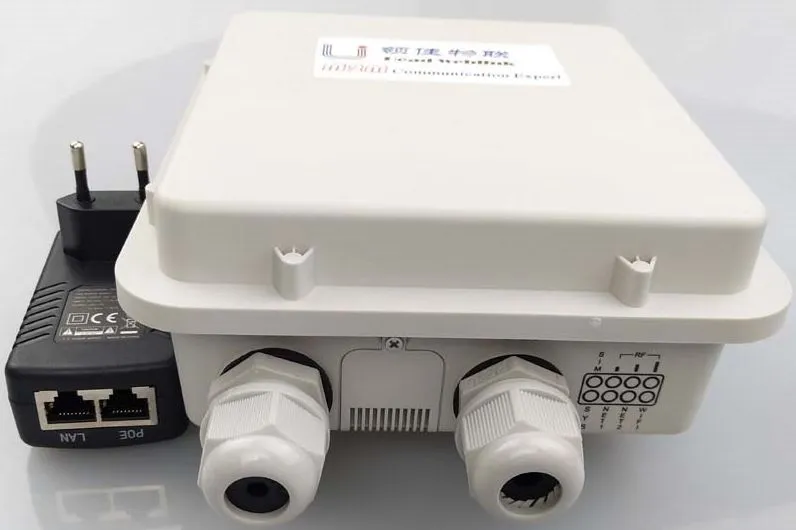

2 LAN Port Waterproof and Dustproof Industry 4G Router Outdoor Wireless Router
2 Lan Port Waterproof And Dustproof Industry 4G Router Outdoor Wireless Router 1. Support 3G or 4G LTE network.2. MIMO RF dual antenna 3. Waterproof and dustproof. Can be mounted on roof.4. Lightning protection 5. With SIM card slot.6. Automaticlly dial-up access to the Internet after boot .7. One......
Send Inquiry
Product Description
2 Lan Port Waterproof And Dustproof Industry 4G Router Outdoor Wireless Router
1. Support 3G or 4G LTE network.
2. MIMO RF dual antenna
3. Waterproof and dustproof. Can be mounted on roof.
4. Lightning protection
5. With SIM card slot.
6. Automaticlly dial-up access to the Internet after boot .
7. One ethernet interface.It can be extended 100m long of the ethernet cable.
8. Built-in dial-up parameters more than 200 operators.
9. We can customize 3G/4G LTE frequency bands for customers.
Frequency band
* HDR1004GFO
VersionC (China)
TDD-LTE:B38,B39,B40.B41
FDD-LTE:B1,B3,B7,B8
TD-SCDMA:bA/bB
GSM:900MHz/1800MHz
VersionE(EU-Asia)
LTE-FDD:B1,B3,B7,B8,B20
LTE-TDD:B38,B40
WCDMA:900/2100MHz
GSM:900/1800MHz
Version A (Latin-American)
LTE-FDD:B2,4,5,17 WCDMA 850/1900MHz
* HDR1003GWO+
Version A
WCDMA 850/1900MHz
GSM 850/900/1800/1900MHz
Version E
WCDMA 900/2100MHz
GSM 850/900/1800/1900MHz
WCDMA:850/1900MHz 900/2100MHz
*Note.
Also,we can provide customized frequency band.
Data rates
4G Version 100Mbps DL/ 50Mbps UL DL150Mbps/UL50Mbps
3G Version 14.4Mbps DL/5.76Mbps UL
Power supply
12~24v POE supply
Conditions
Temperature:Normal -30ºC~+70ºC
LED
Power supply status
Network status
LAN Status
The installation instructions:

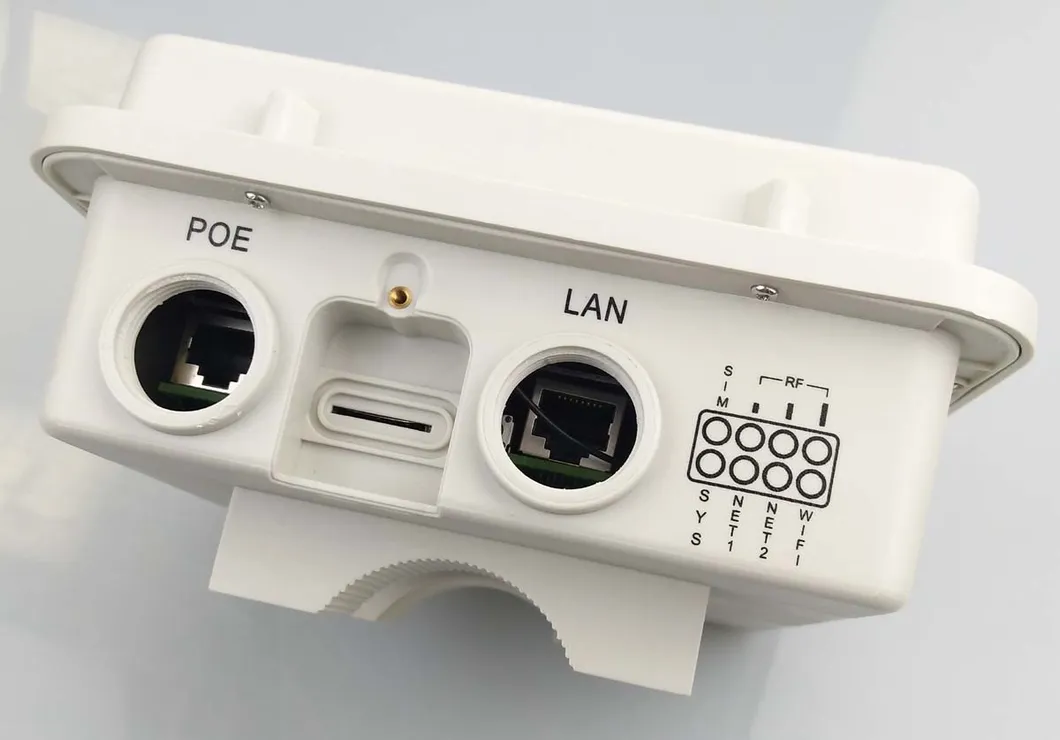

A.Take out the wireless router, as shown below, insert the USIM card in
the card slot, when heard "Kacha", it showed that the USIM card was
insert successfully and put the waterproof sticker.
B. Use UTP-five categories connect WAN/POE port of indoor section
and LAN port of outdoor section.ma shi
C.Place the outdoor section in the open air, face and fix to the base
station.
D. Connect the power supplier then the router will turn on automatically
and finish the initialization in about 1-2 minutes
Our Services
One Year Guarantee Period
| Network mode | 3G version | WCDMA,GPRS,GSM | |
| EVDO,CDMA 1X | |||
| 4G Version | FDD LTE, TDD LTE,HSPA+,WCDMA,GPRS,GSM | ||
| Data rates | |||
| 4G LTE router | LTE FDD | DL 100Mbps~300Mbps, UL 50Mbps | |
| LTE TDD | DL 50Mbps, UL 25Mbps | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps | ||
| TD-SCDMA | DL 2.8Mbps, UL 2.2Mbps | ||
| GPRS | Max. 85.6Kbps(DL), Max. 85.6Kbps(UL) | ||
| LAN | 2* LAN Port, 100Mbps | ||
| Hardware interface | |||
| SIM card | 1*SIM card, Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection | ||
| Power supply | POE power supply, +12V/1.5A~+48V/0.5A | ||
| LED Indicator | SYS, SIM,RF,NET1,NET2,WIFI | ||
| Antenna | Built-in 2*2 4G/WIFI MIMO antenna; GPS antenna(Optional). | ||
| Software | |||
| Security Encryption | Support WEP,WPA,WPA2 encryption ways | ||
| Watchdog | Embedded watchdog , System auto recovery; | ||
| Data link | Active auto connect; | ||
| Protocol | PPTP,L2TP,IPSEC VPN,Open VPN,GRE,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH,SNMP etc. | ||
| Data backup | Double backup, keep data safe and reliable | ||
| Operating system | OpenWRT | ||
