2.4GHz and 5GHz Dual Band Router with 1000Mbps 5LAN and 1 Wan Router with Dual SIM Card Slot
HDRM200 4G LTE RouterHDRM200 six LAN ports industrial Gigabit router integrated machine, is designed for global market.It provides 4G LTE/WIFI/GPS/SD storage funtion.2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, F......
Send Inquiry
Product Description

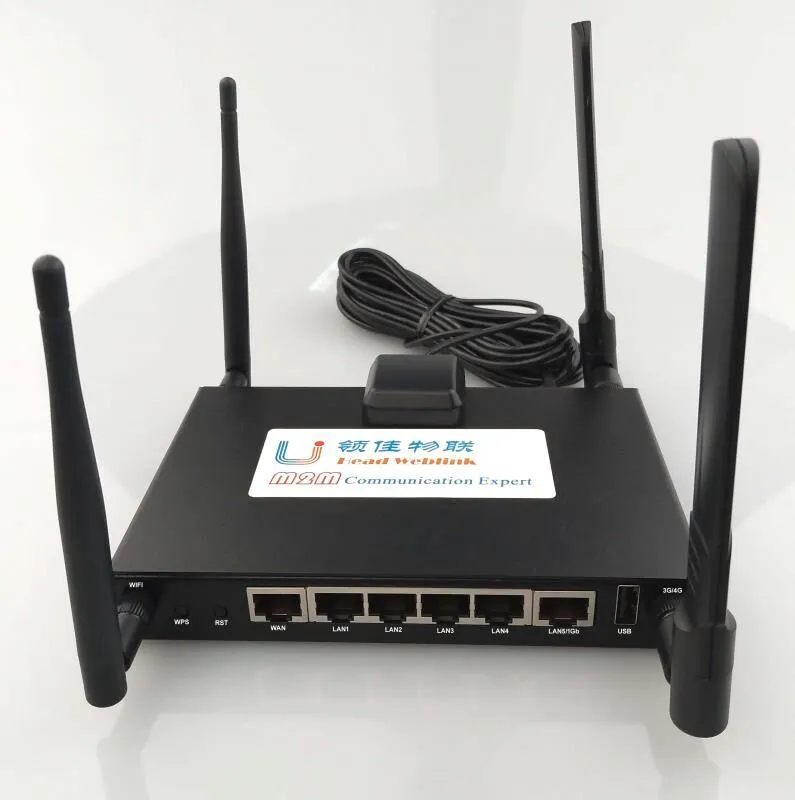

HDRM200 4G LTE Router
HDRM200 six LAN ports industrial Gigabit router integrated machine, is designed for global market.It provides 4G LTE/WIFI/GPS/SD storage funtion.2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, Financial self-service terminal, Express cabinet ,Power Ammeter and other remote device management application. In order to achieve permanent online, some key features such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDRM200 industrial router, making it can be used in any environment of worldwide.Provides one WAN port,four fast ethernet ports,one Gigabit LAN port.Support VLAN feature.
Any question you can contact me:
+86 18565785009;
| Item | Specification |
| Size/Weight | 155*106*23mmmm / 480g |
| Temperature | Normal -30ºC~+70ºC, Restricted -40ºC~+80ºC |
| Power Supply | +5V~+48V |
| Power Saving | Typical 90mW, in sleep mode |
| Max. Data speed | 4G 100~300Mbps DL/ 50Mbps UL 3G 42Mbps DL/5.76Mbps UL 2G 85.6Kbps DL/42.8Kbps UL Wifi 802.11AC 1Gigabit |
| Hardware | Daul SIM card slot, Six LAN |
| Interface | ports,USB,RS232,RS485,GPIOs |
| Main | STK |
| Function | FAX: Group 3 Class 1 Firmware update ( UI or FOTA) |
| Wifi | 2.4G/5.8GHz |
| Industrial Quality | Industrial designing, including wide temperature range, wide voltage Range and ESD, making it stable and reliable; |
| Multi-Interface | Provide 1 WAN/5 LAN/Console(RS232/RS485) /USB communication interface. |
| Multi-band Multi-mode | Support global frequency bands. Support dual SIM card switch.Support GPS location. |
| Storage Memory | Support SD card storage |
| System | Linux or Openwrt |
2G/3G/4G Frequency bands | Version C LTE TDD. B41 |
Application:
CeBIT Show Germany CeBIT Show In 2016;
NETCOM show in Brazil in Y2017/Aug.

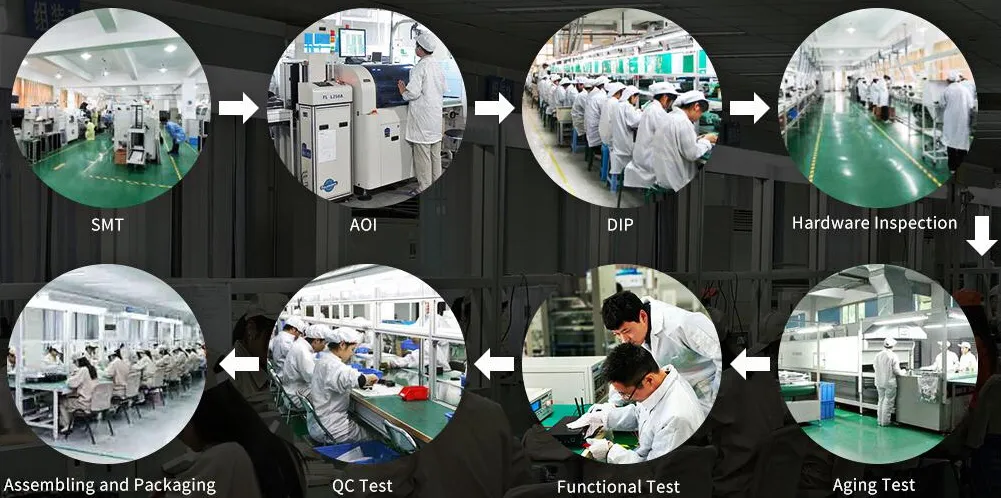

FACTORY:
