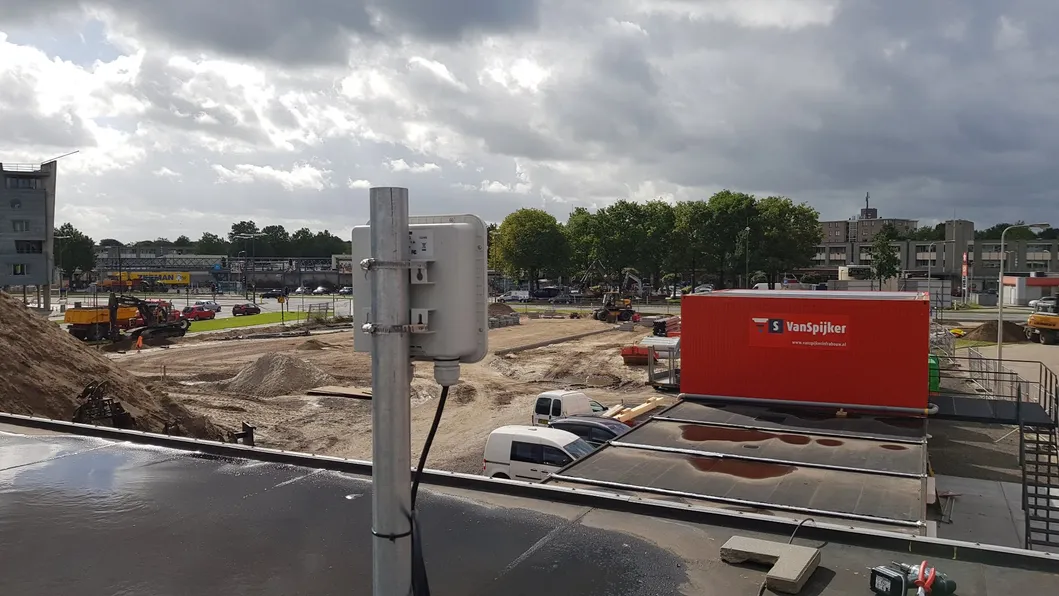

192.168.1.1 ODU with WiFi/GPS

• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2  4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 2 LAN ports;
• POE power supply, Supported POE output via LAN 2 port;
• With SIM card slot;
• Remote management platform;
• Waterproof,dustproof, lightning protection;
• Firmware version:  Openwrt;

Product feature.
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2  4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 2 LAN ports;
• POE power supply, Supported POE output via the second LAN port;
• With SIM card slot;
• Remote management platform;
• Firmware version:  Openwrt;
• Waterproof,dustproof,lightning protection. Protection level, IP67
• Operating Temperature.  -40ºC -- +75ºC
• Operating humidity. 5%--95%


Frequency bands
* 4G LTE router.
 HDR100  L2/4G Series
  Version A
      LTE FDD. B2,4,5,17
      UMTS. 850/1900MHz

  Version E
      LTE FDD. B1,3,7,8,20
      LTE TDD B38, B40
      UMTS. 900/2100MHz
      GSM. 900/1800MHz

  Version C
      LTE FDD. B1,3,7,8
      LTE TDD B38, B39, B40, B41
      UMTS. 900/2100MHz
      TD-SCDMA. 1880~1920MHz & 2010~2025MHz
      GSM. 900/1800MHz

  Version JC
      LTE FDD. B1,B3,B8,B18,B19
      LTE TDD. B41
      UMTS. B1,B6,B8
      GSM. 900/1800MHz

  Version JE
      LTE FDD. B1,B8
      UMTS. B1,B8
      GSM. 900/1800MHz

* 3G router.
   HDR100  L2/3G (WCDMA)
WCDMA. 850/1900MHz  & 900/2100MHz
        GSM. 850/900/1800/1900MHz

    HDR100  L2/3G  (EVDO).
       EVDO 800MHz &  800/1900MHz
*Note.
      We can provide customized frequency bands for customers.

 Data rate

4G LTE router.
  HDR100 L2/4G
         FDD LTE. DL,100Mbps  UL,50Mbps
        TDD LTE. DL,50Mbps    UL,25Mbps
        WCDMA. DL 42Mbps   UL5.76Mbps
        TD-SCDMA.  DL 2.8Mbps  UL 2.2Mbps

Or
LTE Category 4 - 150 Mbps (DL)
LTE Category 4 - 50 Mbps (UL)

3G router.
1). HDR100 L2/3G (WCDMA)
  WCDMA. DL 14.4Mbps, UL 5.76Mbps

2).HDR100 L2/3G (EVDO)
  EVDO. DL 3.1Mbps, UL 1.8Mbps
