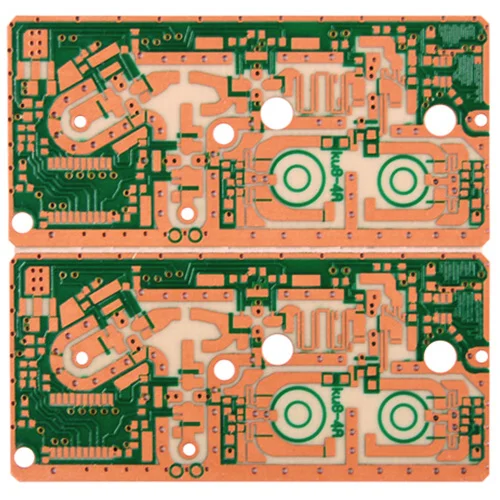

Key Considerations When Designing High Frequency PCBs

Designing a High Frequency PCB isn't just about selecting the right material—it's about understanding how every detail impacts signal integrity. Whether you're an engineer developing RF circuits or a product manager sourcing PCBs for high-speed devices, knowing the key design factors can save time, cost, and performance headaches.

1. Choose the Right Substrate Material

Material selection is the foundation of high-frequency performance. Standard FR4 simply won't do the job at high frequencies due to its higher dielectric losses and poor consistency.

Look for materials with:

Stable dielectric constant (Dk)

Low loss tangent

Tight thickness tolerance

Popular options include Rogers, Teflon (PTFE), and other low-loss materials.

2. Pay Attention to Trace Geometry

At high frequencies, PCB traces behave like transmission lines. This means impedance control is critical. Factors like trace width, spacing, and the dielectric height above the reference plane all affect impedance.

Use controlled impedance design techniques to ensure signals don’t reflect or degrade as they travel through the board.

3. Keep Via Usage to a Minimum

Every via adds inductance and introduces signal delay. In high-frequency boards, this can lead to signal integrity problems. Where possible, use fewer vias, or design with via-in-pad technology or blind/buried vias to reduce signal distortion.

4. Watch Out for Crosstalk and EMI

Signal traces placed too closely can interfere with each other—especially at high speeds. Use ground planes, maintain proper trace spacing, and consider shielding techniques to minimize crosstalk and electromagnetic interference (EMI).

5. Don’t Ignore Thermal Management

Some high-frequency materials can be sensitive to heat. Ensure proper thermal reliefs, via stitching, and heat dissipation strategies are in place to keep performance stable over time.

6. Partner with an Experienced PCB Manufacturer

Designing and manufacturing High Frequency PCBs requires more precision and expertise than standard boards. Work with a supplier who understands the intricacies of high-speed board fabrication, impedance testing, and material handling.

High Frequency PCB design is both a science and an art. With the right materials, careful layout, and a knowledgeable manufacturing partner, your project can achieve high signal fidelity and long-term reliability.
