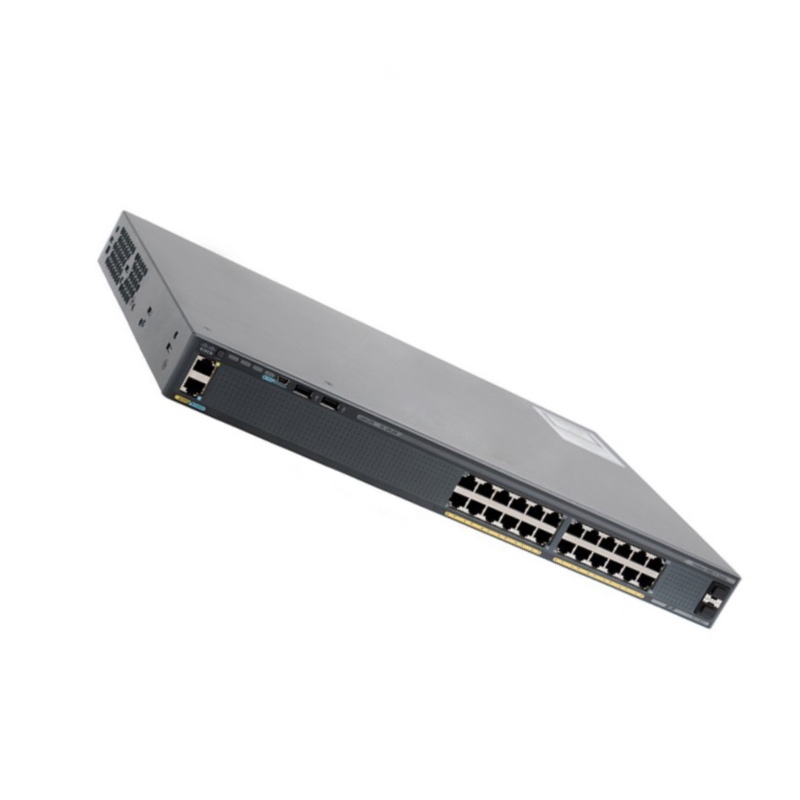

New Original 2960X Series 24Ports Gigabit Switch WS-C2960X-24TS-LL
Products Description WS-C2960X-24TS-LLProduct overviewCisc0® Cata lyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisc0 IOS&re......
Send Inquiry
Product Description
Products Description

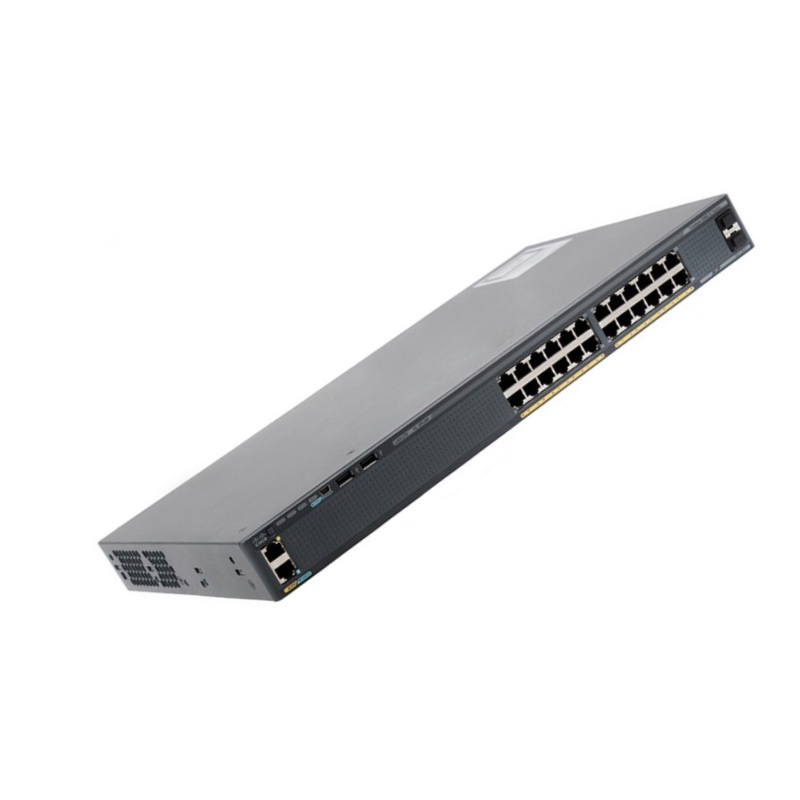

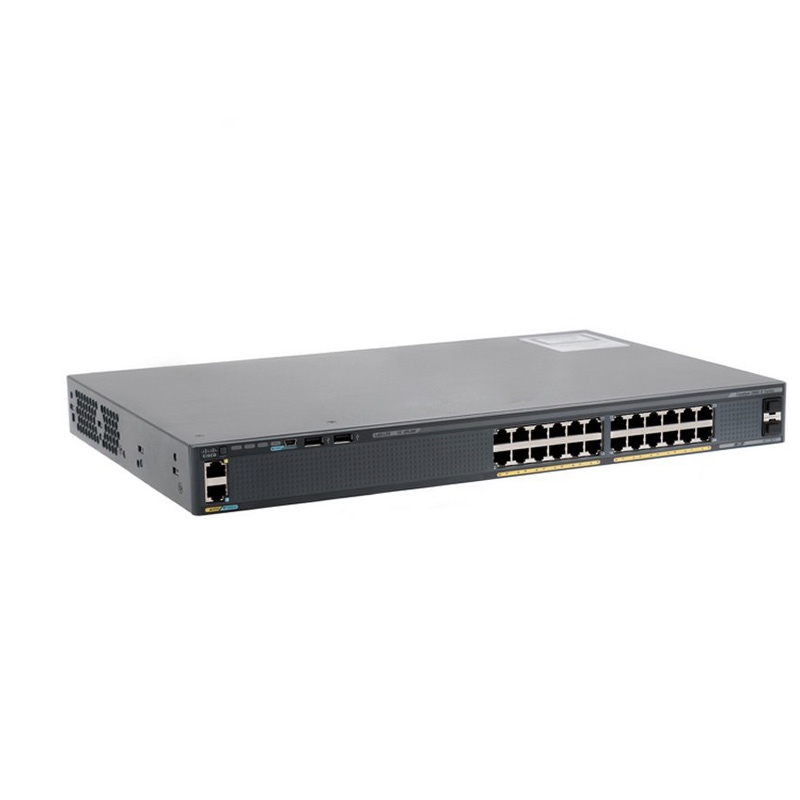

WS-C2960X-24TS-LL
Product overview
* 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
* 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
* PoE+ support with a power budget of up to 740W and Perpetual PoE
* Cisc0 IOS LAN Base[1] or LAN Lite1 and Cisc0 IOS IP Lite[2]
* Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access
* Network management with Cisc0 Prime®, Cisc0 Network Plug and Play, and Cisc0 DNA Center
* Stacking with FlexStack-Plus and FlexStack-Extended
* Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
* Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
* Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
* Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty(E-LLW)
* Resiliency with optional dual field-replaceable power supplies2
Helpyou Group.,lTD has been operating in China over a decade. We are one of the largest suppliers of Polycom, AXIS, DELL,Grandstream, Fortinet, Ruckus,Avaya and Aruba and so on, including networking equipments like router, switches, IP Phone,firewall,servers, video conferencing,wireless access point and CCTV camera etc.
We have en experienced team and rich experience in trading all over the world,should you be interested in building business relationship with our company, please contact us by email,phone, skype and send us your inquiry.
Our Core value is "Service is life". All we do is to help our partner to succeed.
Cisc0® Cata lyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisc0 IOS® Software and support simple device management as well as network management. The Cisc0 Catalyst 2960-X and 2960-XR Series provide easy device onboarding,configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
Product Highlights
Cisc0 Catalyst 2960-X and 2960-XR Series Switches feature:* 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
* 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
* PoE+ support with a power budget of up to 740W and Perpetual PoE
* Cisc0 IOS LAN Base[1] or LAN Lite1 and Cisc0 IOS IP Lite[2]
* Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access
* Network management with Cisc0 Prime®, Cisc0 Network Plug and Play, and Cisc0 DNA Center
* Stacking with FlexStack-Plus and FlexStack-Extended
* Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
* Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
* Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
* Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty(E-LLW)
* Resiliency with optional dual field-replaceable power supplies2
Product Details
Product | WS-C2960X-24TS-LL |
Product Description | Catalyst 2960-X 24 GigE. 2 x 1G SFP. LAN Lite |
Brand | Cisc0 |
Product Line | Cisc0 Catalyst |
Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Qty | 2 |
Comments | Management |
Connector Type | Type A |
Type | USB |
Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
Connectivity Technology | Wired |
Data Transfer Rate | 80 Gbps |
Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
Compliant Standards | IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
MAC Address Table Size | 16K entries |
Max Units In A Stack | 8 |
Subcategory | Network hubs and switches |
Power Over Ethernet (PoE) | No |
Manageable | Yes |
Form Factor | Desktop, Rack-mountable |
Jumbo Frame Support | 9216 bytes |
Subtype | Gigabit Ethernet |
Frequency Required | 50/60 Hz |
Nominal Voltage | AC 120/230 V |
Width | 17.5 in |
Depth | 11 in |
Height | 1.8 in |
Weight | 8.16 lbs |
Clients Review
We got many reviews from partner
Our company
Helpyou Group Co.,Ltd
Helpyou Group.,lTD has been operating in China over a decade. We are one of the largest suppliers of Polycom, AXIS, DELL,Grandstream, Fortinet, Ruckus,Avaya and Aruba and so on, including networking equipments like router, switches, IP Phone,firewall,servers, video conferencing,wireless access point and CCTV camera etc.
We have en experienced team and rich experience in trading all over the world,should you be interested in building business relationship with our company, please contact us by email,phone, skype and send us your inquiry.
Our Core value is "Service is life". All we do is to help our partner to succeed.
Our teams&Customer Visit
Customer Visit: We have got many visitors from all over the world, they come from different countries such as USA, UK, Italy, India, UAE, Thailand, Pakistan, Lagos, Bahrain, Saudi Arabia and so on
Our Team:Young and Engeneratic with professional skills, which provide our partners great services
Payment Methods
1.T/T,Western Union, Alipay and Money Gram will be accept.Faster payment will help you to get the items earlier.
2.Remittance bank charges shall be borne by the remitter,and the collecting bank fees shall be borne by the beneficiary.
3.As the market changes and price fluctuation, please kindly pay the order within 3 days.
Our Team:Young and Engeneratic with professional skills, which provide our partners great services

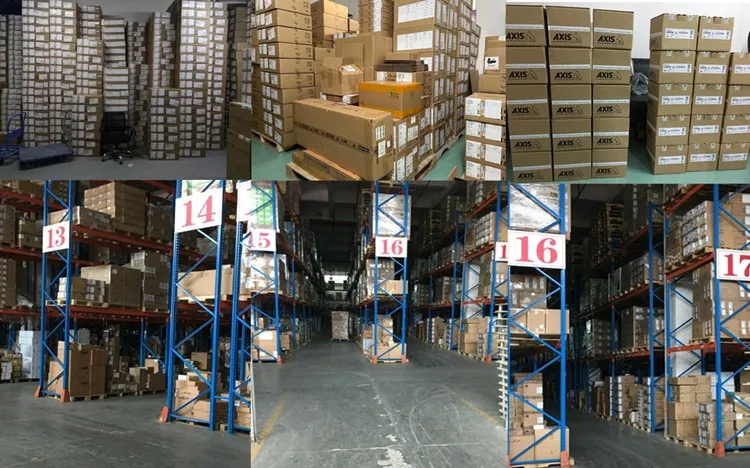

Our Inventory
