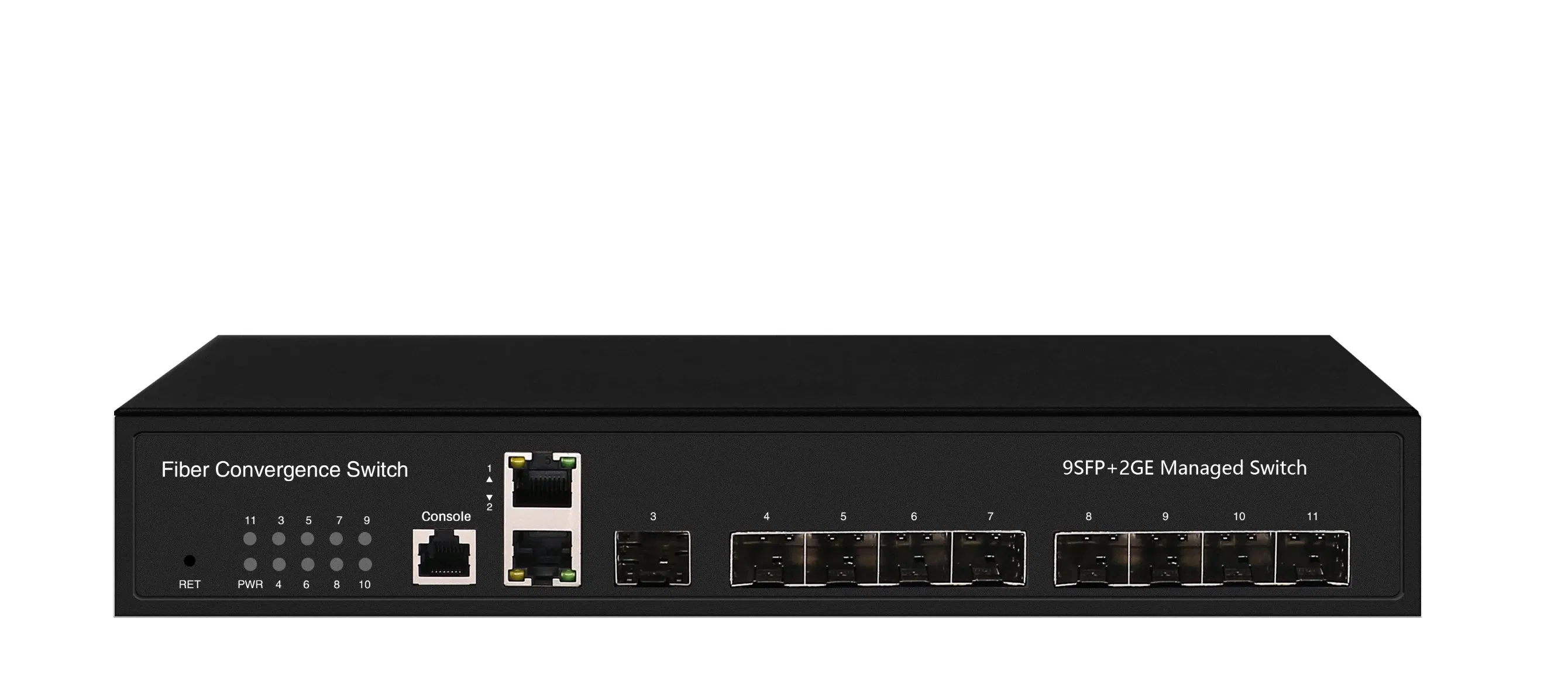

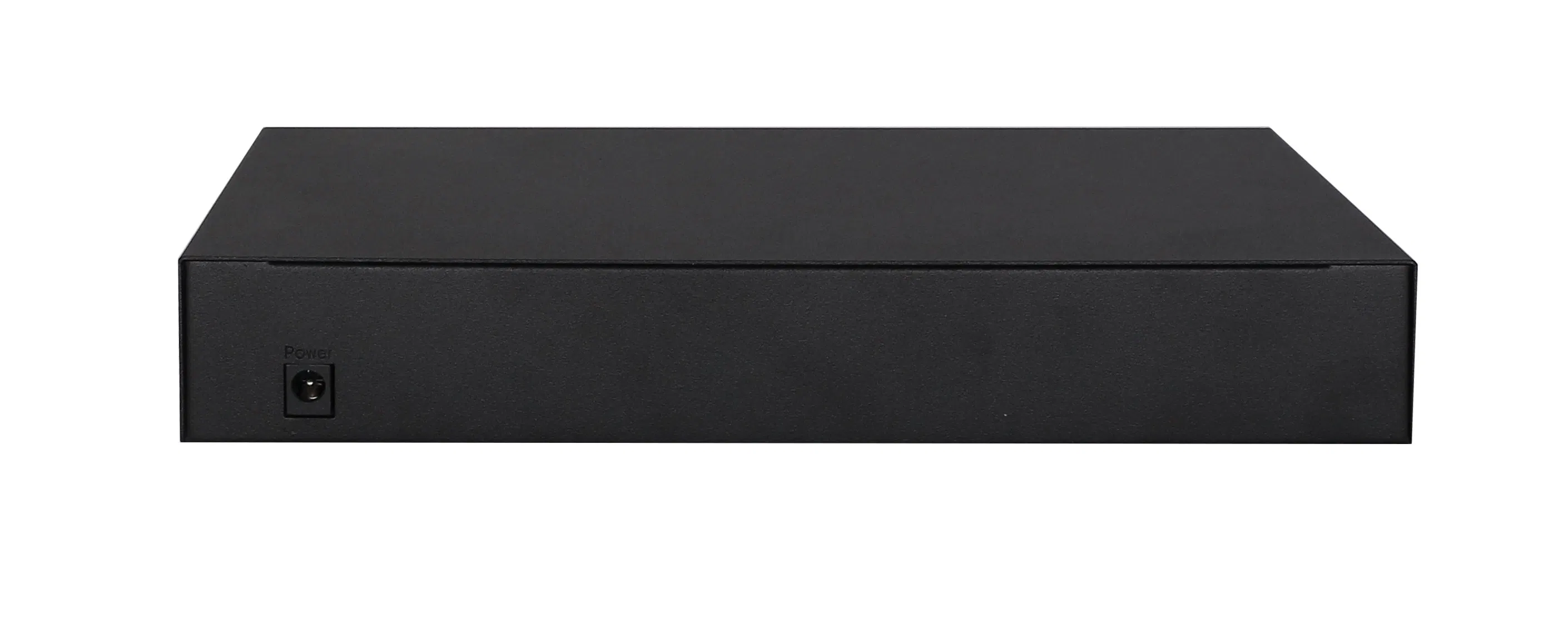

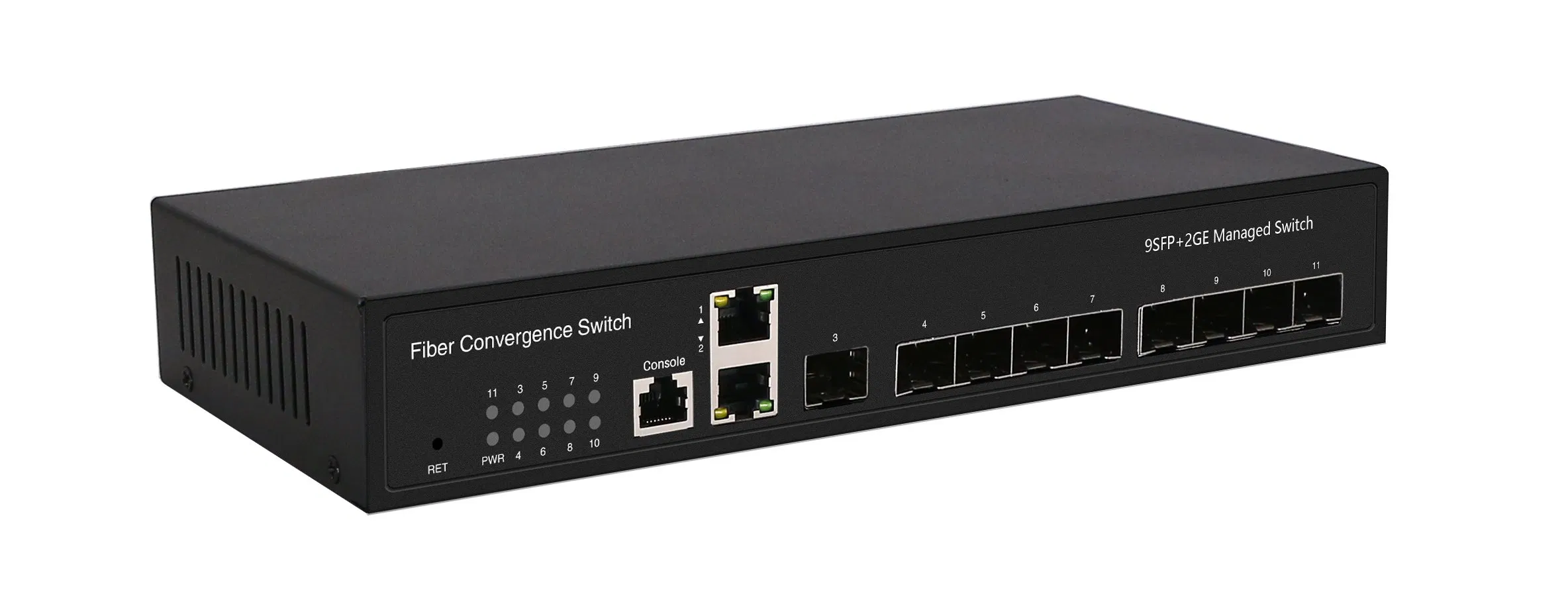

Managed 9 SFP+2 Gt Fiber Network Switch
2GE+9SFP Managed Fiber Switch Hardware SpecificationModelSW0200G-9SPort2*10/100/1000M TX9*1000M SFP Fiber portsManagement port1*ConsoleReset1*resetbandwidth56GbpssPacket forwarding40.32MppsCPU 500MHZRAM128MMAC8KFLASH16MtransmissionStore and forwardworking temperature0ºC~50ºCStora......
Send Inquiry
Product Description
| 2GE+9SFP Managed Fiber Switch Hardware Specification | ||
| Model | SW0200G-9S | |
| Port | 2*10/100/1000M TX | |
| 9*1000M SFP Fiber ports | ||
| Management port | 1*Console | |
| Reset | 1*reset | |
| bandwidth | 56Gbpss | |
| Packet forwarding | 40.32Mpps | |
| CPU | 500MHZ | |
| RAM | 128M | |
| MAC | 8K | |
| FLASH | 16M | |
| transmission | Store and forward | |
| working temperature | 0ºC~50ºC | |
| Storage temperature | -40ºC~70ºC | |
| Operating humidity | 10%~90% Non coagulation | |
| Storage humidity | 5%~95% Non coagulation | |
| Product size | 225*105*35mm | |
| Packing size | 305*208*55mm | |
| Weight | 0.7/1 | |
| Power in | DC 12V 2.5A | |
| Power | ≤20W | |
| WEB software function (Acceptance of Customization Function Development) | ||
| standards | IEEE 802.3x | |
| IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z | ||
| IEEE 802.3ad | ||
| IEEE 802.3q ,IEEE 802.3q/p | ||
| IEEE 802.1w,IEEE 802.1d ,EEE 802.1S | ||
| MAC Address | 8K MAC addresses ;MAC address learning and aging | |
| VLAN | Support port based VLAN | |
| Up to 4096 VLAN | ||
| Voice VLAN ,can configure QoS for voice data | ||
| 4k VLANS;Port-based VLANs;802.1Q VLAN | ||
| Spanning Tree | STP(Spanning Tree Protocol) | |
| RSTP/MSTP( Rapid Spanning Tree Protocol) | ||
| EPPS ring network protocol | ||
| EAPS ring network protocol | ||
| 802.1x argumentation agreement | ||
| Link Aggregation | Max 8 aggregation groups TRUNK, each supports 8 ports | |
| Static aggregation and dynamic aggregation | ||
| Port Mirror | Many-to-one port mirroring | |
| Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery | |
| isolation | Support downlink ports isolated from each other and communicate with upstream port | |
| Port flow control | Half duplex based back pressure control | |
| Full duplex based on PAUSE frames | ||
| line rate | Support port based input / output bandwidth management | |
| IP binding | Support static ARP | |
| Static routing | Support static routing | |
| IGMP Snooping | Support 256 layers of set table capacity | |
| IGMPv1/2/3MLDv1/2 Snooping | ||
| GMRP protocol registration | ||
| Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses | ||
| DHCP | DHCP Snoping | |
| Storm suppression | Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type | |
| Storm suppression based on bandwidth tuning and storm filtering | ||
| Security | Support 256 groups of ACL | |
| Teams that support 4 different priorities per port | ||
| User port+IP address+MAC | ||
| ACL based on IP and MAC | ||
| Security properties of port based MAC address quantities | ||
| Support system CPU self protection | ||
| QOS | 802.1p port queue priority algorithm | |
| Teams that support 4 different priorities per port | ||
| Cos/Tos,QOS sign | ||
| WRR (Weighted Round Robin),Weighted priority rotation algorithm | ||
| WRR,SP,WFQ,3 priority scheduling models | ||
| Support based on port, MAC, 802.1Q, DSCP classification | ||
| Port | Auto-MDIX ; Auto negotiation | |
| system maintenance | Upgrade package upload | |
| system log view | ||
| Support to upload / download configuration files through WEB | ||
| Support multiuser management | ||
| WEB restore factory configuration | ||
| Management and maintenance | WEB NMS | |
| CLI Telnet, TFTIP Console, management based on | ||
| Remote configuration and maintenance using Telnet | ||
| SNMP V1/V2/V3;SSH V1/V2;RMON V1/V1 | ||
