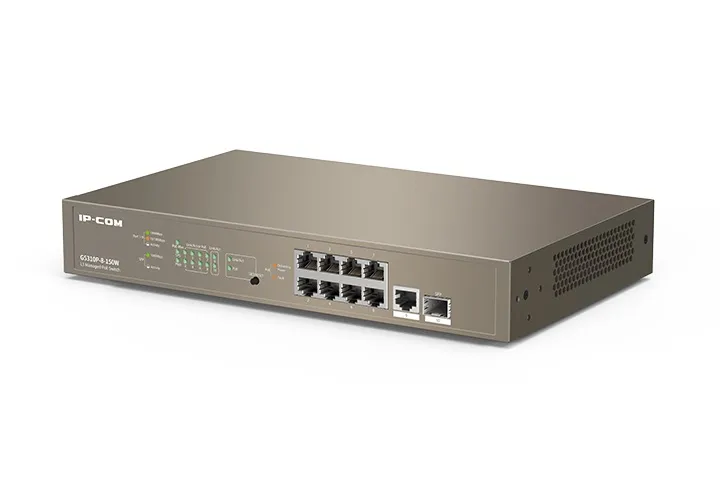

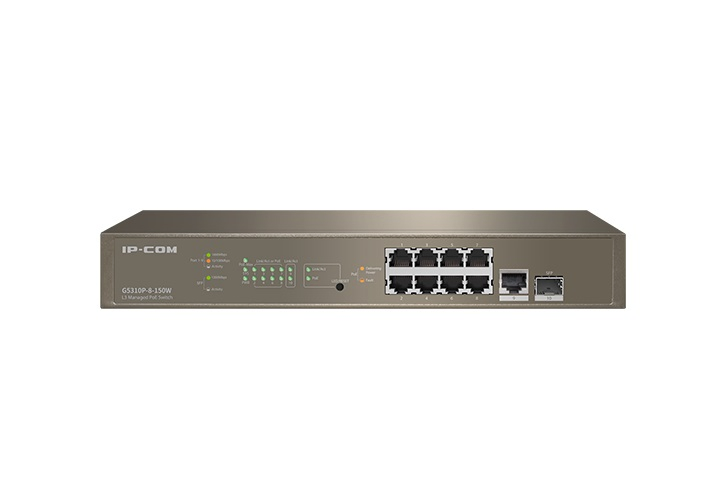

Layer3 8-Port Managed Gigabit Ethernet Poe Switch with 2 Gbe SFP Port
G5310P-8-150W is an IP-COM Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 9 10/100/1000 Mbps Base-T Ethernet ports and 1 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W. With an innovative hardware structure and software platform, i......
Send Inquiry
Product Description
G5310P-8-150W is an IP-COM Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 9 10/100/1000 Mbps Base-T Ethernet ports and 1 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses
Features:
Features:
- Supports Layer-3 static routing protocol, meeting the demand of the 3-layer networking environment
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards
- 8 x 10/100/1000 Base-T Ethernet ports (Data/Power), 1 x 10/100/1000 Base-T Ethernet ports (Data), 1 separate 1000 Base-X SFP ports
- 16 K MAC address table and MAC address auto-learning
- 12Mb large buffer
- Supports abundant services, such as static routing based on IPv4, DHCP Server, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
- Support to be managed by IP-COM IMS cloud platform
- Built-in 6 kV professional lightning protection power, 13 inch/1 u standard rack-mounted design
| Hardware specifications | |
|---|---|
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s,IEEE802.3af/at |
| LED indicators | One Link/Act or PoE LED indicator for each port One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device |
| Interfaces | 8 x 10/100/1000 Base-T Ethernet ports (Data/Power) 1 x 10/100/1000 Base-T Ethernet ports (Data) 1 x 1000 Base-X SFP ports (Data) |
| Lightning protection | Port: 6kV Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 24Gbps |
| Packet forwarding rate | 17.9Mpps |
| Buffer | 12Mbit |
| MAC address table | 16K |
| PoE power supply | Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply 1 2 4 5 +, and 3 6 7 8 - |
| Whole switch consumption | Whole switch consumption: <150W Maximum PoE output power: 130 W |
| Input voltage | 100-240V~ 50/60Hz |
| Dimensions/td> | 294 mm x 179.6 mm x 44 mm(L*W*H)< |
| Operating environment | Operating temperature: 0°C - 40ºC Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC,FCC,CE,RoHS |
| Software specifications | |
| PoE power supply management | Supports port PoE configuration and power supply with priority Supports PoE over-temperature protection Supports PoE scheduled management Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
| Security features | Supports ARP receiving limit Supports unknown MAC address discard Supports DoS attack defense Supports 802.1x security authentication Supports Radius authentication |
| VLAN | Supports IEEE 802.1Q VLAN Supports VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
| DHCP | Supports DHCP Relay Supports DHCP Snooping Supports Option 82 policy configuration |
| L3 Routing | Supports VLAN-based routing Supports IPv4 static routing Supports static ARP |
| Port aggregation | Supports static aggregation Supports LACP dynamic aggregation |
| Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol) Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
| Multicast | Supports IGMP Snooping V1/V2/V3 Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| QoS | Supports SP (Strict Priority) Supports SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queue service quality mapping |
| ACL | Supports MAC ACL Supports IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports configuration import and export |
| Management and maintenance | Supports Telnet configuration, Console port configuration Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert Detection Supports Cloud management Support visual management of LAN |
