Industrial Poe Switch Web Managed 2SFP+8ge Tx Port Enable/Disable Poe Port

Managed Industrial POE Switch
8x10/100/1000Base-T & 2 x 1000Base-Fx GE SFP-P1

System Design

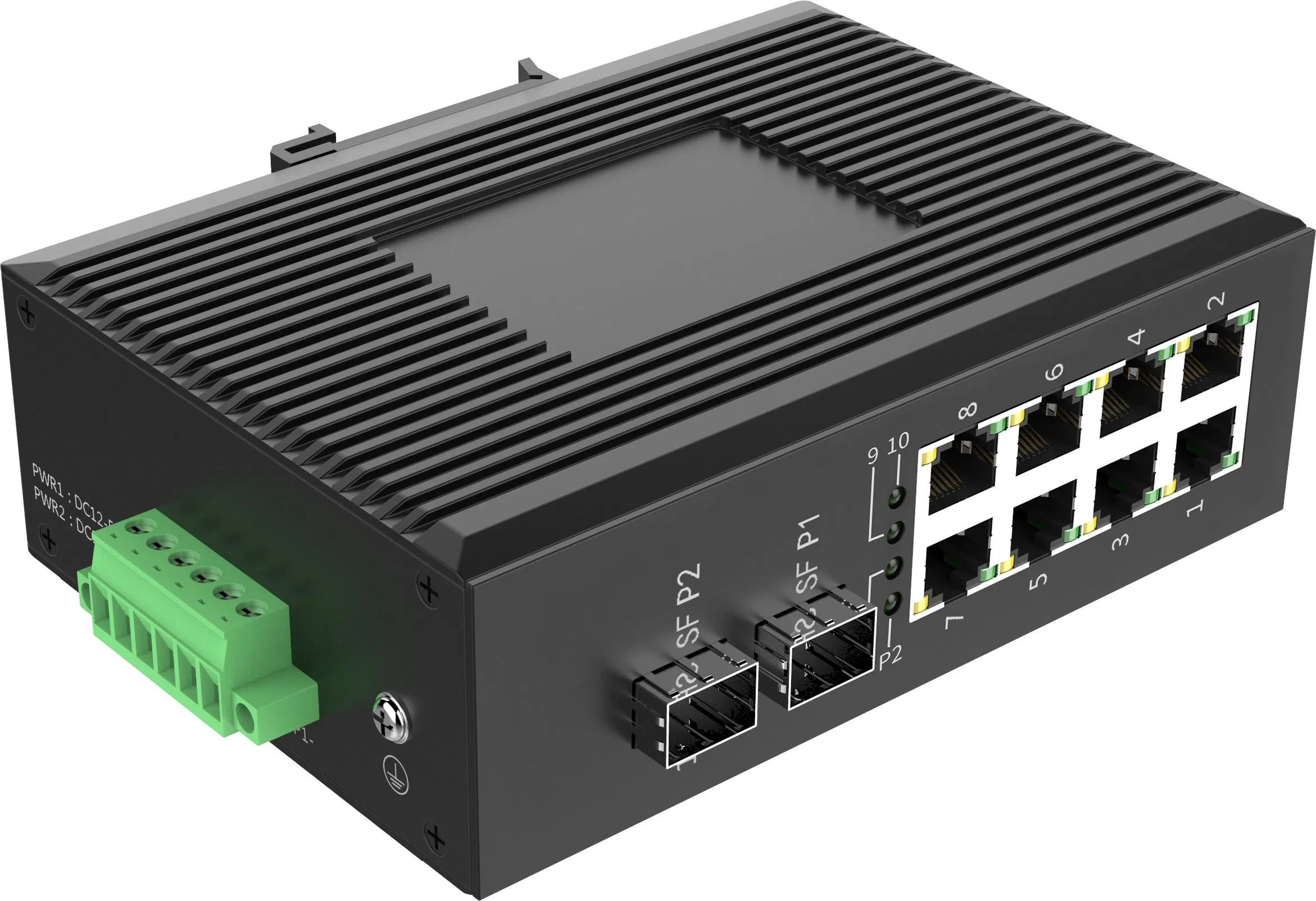

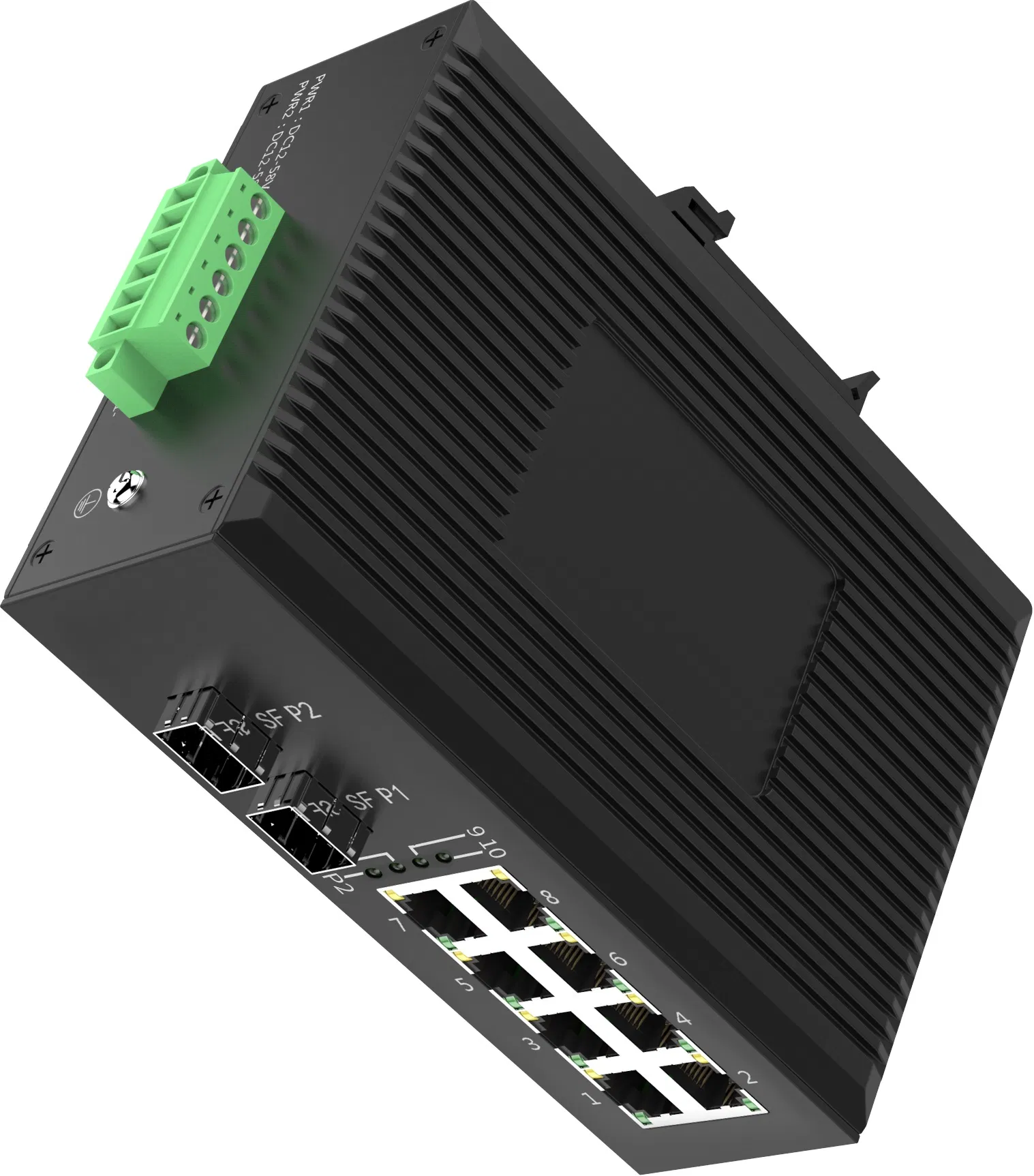

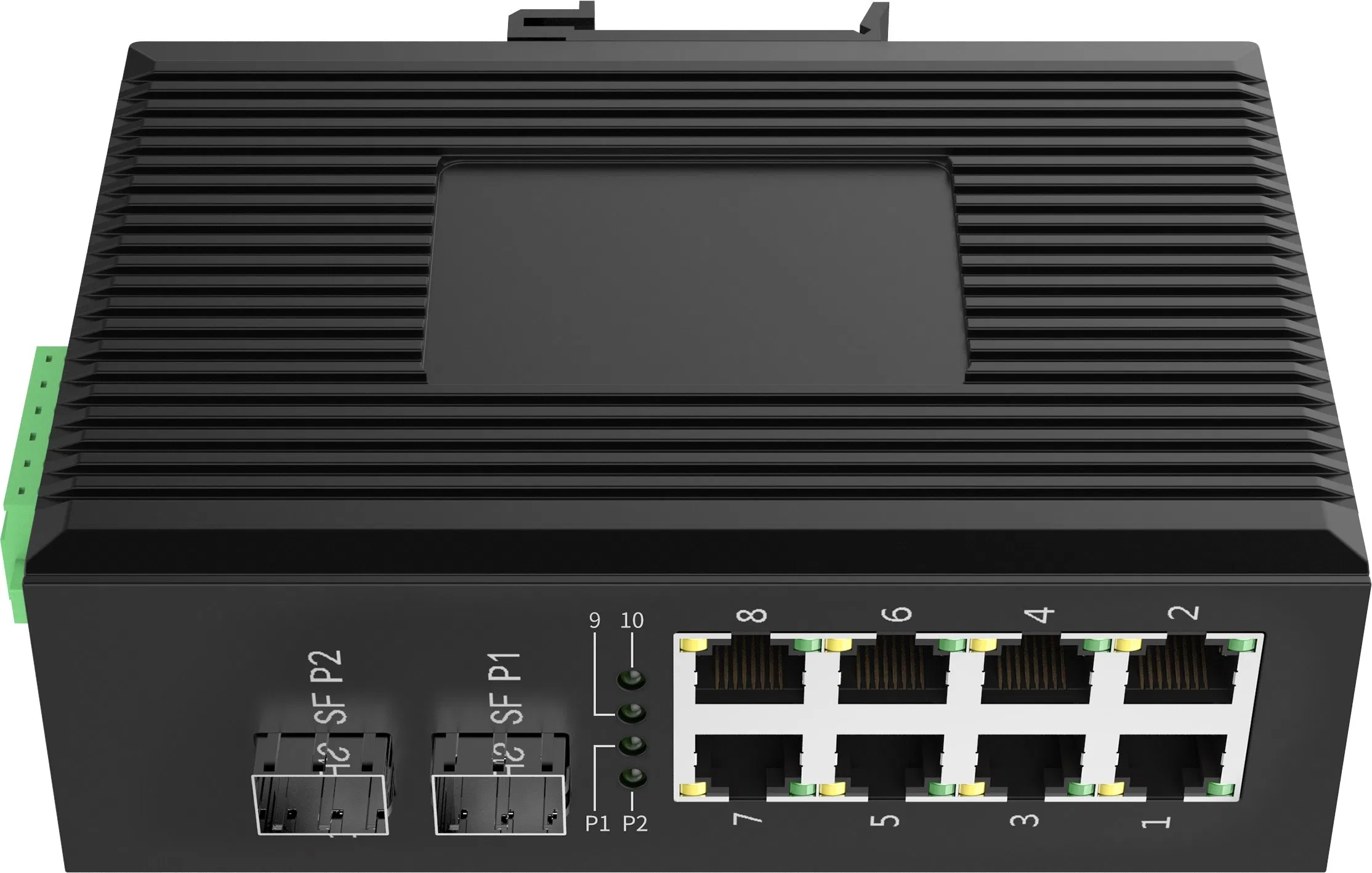

The FT-2F8E-G-SFP-P1 is a Standard Managed Industrial Switch, it supports 8 10/100/1000Base-TX POE/PSE ports and 2 1000Base-FX Fiber port (GE SFP slot).
It supports LFP function, easy to check the network connection status, it also support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input(48VDC), -40 to 85°C working temperature.
The switch support IEEE802.3, IEEE802.3u/ IEEE802.3z with 10/100/1000/M, full/half-duplex, and
MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.

Features
• Support 8 10/100/1000Base-TX POE/PSE ports and 2 1000Base-FX SFP fiber ports
• Management standards :IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP,
SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, SNTP Server/Client
• MIB:MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB,
RSTP MIB, RMON MIB Group 1, 2, 3, 9

• Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE 802.1D-2004 STP
IEEE 802.1w Rapid STP, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.3ad
• Ethernet port support 10/100/1000M self-adaption
• Support LFP (Link Fault Pass-Through)
• Support huge increase in packet mode
• DC48V power input, reverse connection protection
• IP40 protect grade, high strength iron shell, DIN Rail installation
•  Industrial grade 4 design


Specifications
General Technology                                          Interface
Standard: IEEE802.3, IEEE802.3u,                    RJ45 port: 10/100/1000Base-TX Self-adaption
IEEE802.3x, IEEE802.3z                                    Half/full duplex and MDI/MDI-X auto detect
Flow control: IEEE802.3x flow control,              Fiber port: 1000Base-FX, GE SFP
back press flow control
POE Specification
POE Standard :Supports both IEEE802.3af and IEEE802.3at
Single POE port power output:
Max.15.4 watts (IEEE802.3af)
Max.30.watts (IEEE802.3at)
POE port auto detect af/at at devices
Power pin Assignment 4/5+,7/8-

Exchange Attribute                                    Transmission Distance
Forward speed: 7.4MPPS                            Twisted cable: 100M (standard CAT5/CAT5e cable)
Transmit mode: store and forward                Multi-mode fiber : 850nm / 550m (OM1 OM2)
System exchange bandwidth: 10Gbps                                    1310nm / 2km (OM1 OM2)
MAC address table: 8K                                Single-mode fiber : 1310nm / 20-60km
Memory: 2M                                                                             1550nm / 80-120km
Exchange delay time: < 4μs                        LED Indicator
Jumbo Frames : 10K Bytes                         Interface indicator: Link/Act (1~11)
Priority query : 4                                          Power supply indicator: PWR
VLAN : 4094                                                System operating indicator: SYS
VLAN ID : 1 to 4094
The number of multicast groups :256

Power Supply                                              Industry Standard
Input Voltage:36~72VDC                              EMI:
Type of input: Terminal block                        FCC CFR47 Part 15, EN55022/CISPR22, Class A
5 Pins 5.08mm                                              EMS:
Full-load consumption : 10W                        IEC61000-4-2(ESD):±8kV(contact),±15kV(air)
Mechanical Structure                                 IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
Shell: IP40 protect grade, metal shell           IEC61000-4-4 (EFT) :Power Port:±4kV;
Installation: DIN-Rail or Wall mounts            Data Port: ±2kV
Size(L×W×H): 138mm×128mm×55mm        IEC61000-4-5 (Surge):Power Port:±2kV/DM, ±4kV/CM
                                                                 Data Port: ±2kV
                                                                     IEC61000-4-6 (CS): 3V (10kHz-150kHz);   10V (150kHz-80MHz)
Environment                                               IEC61000-4-16 (Common mode conduction):
Working temperature: -40~85ºC                                          30V (cont.), 300V (1s)
Storage temperature: -40~85ºC                        Machinery: IEC60068-2-6 (Vibration)
Relative Humidity: 5%~95 %( no condensation)                    IEC60068-2-27 (Shock)
                                                                          IEC60068-2-32 (Free Fall)
Ordering information

Remark :
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
