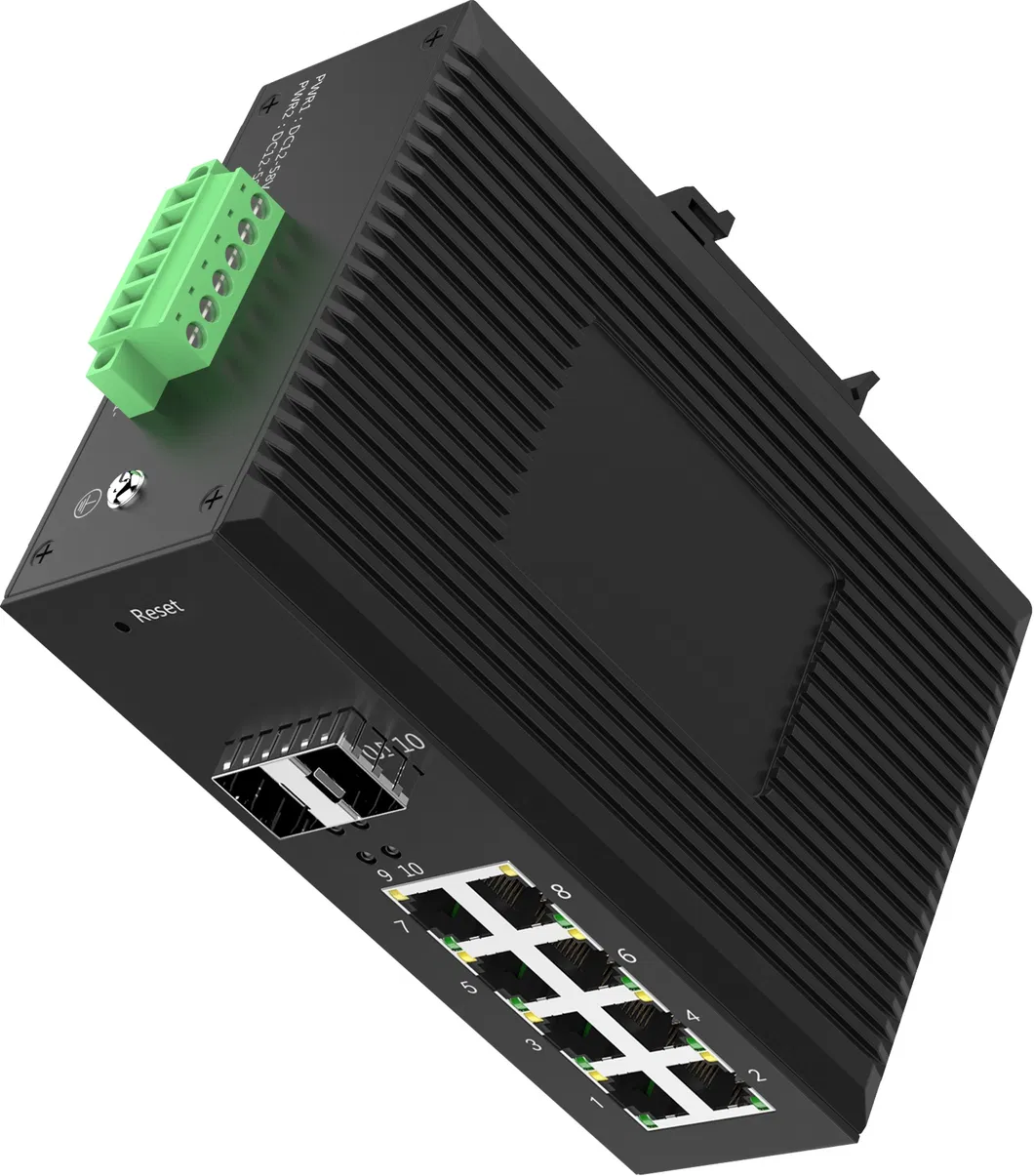

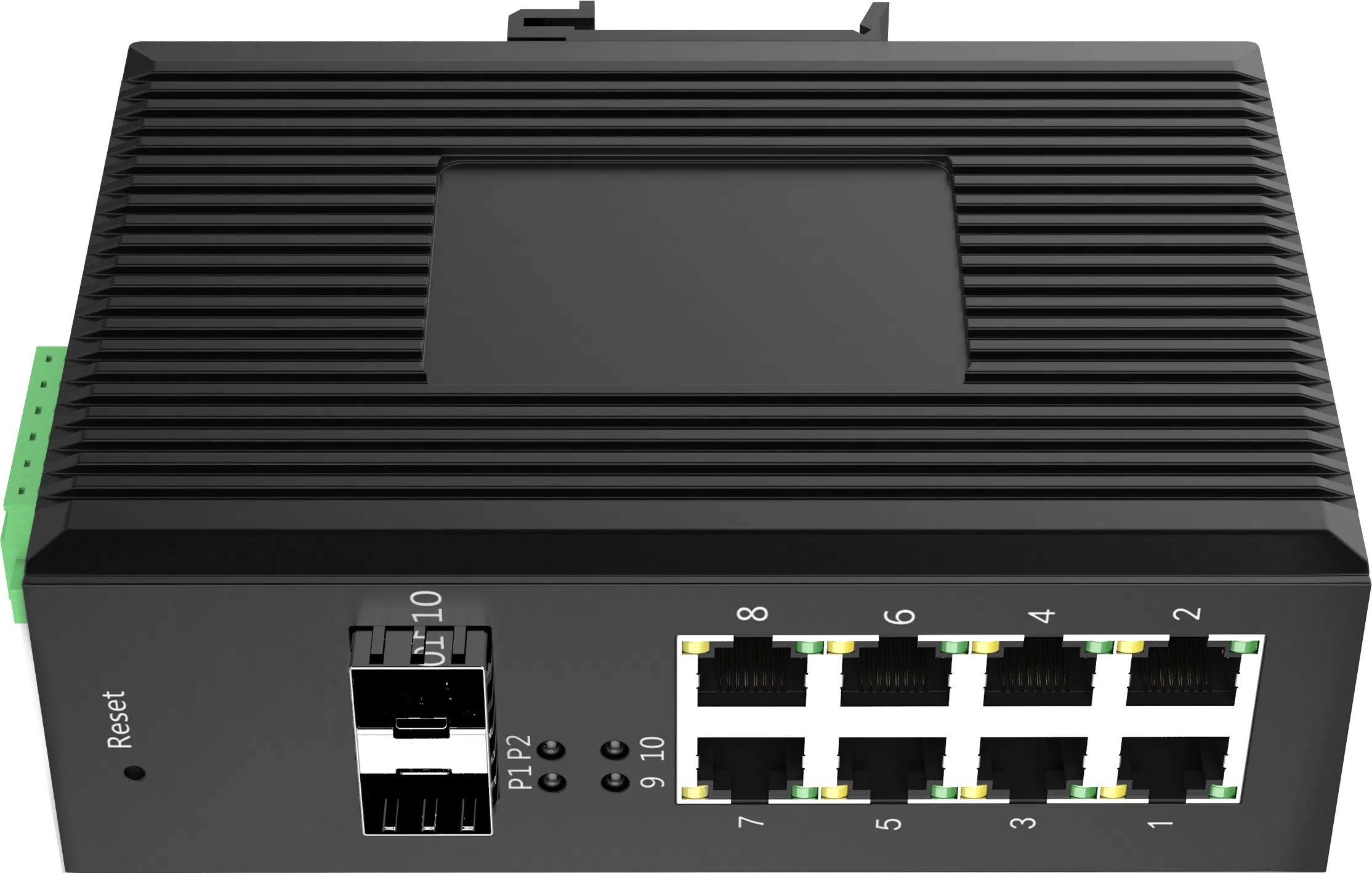

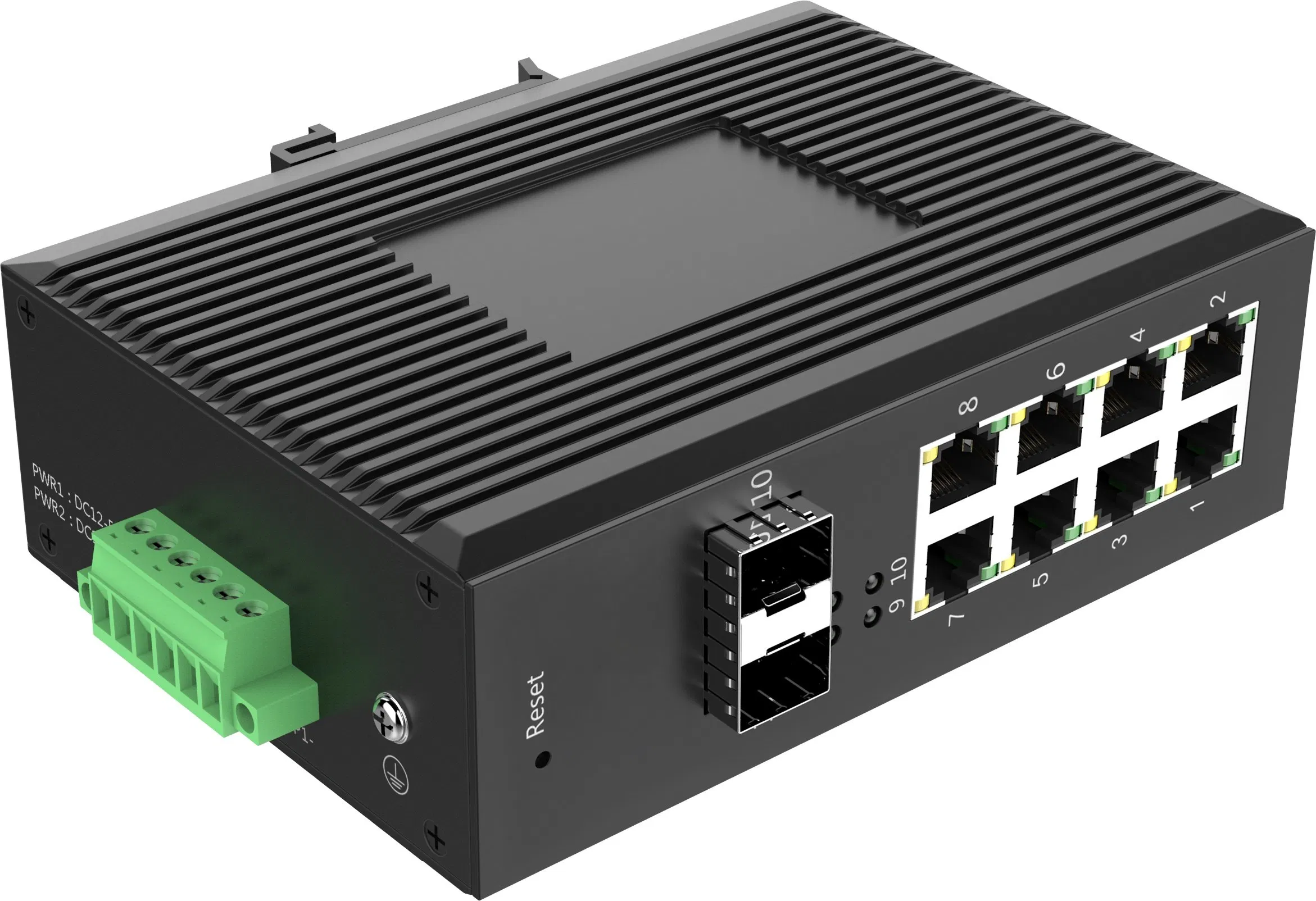

Gigabit Ethernet Managed Industrial Switch 8fx 2ge Ports

      Single fiber or dual fiber , SC / SFP interface optional, can support with ring network function [that is management], can support POE power supply
     The TE-UM-2F8E-G series is an unmanaged industrial-grade 100M fiber transceiver with a 1000x optical port and a 10 / 100/1000Base-T (X) adaptive Ethernet RJ45 interface. Can help users to achieve the exchan.
   Description


Eight 10/100/1000Mbps adaptive RJ45 ports



Two 1000Mbps SFP optical fiber interfaces or 1*9 optical fiber interfaces

4 KV Ethernet port surge protection, can adapt to harsh outdoor environment

Support automatic port flip (Auto MDI/MDIX)

Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back Pressure standard

Complying with the standards of 802.3 100Base-T and 802.3u 1000Base-TX

Support IEEE802.3/502.3u/802.3x storage and forwarding mode

Operating ambient temperature: - 40 ~85

10 VDC-58 VDC wide-voltage power supply directly input, power supply support non-polarity

IP44 grade protection, corrugated high strength metal shell, guide rail installation

POE power supply selection

Management Series Support Ring Network+WEB Management+SNMP+VLAN
