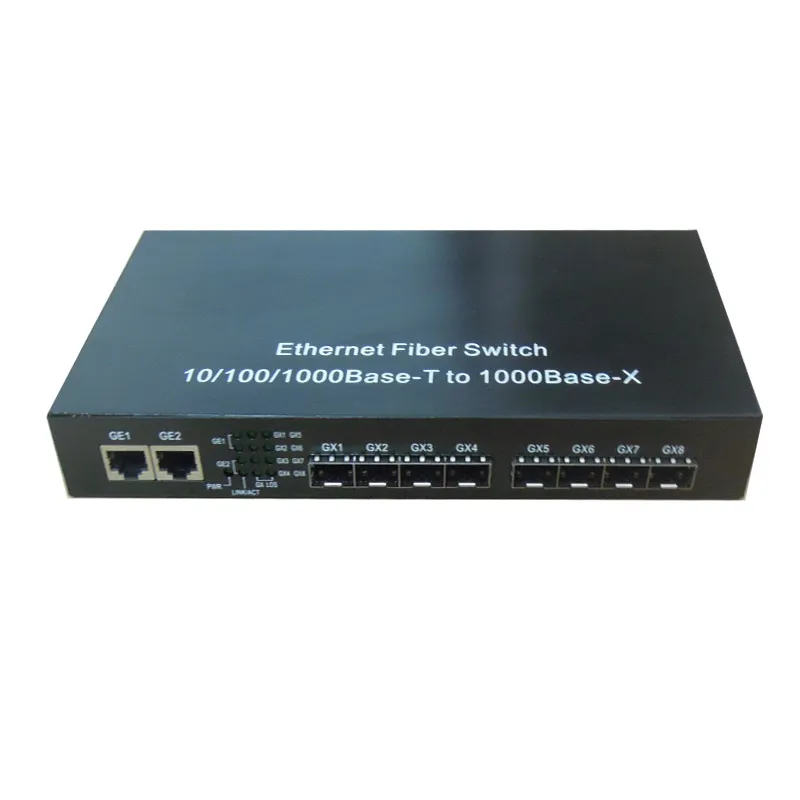

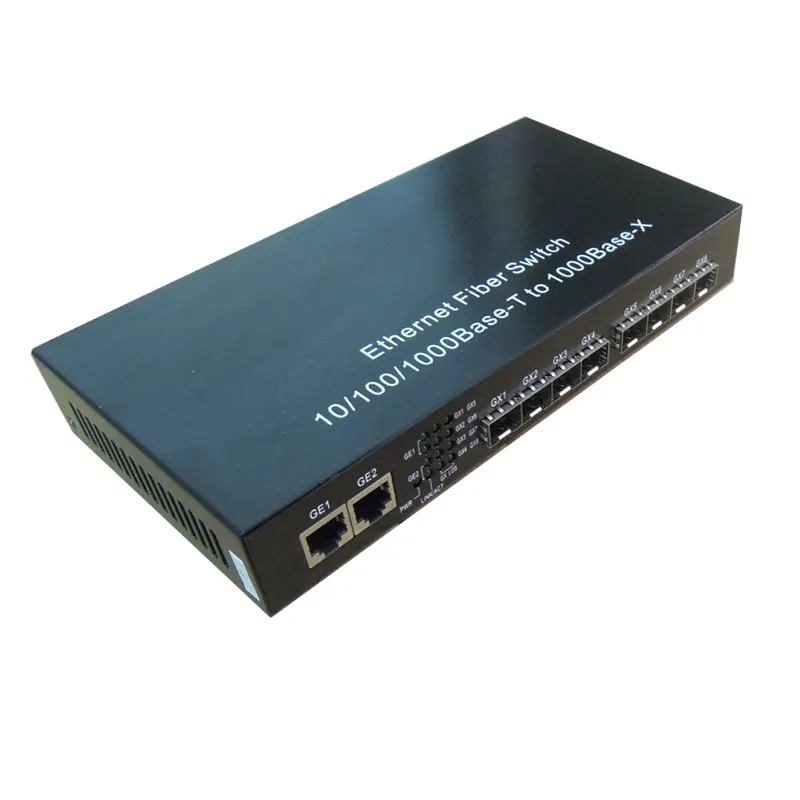

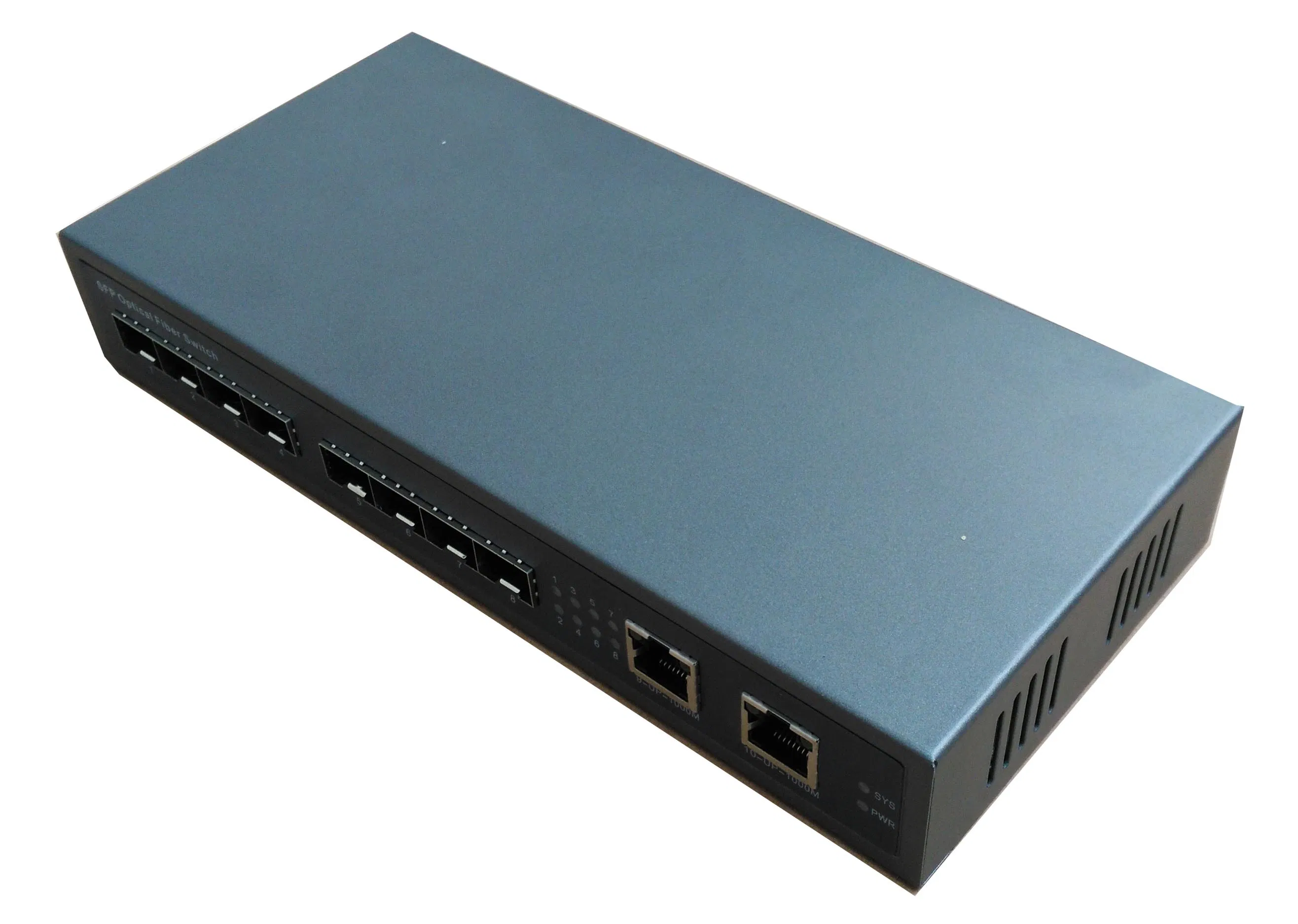

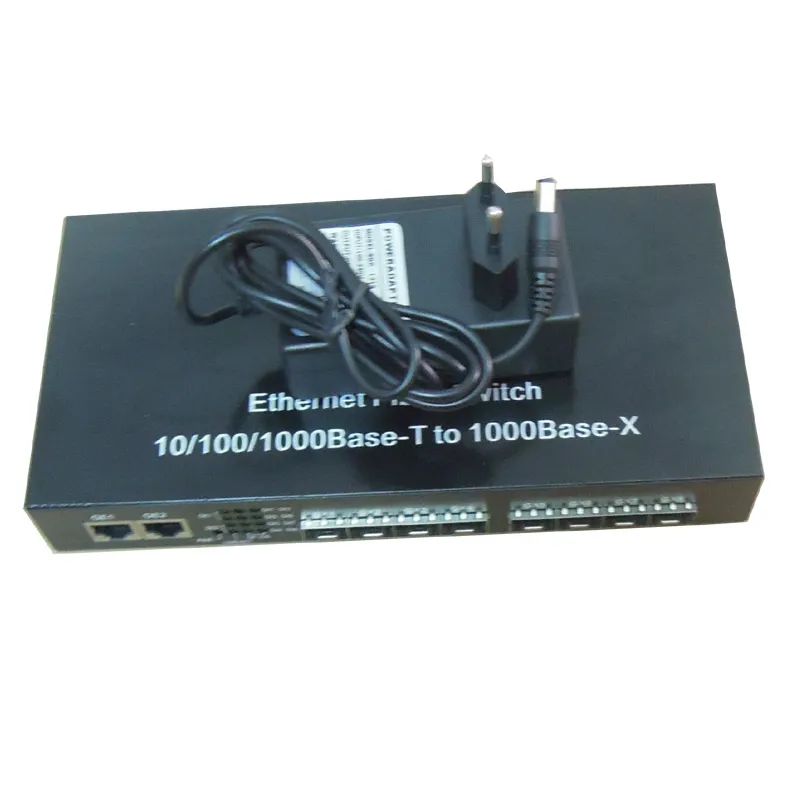

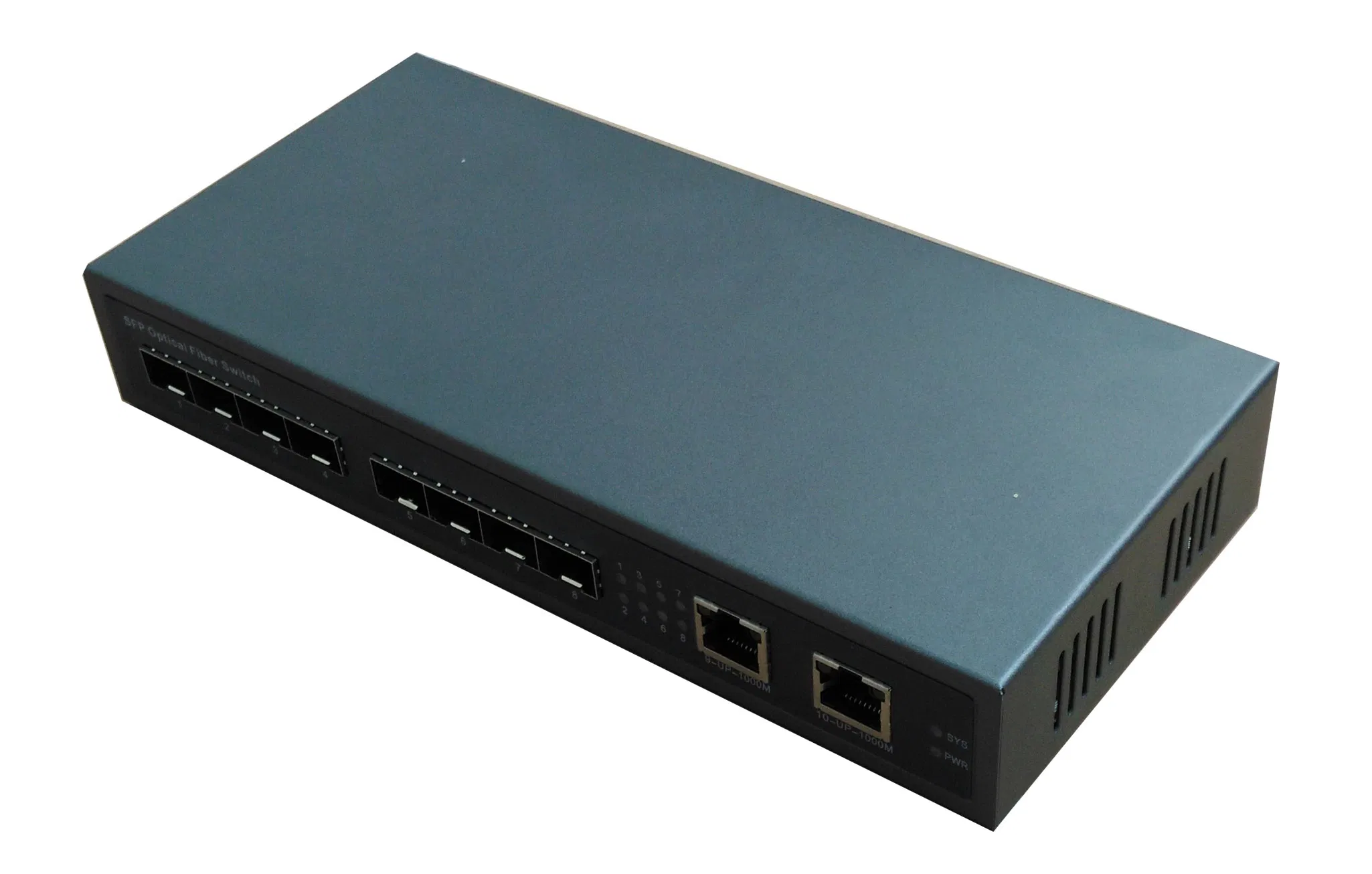

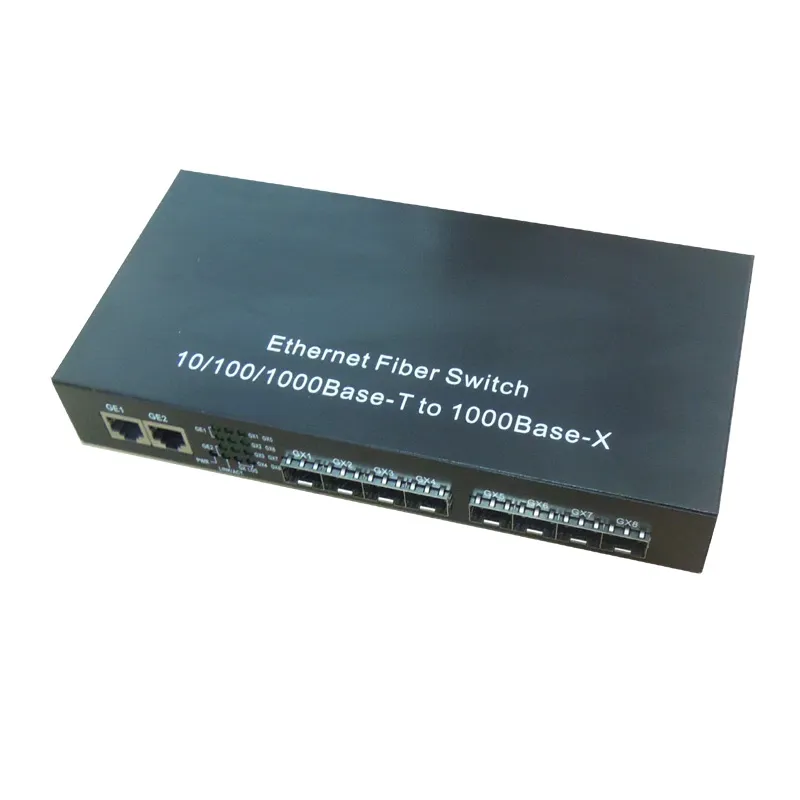

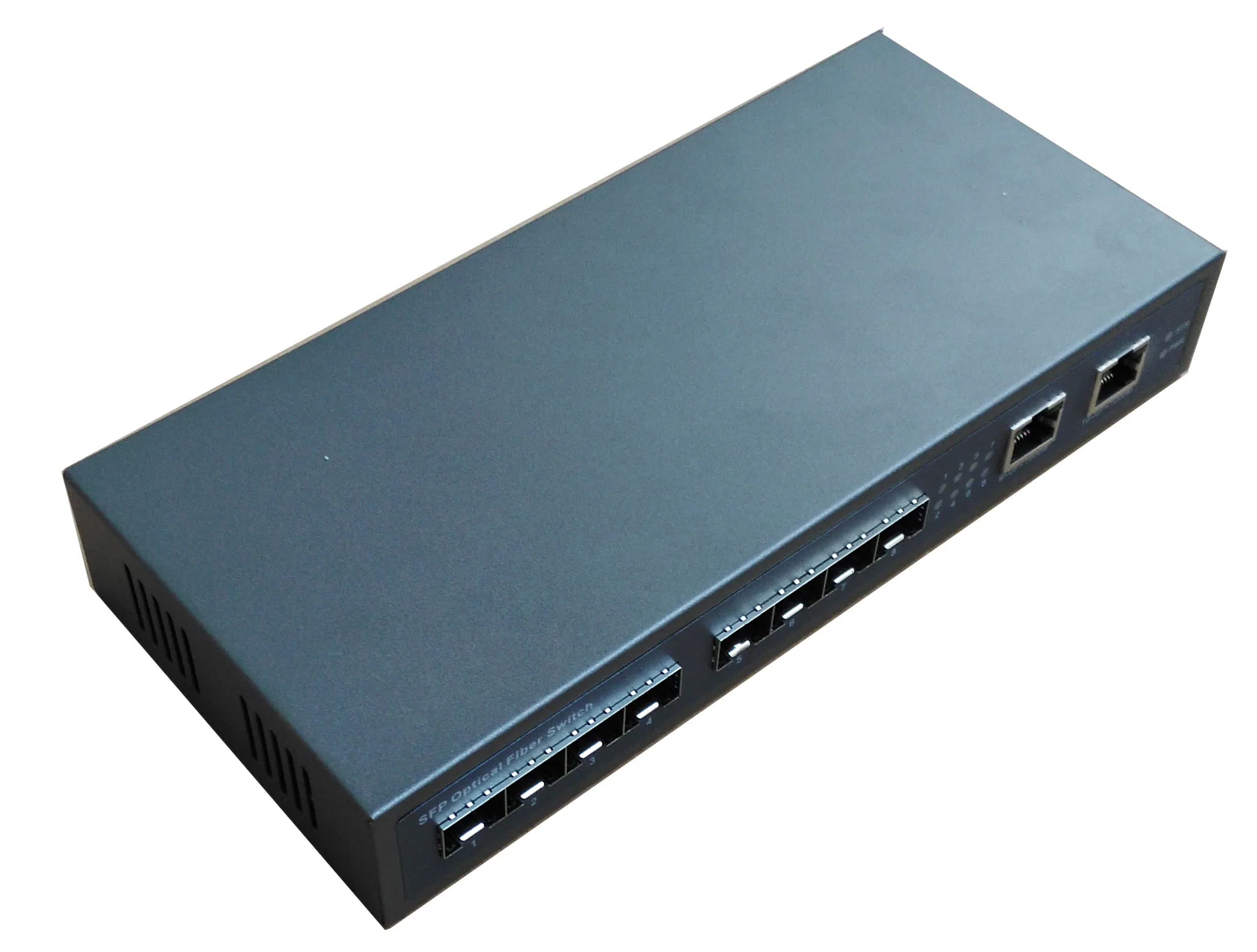

Fiber Switch with 8*SFP+2*Tx Full Gigabit Unmanned (TS1008GF)
OverviewTS1008GF 10 ports Gigabit Ethernet Optical Fiber Switch has eight 1000M SFP sockets and two 10/100/1000M UTP ports. Customer can choose different 1000M SFP module according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product i......
Send Inquiry
Product Description
Overview
TS1008GF 10 ports Gigabit Ethernet Optical Fiber Switch has eight 1000M SFP sockets and two 10/100/1000M UTP ports. Customer can choose different 1000M SFP module according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Feature
8 SFP sockets with 2 RJ45 interface optional full gigabit.
Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
The SFP slot supports 1000M and Full Duplex mode.
Flow control; IEEE802.3X for Full Duplex; Back pressure for half-duplex
All ports support line speed switching, support big frame transmission.
It is low power consume (15W), low heat, and good reliability.
Operating standards: IEEE802.3/u/z/ab, 10Base-T, 100Base-T, 1000Base-T and 1000Base-X.
MAC address table: 8K
LED indicator monitoring work state and help fault analysis
Switching capacity: 32G
Specs
Model | TS1008GF | |
Port | 1000M Rj45 | 2 |
Giga SFP | 8 | |
Performance | Store and forward | Support |
Capacity | 32G | |
MAC | 8K | |
Environment | Work Temp.: 0~40 Store Temp: -40~70 | |
Working Humidity: 10%--90% RH non-condensing Store humidity: 5%--90% RH non-condensing | ||
Input power | DC12V 2A AC input 110~220V 50/60HZ | |
Protocol and standard | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x | |
Data transfer rate | Ethernet10Mbps half-duplex, 20Mbps full duplex Fast Ethernet:100Mbps half-duplex, 200Mbps full duplex Gbit Ethernet:2000Mbps full duplex | |
Network Medium | 10Base-T:Cat3 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-T: Cat5e or above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MMF(2m~550m) or 9μm SMF (2m~80km) | |
Physical Specifications | Product Size: 225mm*105mm*32 mm(L*W*H) Package Size: 300mm*175mm*100mm(L*W*H) Weight:1kg | |
