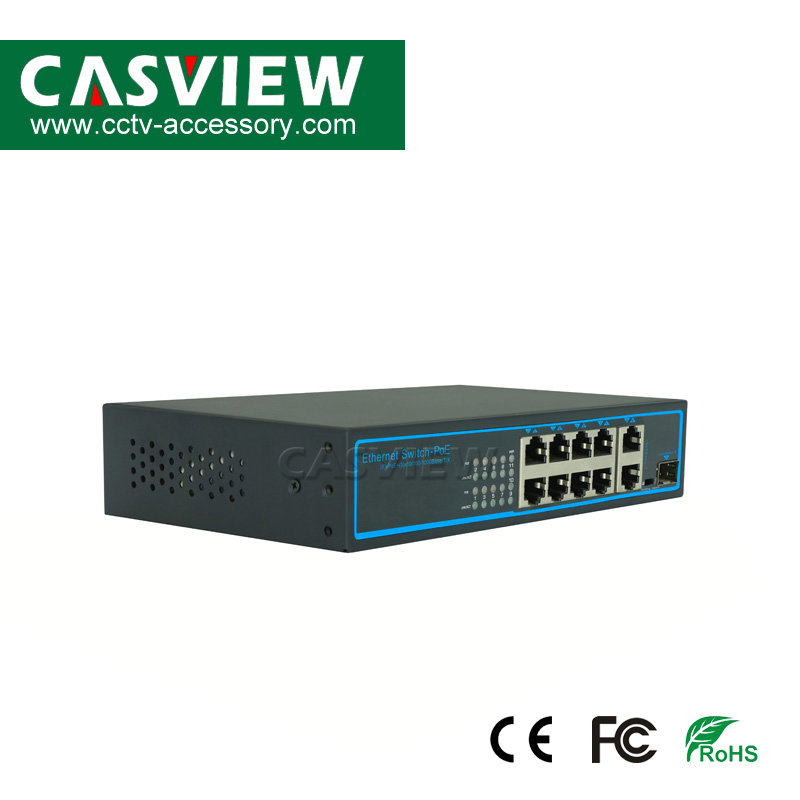

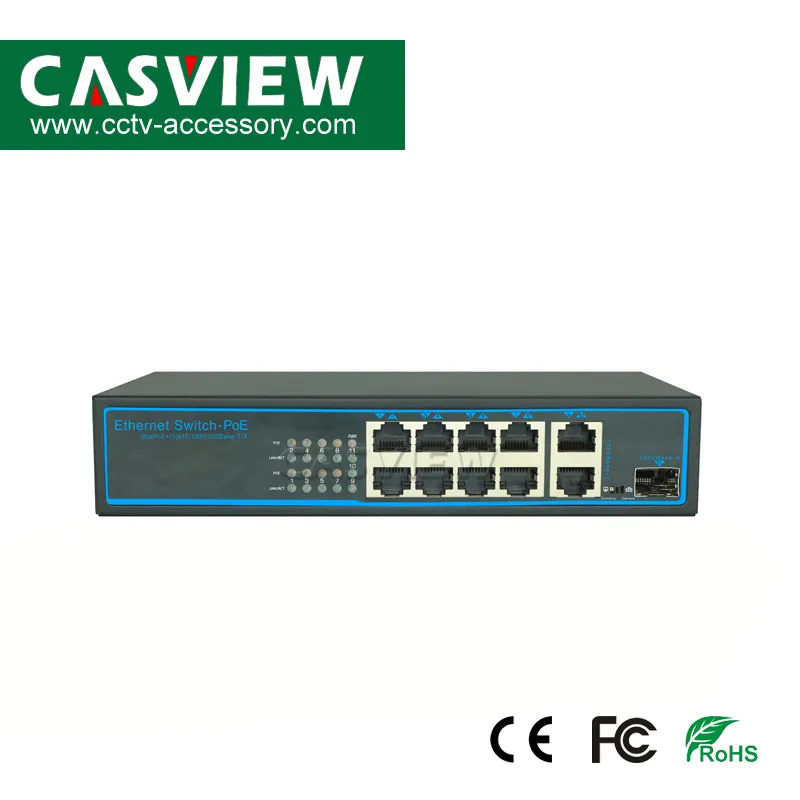

CPE-G4208be 11 Ports 10/100/1000Mbps Poe Switch; 8*10/100/1000Mbps Poe Ports; 2*10/100/1000Mbps Uplink Port; 1*10/100/1000Mbps SFP Port Built in 52V 2.3A 120W
11 Ports 10/100/1000Mbit POE Switch:With 8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port, and 1*10/100/1000Mbps SFP portWith Built in 52V 2.3A 120W Power SupplySupports port auto-ip (Auto MDI/ MDIX); Maximum power of single PoE port: 15.4W/30W; Adopts store-and-forward architecture; IEEE ......
Send Inquiry
Product Description
11 Ports 10/100/1000Mbit POE Switch:
With 8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port, and 1*10/100/1000Mbps SFP port
With Built in 52V 2.3A 120W Power Supply
Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 8 ports;
With anti-theft lock;
Protection: Excellent anti thunder, anti static and anti interference;
Description:

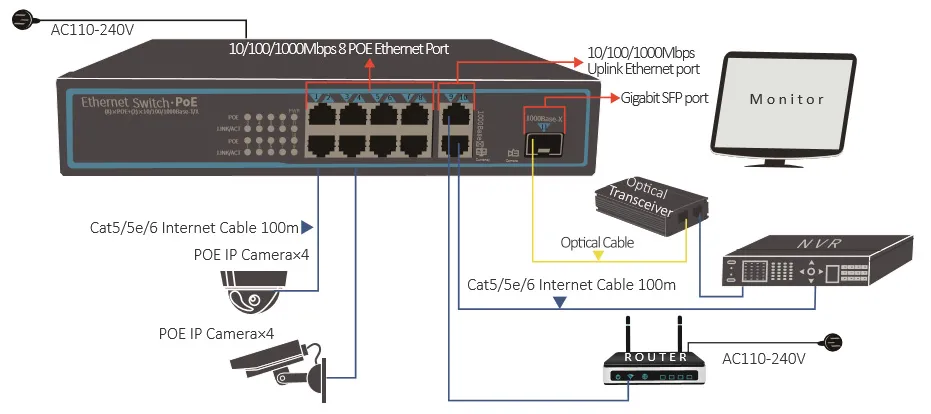

The 11 Ports Full Gigabit PoE Switch is an unmanaged Ethernet Switch designed for Gigabit Ethernet access and PoE applications. It provides 8 Gigabit downlink ports, 2 Gigabit uplink Ethernet port, and 1*10/100/1000Mbps SFP port. The 8 downlink ports support 802.3af/at standard and feature Max 30W PoE power output of single port, Max 150W of whole machine. It can be widely used in security surveillance, hotels, schools, engineering and other occasions.
Specifications:
| Model | CPE-G4208BE | ||
| Power | Power Adapter Voltage | 110-240V | |
| Consumption | 120W | ||
| Network Connector | Network port | 1~8 Port: 10/100/1000Mbps 1~8: POE Ethernet Port | |
| Uplink Port: one Ethernet 1000Mbps, One SFP 1000Mbps | |||
| Transmission Distance | 1~8 Pot: 0~100m | ||
| SFP: depends on the optical module | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE 802.1Q, IEEE 802.1u IEEE 802.1x, IEEE 802.3ab | |
| Switch Capacity | 22Gbps | ||
| Packet Forwarding Rate | 16.36Mbps | ||
| MAC Table | 2K | ||
| Power Over Ethernet | POE Standard | IEEE 802.3af/at | |
| PoE Power Supply Type | End-Span(1/2+;3/6-) | ||
| POE Power Consumption | af<=15.4W,at<=30W(every port) | ||
| LED Status Indicator VLAN/Extend | PoE Ethernet LED Indicator Indicator | Power: 1 red light indicates that the power normal work; | |
| POE: 8 yellow lights indicate that the POE is power on; | |||
| Ethernet: 8 green lights indicate that the Ethernet link and act; | |||
| Environmental | Working temperature | 0ºC~55ºC | |
| Relative Humidity | 20~95% | ||
| Storage Temperature | -20ºC~70ºC | ||
| Mechanical | Dimension (L×W×H) | 201mm*120mm*41mm | |
| Color | Black | ||
| Weight | 699g | ||

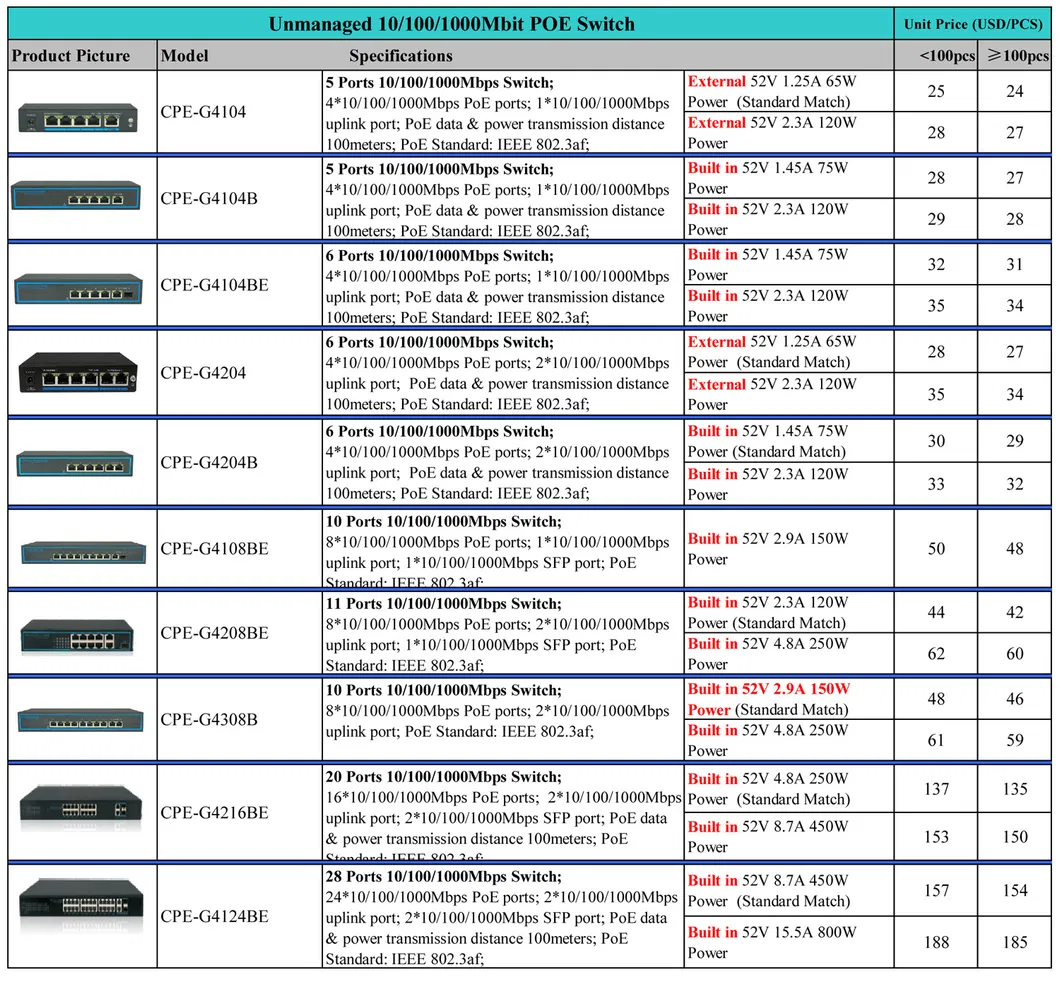

Optional Models:
