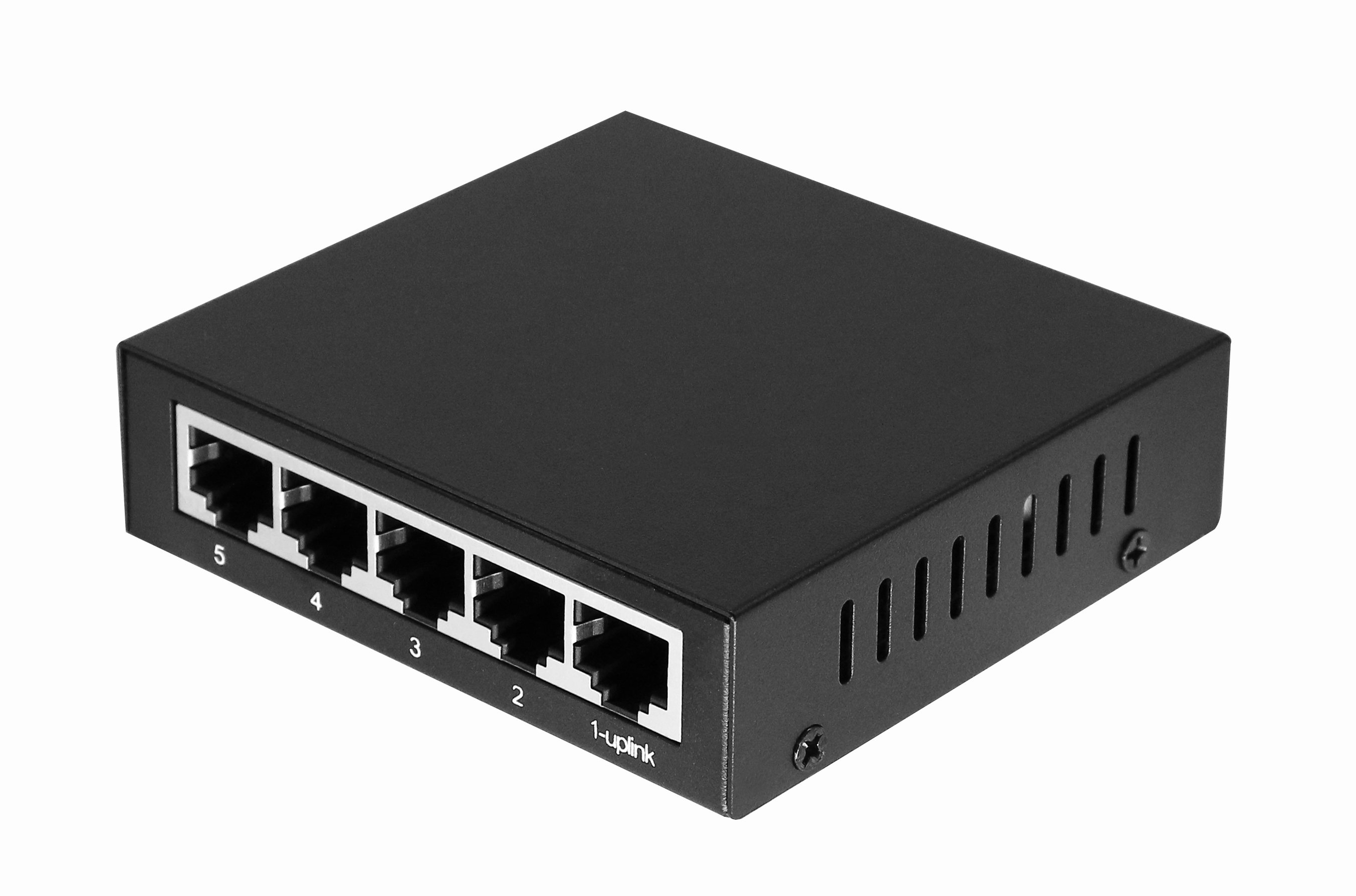

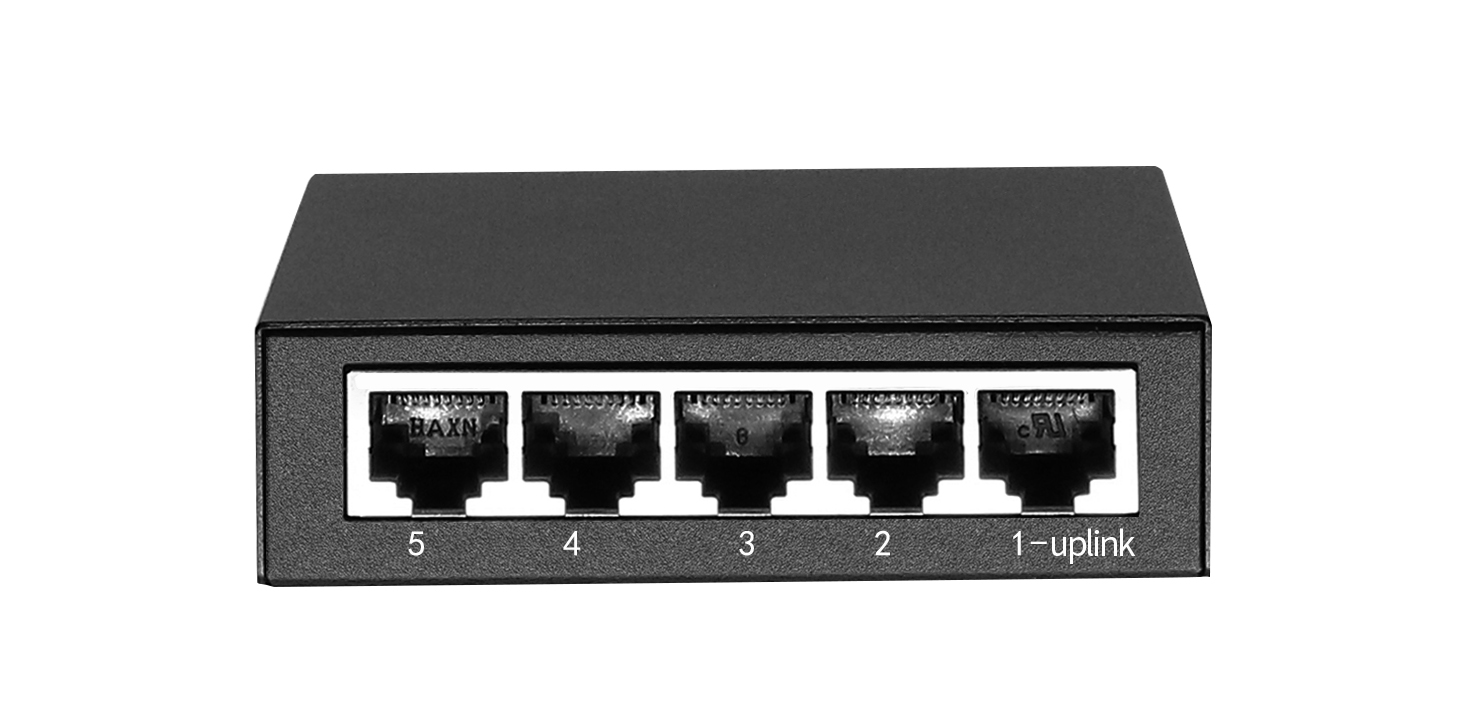

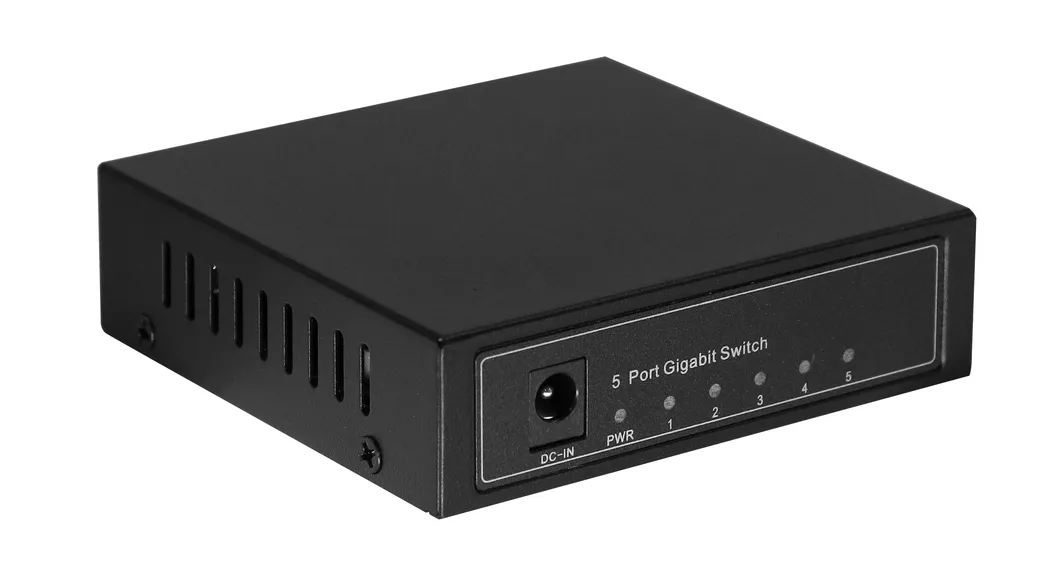

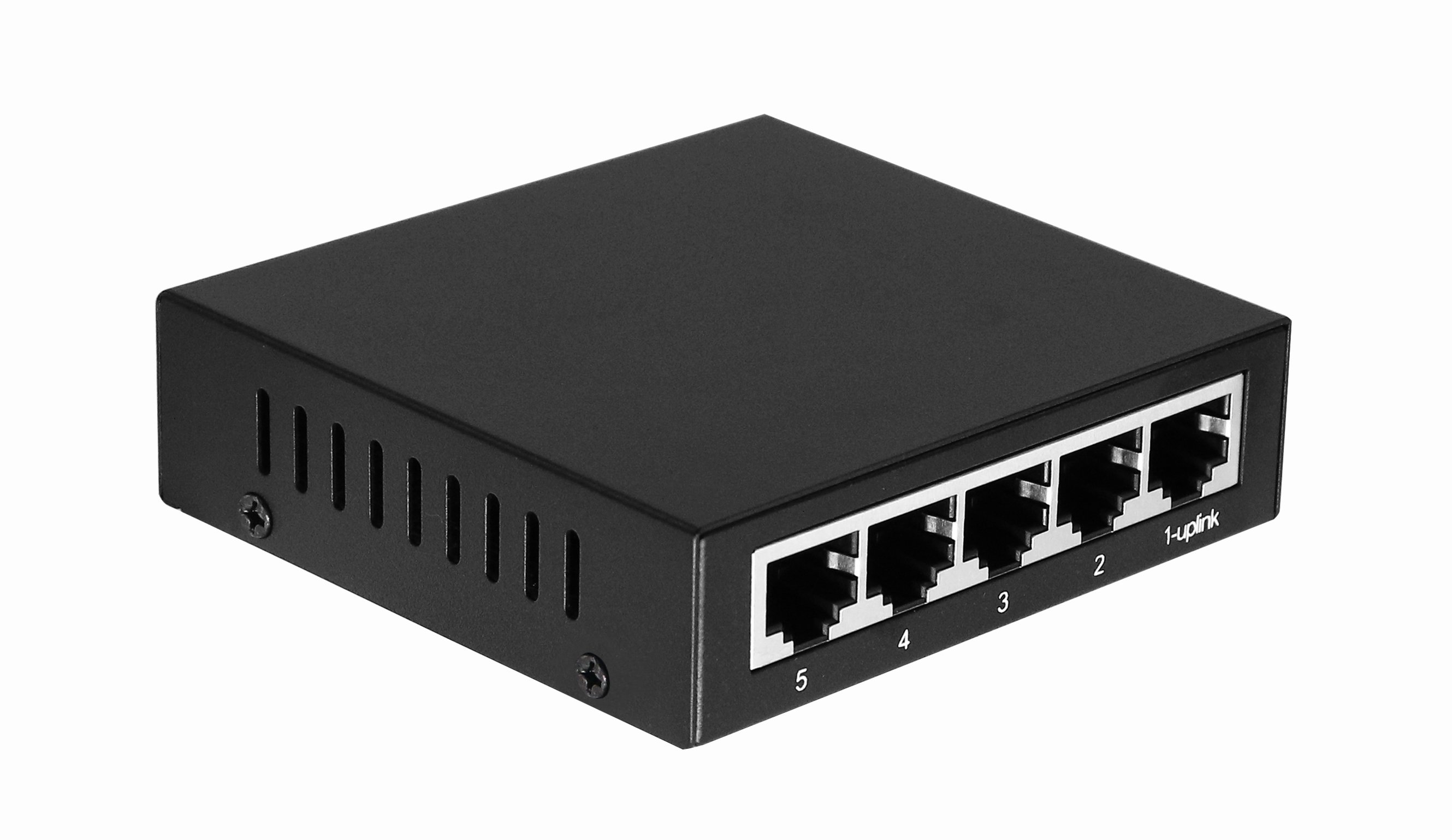

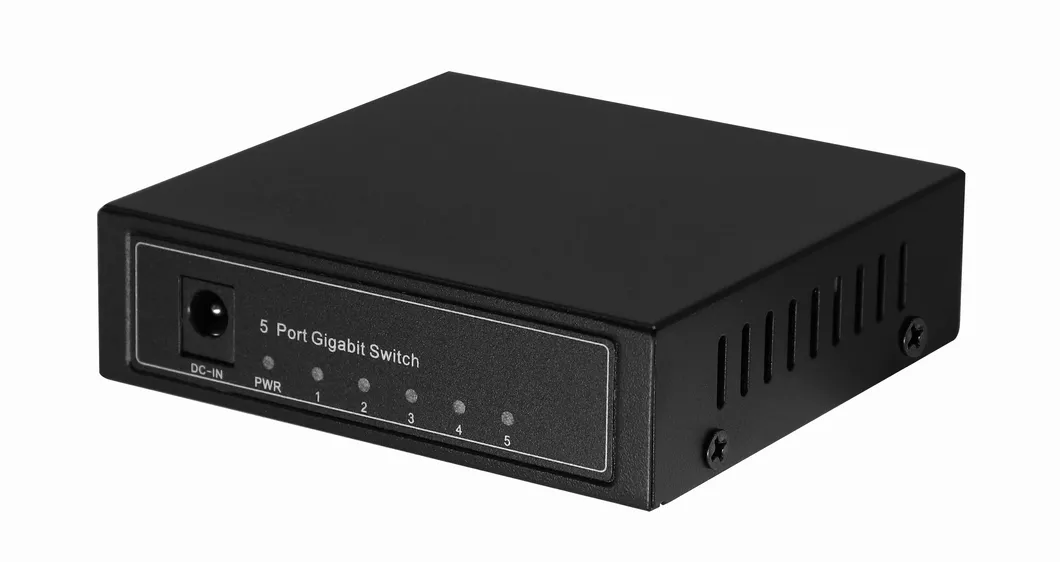

5 Port Giga Ethernet LAN Switch (EFW0500G)

Product Description

Feature
5*1000BASE-T Gigabit Ethernet ports
Supports Auto-Negotiation for 10/100/1000Mbps and duplex mode
Supports Auto-MDI/MDIX for each port
Supports Full/Half duplex transfer mode for 20/10Mbps and 200/100Mbps
Supports Full duplex transfer mode for 1000Mbps
Full wire speed reception and transmission
Supports 8K absolute MAC addresses
Extensive front-panel diagnostic LED
IEEE 802.3x flow control for full-duplex
Back pressure flow control for half-duplex

specs

Standards and Protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Chipset	Realtek 8367
Switching Capacity	10Gbps
MTBF	87,600hours (10 years)

Basic Function	Wire-speed Performance
	MAC Address Auto-Learning and Auto-aging
	Complies with IEEE 802.3x full-duplex and flow control
MAC Address Table	4k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward
Ports	510/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Environment	Operating Temperature: 0ºC~40ºC (32ºF~104ºF) Storage Temperature: -40ºC~70ºC (-40ºF~158ºF) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
LED Indicators	Power, 10/100M, 1000M
Packing Size	19.114.16.4cm
Unit weight	350g
AC adaptor	12V 0.5A
