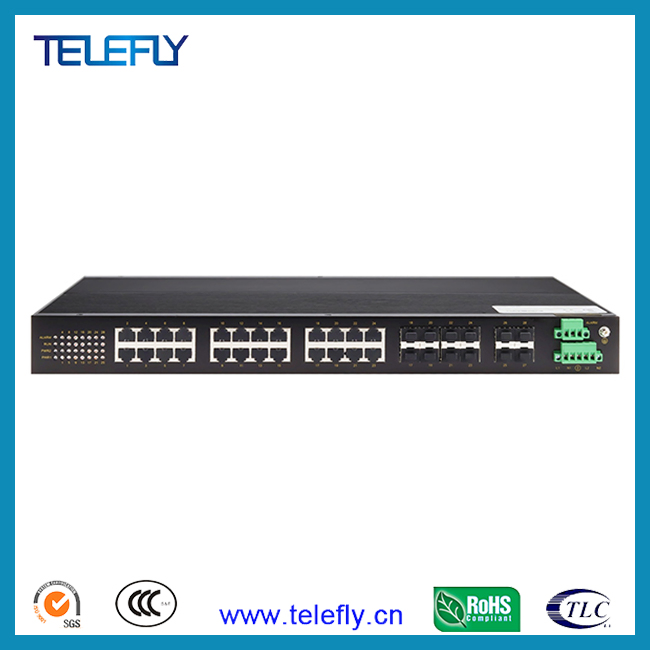

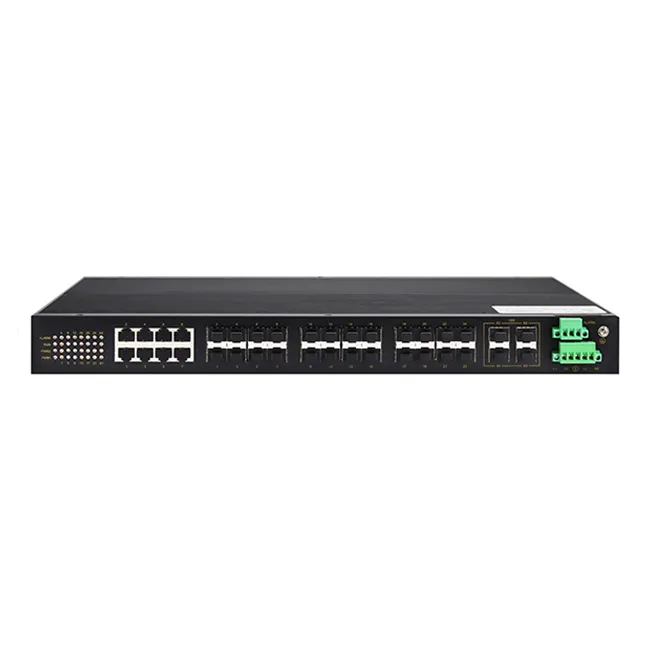

4X10g SFP Ports + 48 RJ45 Ports Rack-Mount Layer 3 Managed Industrial Ethernet Switch
Product DescriptionTELCOM8052G layer 3 full Gigabit Ethernet switch is a high-performance Ethernet communication product. It supports 4x10-Gigabit fiber ports + 48 Gigabit copper ports interface configurations. TELCOM8052G is a 19-inch rack mount that supports front panel mounting and rear panel mou......
Send Inquiry
Product Description
Product Description

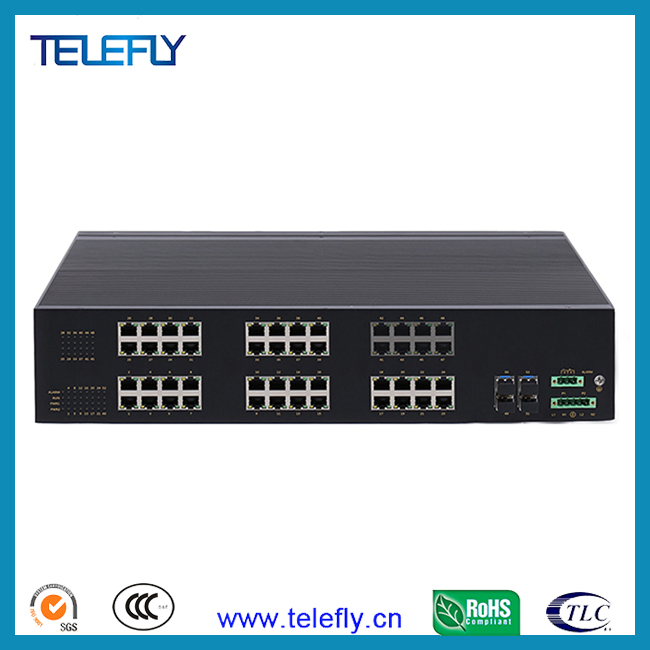

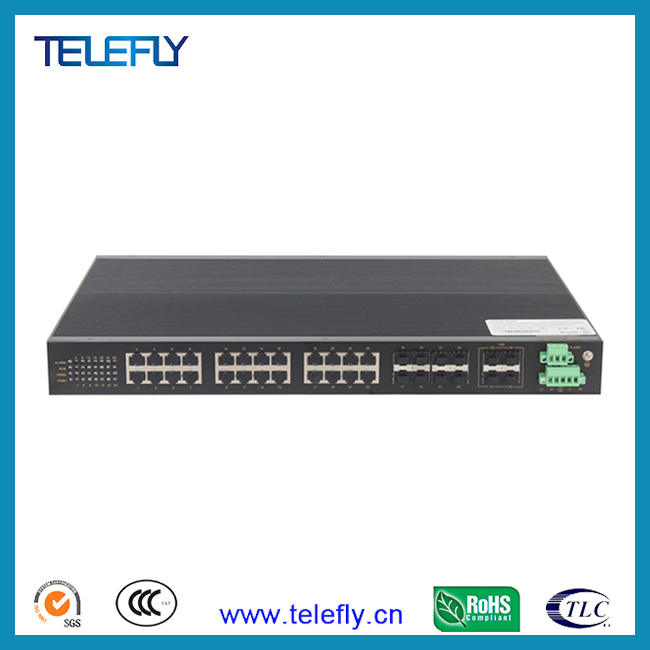

TELCOM8052G layer 3 full Gigabit Ethernet switch is a high-performance Ethernet communication product. It supports 4x10-Gigabit fiber ports + 48 Gigabit copper ports interface configurations. TELCOM8052G is a 19-inch rack mount that supports front panel mounting and rear panel mounting. It not only supports port, VLAN, multicast, QoS, fast redundancy ring etc. layer 2 software features, but also supports static and dynamic routing, multicast routing, and supports multiple management methods of Console and Web, as well as network management software of the host computer. It provides high performance and highly reliable solutions for communications.
Features and Benefits
-Support 4 10-Gigabit fiber ports + 48 Gigabit copper ports interface configurations
-Support RIP, OSPF, PIM Layer 3 routing protocols
-Supports multiple redundant networking mechanisms such as MW-Ring, MSTP, VRRP, and EAPS
-Support multiple management methods to support centralized network management
-Front and rear indicator design
-Meet IEC61850-3 standard
-Meet State Grid level A standard
Specifications
Specifications
| Software performance | |
| Switch Function | Support VLAN, GVRP |
| Support port speed limit, Support storm suppression | |
| Support port aggregation, Support port flow control | |
| Redundancy protocol | Support VRRP, EAPS |
| Support MW-Ring ring network technology | |
| Support MSTP/RSTP, compatible with STP | |
| Multicast routing | Support IGMP v1/v2/v3, IGMP Snooping |
| Support GMRP | |
| Support for static multicast | |
| Routing technology | Support RIPv1/v2, RIPng, OSPFv1/v2 |
| Support static routing protocol | |
| Support PIM-SM, PIM-DM | |
| Service quality management | Support ACL to filter L2-L7 layer data |
| Support SP, WRR queue scheduling | |
| Management and maintenance | Support Console, Telnet, WEB management mode, RMON |
| Support SNMPv1/v2c, which can be managed centrally through MWview | |
| Support FTP, TFTP file transfer and software upgrade | |
| Supports power failure alarms, power alarms, port alarms, and ring alarms. | |
| Support port mirroring, Syslog, LLDP, RTC, SNTPv4 | |
| IP supports DHCP server/relay/client | |
| Technical specifications | |
| Ethernet Standard | IEEE802.3-10BaseT |
| IEEE802.3u-100BaseTX/100Base-FX | |
| IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX | |
| IEEE802.3ab-1000BaseTX, IEEE802.1ab | |
| IEEE802.1D-Spanning Tree Protocol, IEEE802.1w-Rapid Spanning Tree Protocol | |
| IEEE802.1Q -VLAN Tagging | |
| IEEE802.1s Multiple Spanning Tree Protocol | |
| IEEE802.1p -Class of Service | |
| IEEE802.1X-Port Based Network Access Control GVRP, RIPv1/v2, OSPFv1/v2/v3, VRRP, DHCP, CLI, EAPS, Qos, LACP, LLDP, IGMP, PIM, SNMP, SNTP, SSH | |
| Switch properties | |
| Priority queue | 8 |
| VLAN number | 4096 |
| IGMO multicast groups | 1K |
| MAC address | 64K |
| Switch Bandwidth | 176Gbps |
| Route Table | 16K |
| Switch Delay | <5μs |
| Interface | |
| 10-Gigabit ports | Port numbers: 4 |
| Connector: SFP type Fx port | |
| Baud rate:10G Base-Lx (Fx port) | |
| Gigabit ports | Port numbers: 48 |
| Connector: RJ45 adaptive Tx ports | |
| Baud rate:1000Base-Lx ( Fx port), 10/100/1000M adaptive Tx port | |
| Console port | RS232/RJ45 |
| Terminal block for power input | 5.08mm terminal block |
| Terminal block for relay alarm | 5.08mm terminal block,1A@24VDC |
| Communication distance | |
| Twisted-pair | 100m (standard CAT5/CAT5e cable) |
| Multimode fiber | Gigabit multi mode: 850nm 550m |
| Single mode fiber | Gigabit single mode: 1310nm 20km |
| LED indicator lights | |
| Front panel LED | Port light: LINK/ACT; SPEED |
| Running light: RUN | |
| Power LED: PWR1/ PWR2 | |
| Alarm LED: AlARM | |
| Back panel LED | RJ45 Tx port light: LINK/ACT; SPEED |
| Fiber indicator: LINK/ACT | |
| Power Requirements | |
| Power input | AC/DC220V(85-264VAC/110-370VDC) |
| Full-load consumption | <70W@full load |
| Overload protection | Support |
| Reverse protection | Support |
| Redundancy protection | Support |
| Working Environment | |
| Operating Temperature | -10°C~60°C |
| Ambient Humidity | 5%~95%( non-condensing) |
| Physical Characteristics | |
| Installation | 19" 2U rack mounted for front and rear outlet installation |
| Dimension | 482.6mm*88mm*315mm (W*H*D) |
| Industry standard | |
| EMC | EN61000-4-2 (ESD), Level 4 |
| EN61000-4-3 (RS), Level 4 | |
| EN61000-4-4 (EFT), Level 4 | |
| EN61000-4-5 (Surge), Level 4 | |
| EN61000-4-6 (CS), Level 4 | |
| EN61000-4-8, Level 5 | |
| Impact | IEC60068-2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
| Warranty | |
| Warranty | 5 Years |
| Certification | |
| Certification | CE,FCC,RoHS |
| Ordering Information | |
| TELCOM8052G-4XGF-48GT-AD220 | 4x10 Gigabit fiber ports +48 Gigabit RJ45 ports, layer 3 10G managed rack-mounted aggregation Ethernet switch |
Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.

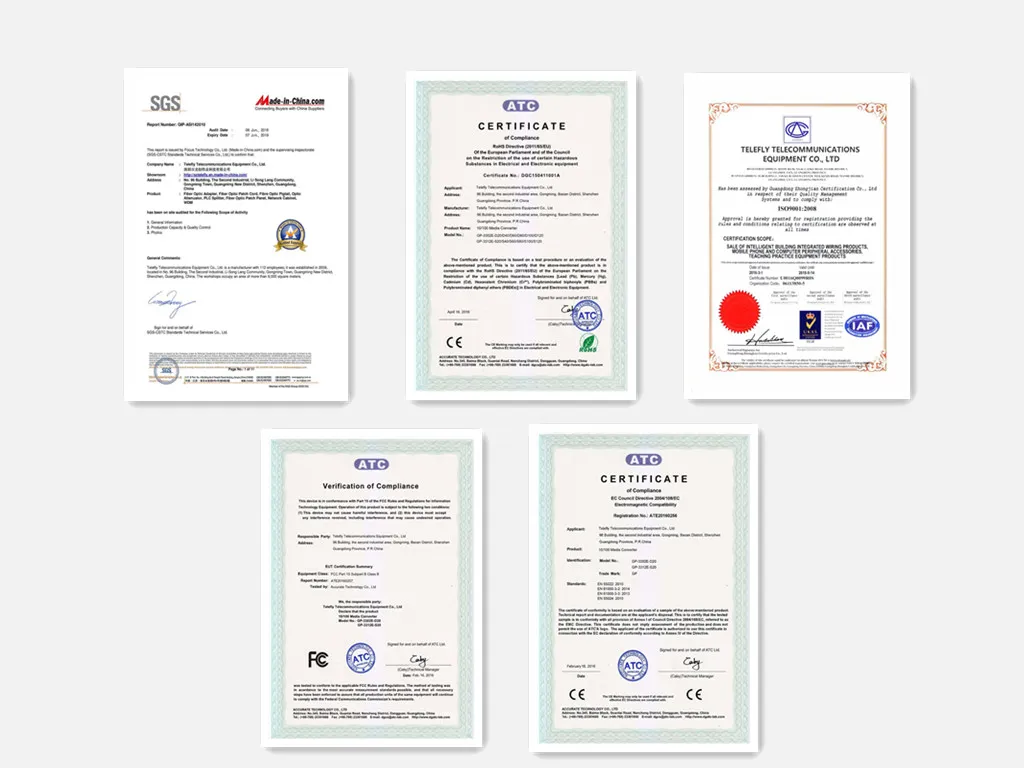

Cerfifications Showing
