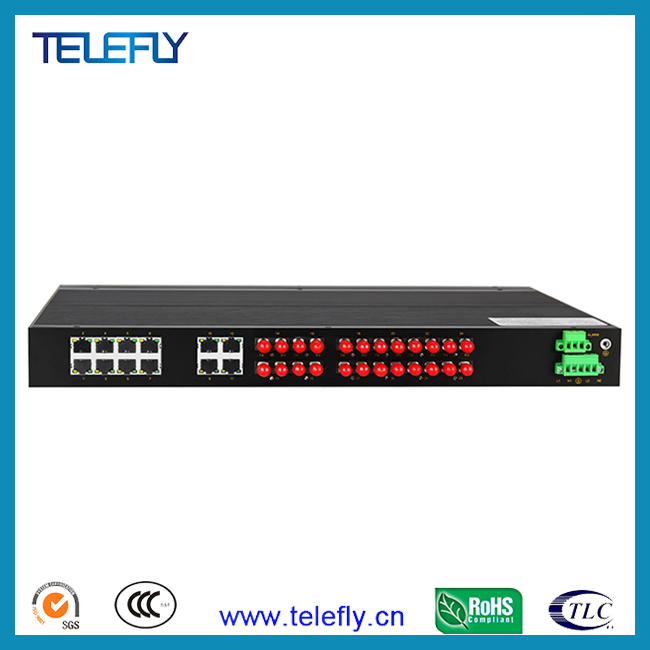

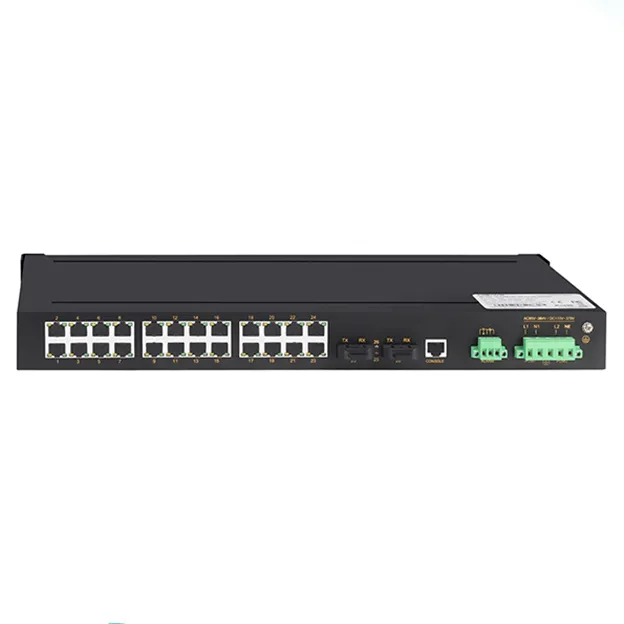

4 SFP Ports 24 100m Fiber/Copper Ports Rack-Mount Layer 2 Indudstrial Ethernet Switch
Product DescriptionTELCOM7028 series layer 2 Gigabit industrial Ethernet switch is a high-performance Ethernet communication product developed by Maiwe for industrial communication. The product uses high-performance industrial-grade switch chip, supports 4 Gigabit SFP ports+24 10/100M fiber/copper p......
Send Inquiry
Product Description
Product Description

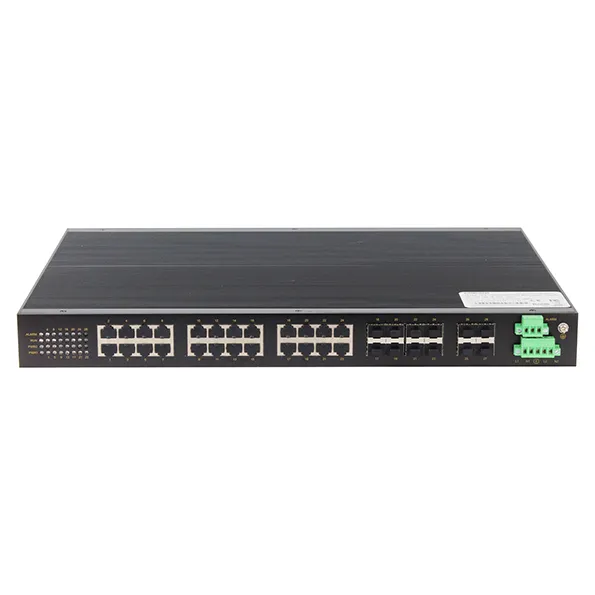

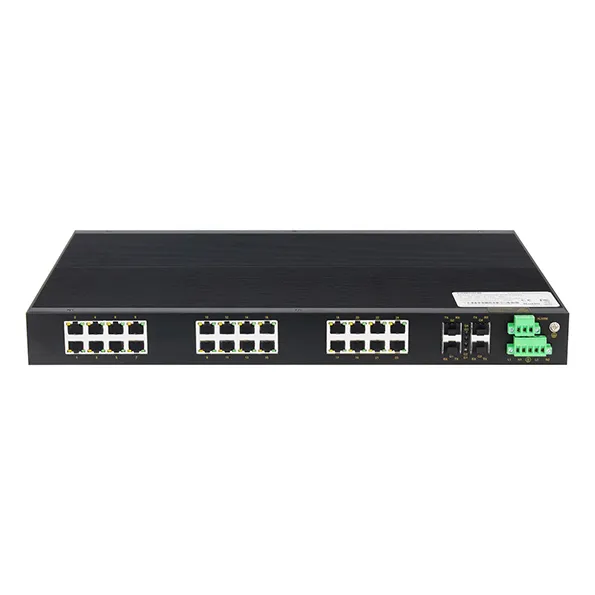

TELCOM7028 series layer 2 Gigabit industrial Ethernet switch is a high-performance Ethernet communication product developed by Maiwe for industrial communication. The product uses high-performance industrial-grade switch chip, supports 4 Gigabit SFP ports+24 10/100M fiber/copper ports, AC220V/DC110V industrial power input, which improves the stability of network communication and save wiring. The TELCOM7028 series products can meet the high-end requirements of the smart grid especially in the industrial application environment and the communication performance of the equipment.
Features and Benefits
-Support 4 Gigabit SFP ports + 24x10/100M copper/fiber ports
-Support front and rear indicator status display
-Support MW-Ring ring network patent technology (failure recovery time is less than 20ms)
-Support static multicast filtering technology, IGMP Snooping
-Support broadcast storm suppression and port rate control functions
-Support industrial grade with isolated power supply, optional dual redundant power supply
-Support status relay alarm output such as power loss, fiber drop, and storm
-Supports network management functions such as VLAN, QoS, port aggregation, and port mirroring
-Industrial grade wide temperature design, fanless thermal design
-Meet the requirements of harsh industrial environments
-Conforms to IEC61850-3 standard
-Meets Grade A standard of State Grid
Specifications
Specifications
| Software function | |
| Switch Properties | Support port speed limit |
| Support port aggregation | |
| Support port flow control | |
| Support port VLAN, IEEE 802.1Q VLAN | |
| Support broadcast storm suppression | |
| Redundancy Protocols | Support MW-Ring ring network technology, self-healing time <20ms |
| Support STP/RSTP | |
| Multicast | Support IGMP v1/v2, IGMP Snooping |
| Support GMRP and Support static multicast filtering | |
| Security | Support IEEE 802.1x, HTTP, RADIUS, user grading and MAC address binding |
| Service quality management | Supports SP and WRR queuing. |
| Support QoS setting | |
| IP address management | Support DHCP server |
| Management and maintenance | Support Console, WEB management |
| Support SNMPv1/v2c | |
| Support software upgrade | |
| Support host computer IP/MAC conflict alarm | |
| Support for power failure alarm, power alarm, port alarm | |
| Support port mirroring | |
| Support log viewing | |
| Support Link-check | |
| Support NTP | |
| Support accept frame transmission frame statistics | |
| Technical parameters | |
| Protocol Standard | IEEE802.3 |
| IEEE802.3u (100Base-TX&100Base-FX) | |
| IEEE802.3x (Flow control) | |
| IEEE802.3ab(1000Base-T) | |
| IEEE802.3z(1000Base-LX) | |
| IEEE802.1D(STP), IEEE802.1w(RSTP) | |
| IEEE802.1Q(VLAN) | |
| IEEE802.1p(Priority) | |
| IEEE802.1x(Access control) | |
| Switch capability | |
| Priority Queues | 8 |
| VLAN Number | 4096 |
| IGMP multicast group | 1k |
| MAC Table Size | 8K |
| Backplane bandwidth | 12.8Gbps |
| Switch Delay | <5μs |
| Interface | |
| Gigabit ports | Port numbers: 4 |
| Connector: SFP fiber port(LC connector, single-mode/ multi-mode) or Self-adaption 10/100/1000M-TX | |
| Interface form: SFP optical port (LC interface, single/ multi-mode optional) or Self-adaption 10/100/1000M-TX | |
| Baud rate: 1000Base-LX (optical port), Self-adaption 10/100/1000MBase-TX | |
| 100M Port | Port number: 24 |
| Connector: 1×9 fixed optical port (single/ multi-mode optional, optional SC/FC/ST interface) or RJ45 100M TX | |
| Baud rate:100Base-FX(optical port), Self-adaption 10/100MBase-TX | |
| Console port | RS232, RJ45 |
| Terminal block for relay alarm | 3-pin 5.08mm terminal block, 1A@24VDC |
| Terminal block for power input | 5-pin 5.08mm terminal block |
| Communication distance | |
| Twisted-pair | 100m(CAT5/CAT5e cable) |
| Multi-mode Fiber | Gigabit multi-mode: 850nm, 500m; 100M multi-mode: 1310nm, 2km |
| Single-mode Fiber | Gigabit single-mode: 1310nm, 20km; 100M singlemode1310nm, 20/40km; 1550nm, 60/80km |
| LED indicator lights | |
| Front panel LED lights | Port light: LINK/ACT; SPEED |
| System work light: RUN | |
| Power status light: PWR1; PWR2; | |
| Alarm light: ALARM | |
| Back panel LED lights | RJ45 Port light: LINK/ACT; SPEED |
| Fiber light: LINK/ACT | |
| Power | |
| Input power | AC/DC220V(85-264VAC/110-370VDC) |
| Input current | 0.25A@110VAC/VDC |
| Power consumption | <40W@(MAX) |
| Overload protection | Support |
| Reverse protection | Support |
| Redundancy protection | Support |
| Working Environment | |
| Operating Temperature | -40°C~85°C |
| Storage temperature | -40°C~85°C |
| Ambient Humidity | 5%~95% |
| Physical Characteristics | |
| Shell | IP40 protection, aluminum alloy shell |
| Installation | Standard 19-inch rack mounting, |
| Support front and rear outlet installation | |
| Dimension | 482.6mm×44mm×315mm |
| Industry standard | |
| EMC | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS), Level 4 | |
| EN61000-4-4(EFT), Level 4 | |
| EN61000-4-5(Surge), Level 4 | |
| EN61000-4-6(CS), Level 4 | |
| EN61000-4-8, Level 5 | |
| Impact | IEC60068-2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
| Warranty | |
| Warranty | 5 Years |
| Certification | |
| Certification | CE, FCC, RoHS |
| Ordering Information | |
| TELCOM7028-4GF-AD220 | 4 Gigabit Fx ports+24 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |

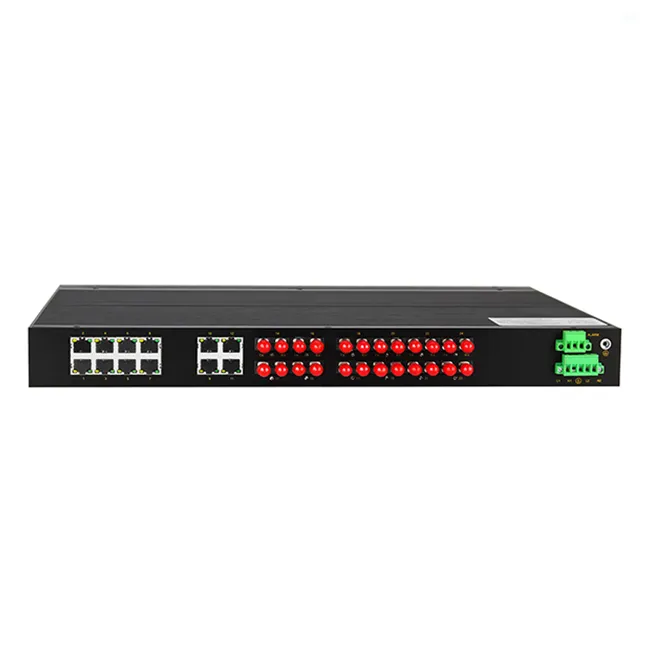

| TELCOM7028-4GF-4F(M/S)-AD220 | 4 Gigabit Fx ports+4 100M Fx ports+20 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELCOM7028-4GF-8F(M/S)-AD220 | 4 Gigabit Fx ports+8 100M Fx ports+16 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELCOM7028-4GF-12F(M/S)-AD220 | 4 Gigabit Fx ports+12 100M Fx ports+12 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELCOM7028-4GF-16F(M/S)-AD220 | 4 Gigabit Fx ports+16 100M Fx ports+8 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELCOM7028-4GF-24F(M/S)-AD220 | 4 Gigabit Fx ports +24 100M Fx ports, single AC85-264V/DC110~370V isolate power supply |
Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
Cerfifications Showing

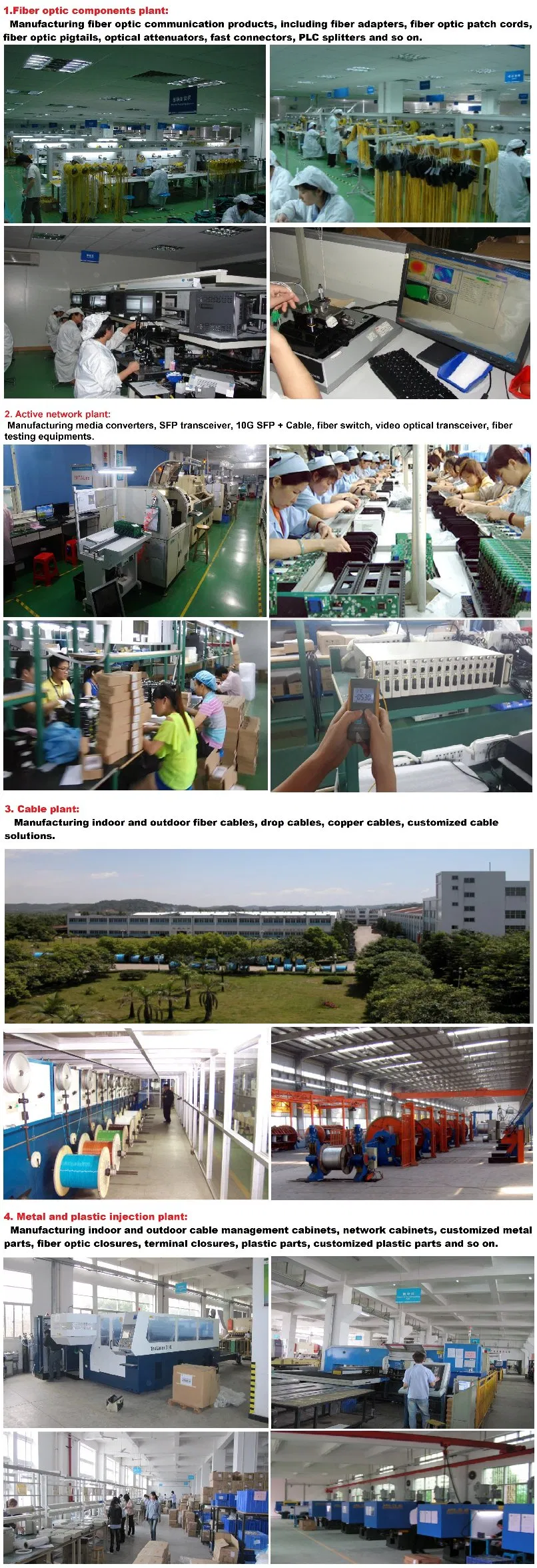

Our Exhibition
