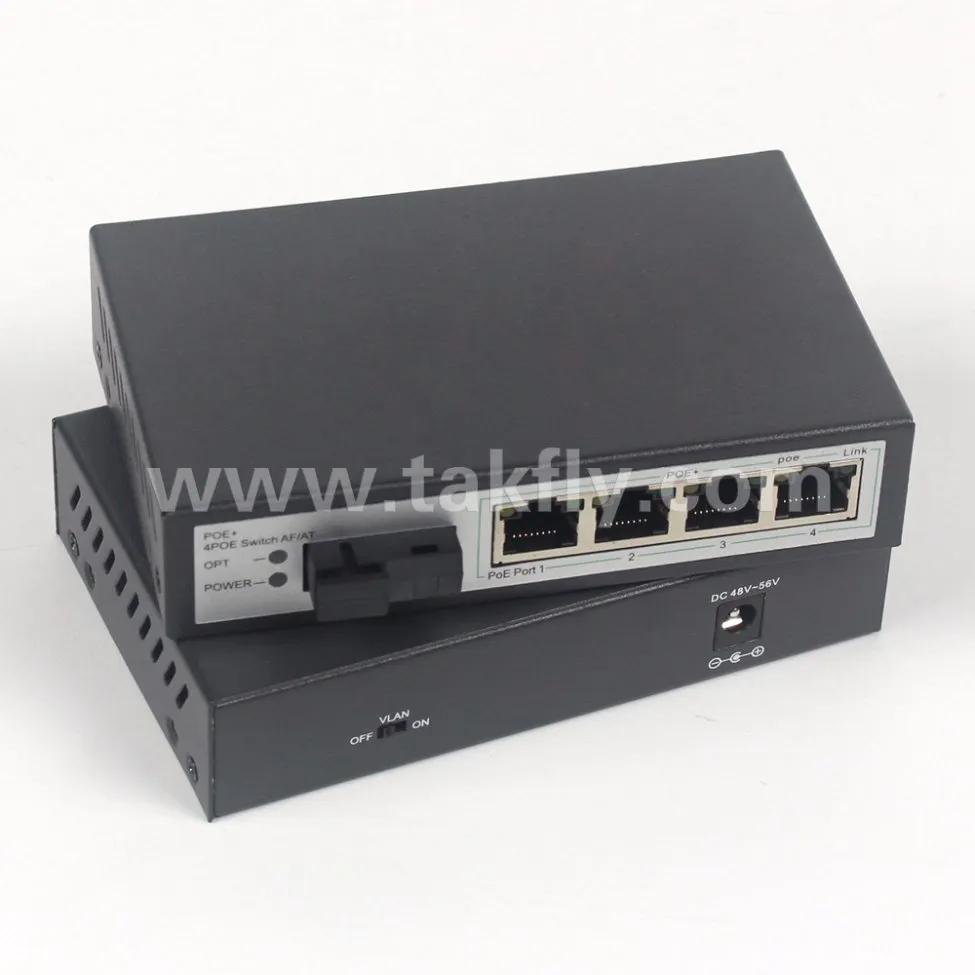

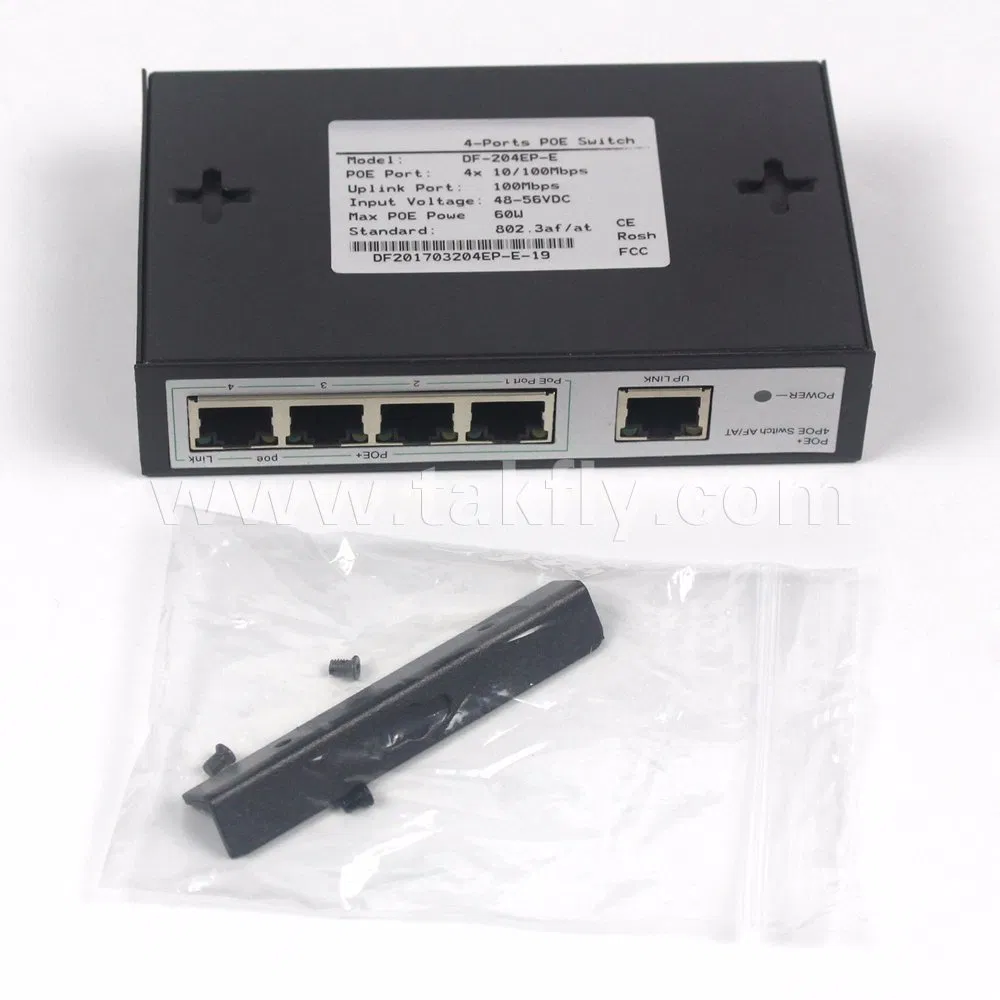

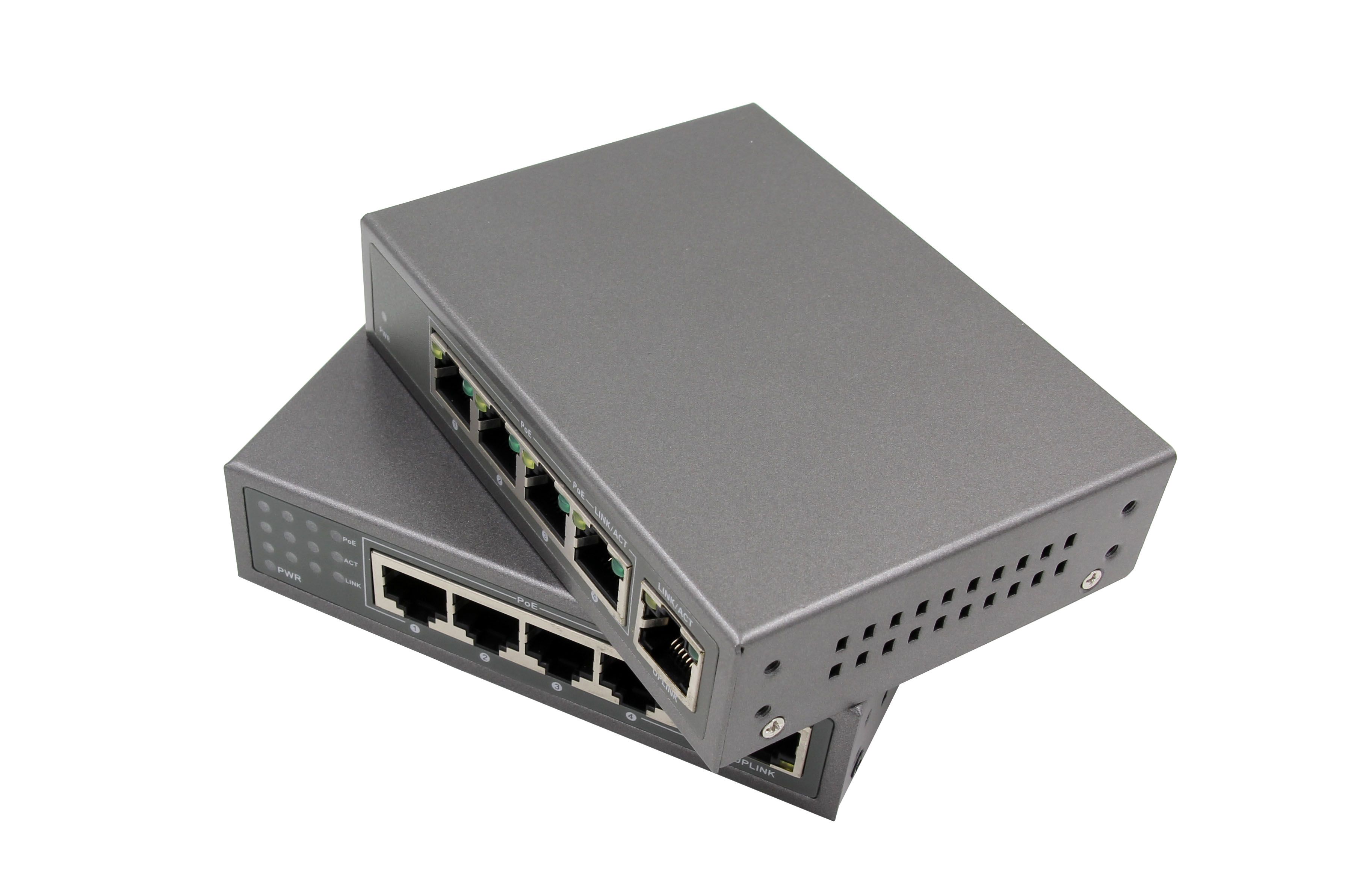

4 Port High Power 100M Fast Poe Network Switch 60W
4 Port High Power 100M Fast Poe Network Switch 60WTakfly 4-ports 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities,For cost saving and flexible using of PoE power provision, LS5000 series provides PoE pow......
Send Inquiry
Product Description
4 Port High Power 100M Fast Poe Network Switch 60W
Takfly 4-ports 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities,For cost saving and flexible using of PoE power provision, LS5000 series provides PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices. Besides, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power.
Installation
With data and power over Ethernet from one unit, this series shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network
Spec
Any query about 4 Port high power 100m poe switch,please leave me an inquiry or contact me directly.
Takfly 4-ports 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities,For cost saving and flexible using of PoE power provision, LS5000 series provides PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices. Besides, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power.
Installation
With data and power over Ethernet from one unit, this series shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network
Spec
| Specifications | |
| Technology | |
| Network Standards | IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x Flow Control |
| PoE power | ·15.4W per port(IEEE802.3af) ·Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-) ·Cable:UPT cat.5 or higher |
| Processing types | ·Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control |
| Backplane Bandwidth | ·1.6Gbps |
| Buffer memory | ·96Kb embedded memory per unit |
| MAC Address | ·2K |
| Network latency | ·Less than 20us for 64-byte frames in Store-and- forward mode |
| Power Input | ·AC90-260V input |
| PoE power consumption | ·15.4W /port |
| Power budget | ·72W |
| Mechanical | |
| Casing | ·Metal case |
| Dimension | ·185x130x10mm(LxWxH) |
| Weight | ·0.8KG |
| LED Indicators | ·System:Power,PoE Maximum power ·Per port:Link,Activity,Speed PoE active,PoE error |
| Installation | ·Desk Top |
| Environment specifications | |
| Operating Temperature | ·-10~45ºC |
| Storage Temperature | ·-10~70ºC |
| Operating Humidity | ·90% max relative humidity, on-condensing |
| Storage Humidity | ·90% max relative humidity, on-condensing |
| Safety | ·CE/ROHs/FCC |
| Warranty | ·1 year |
Any query about 4 Port high power 100m poe switch,please leave me an inquiry or contact me directly.
