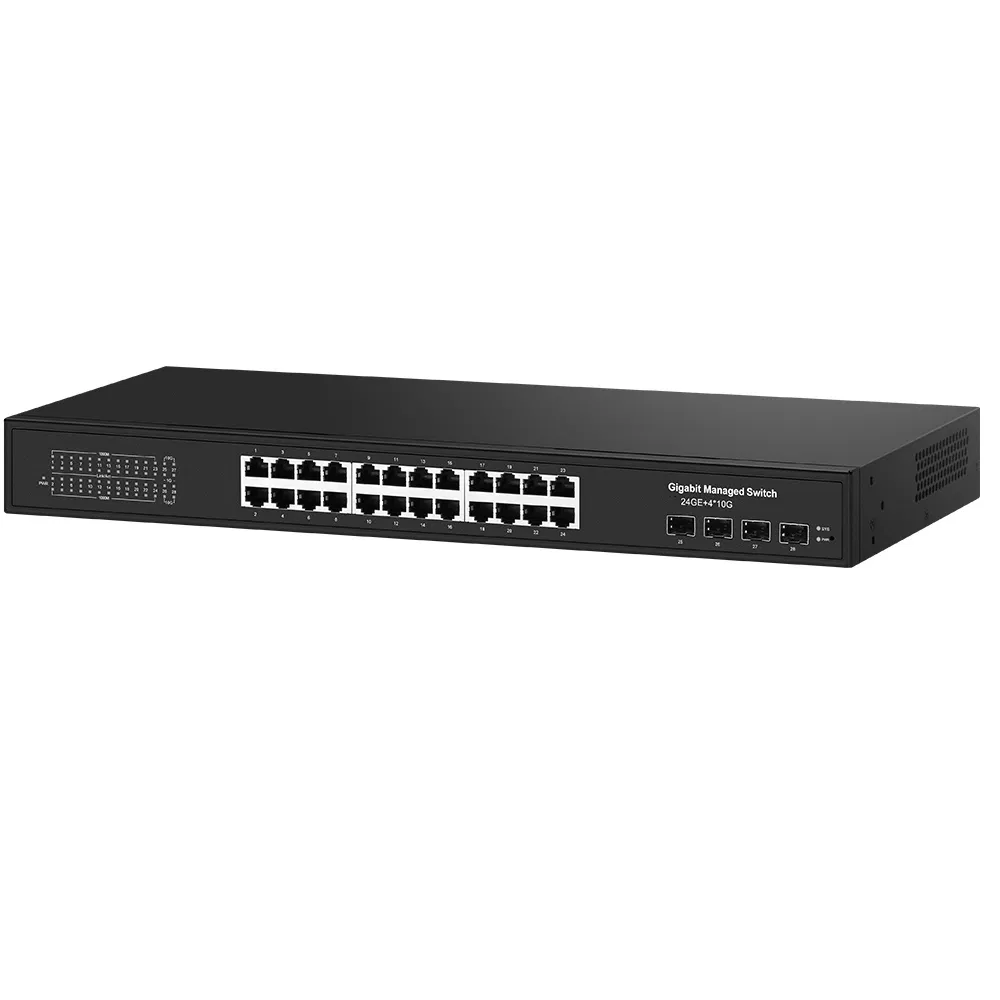

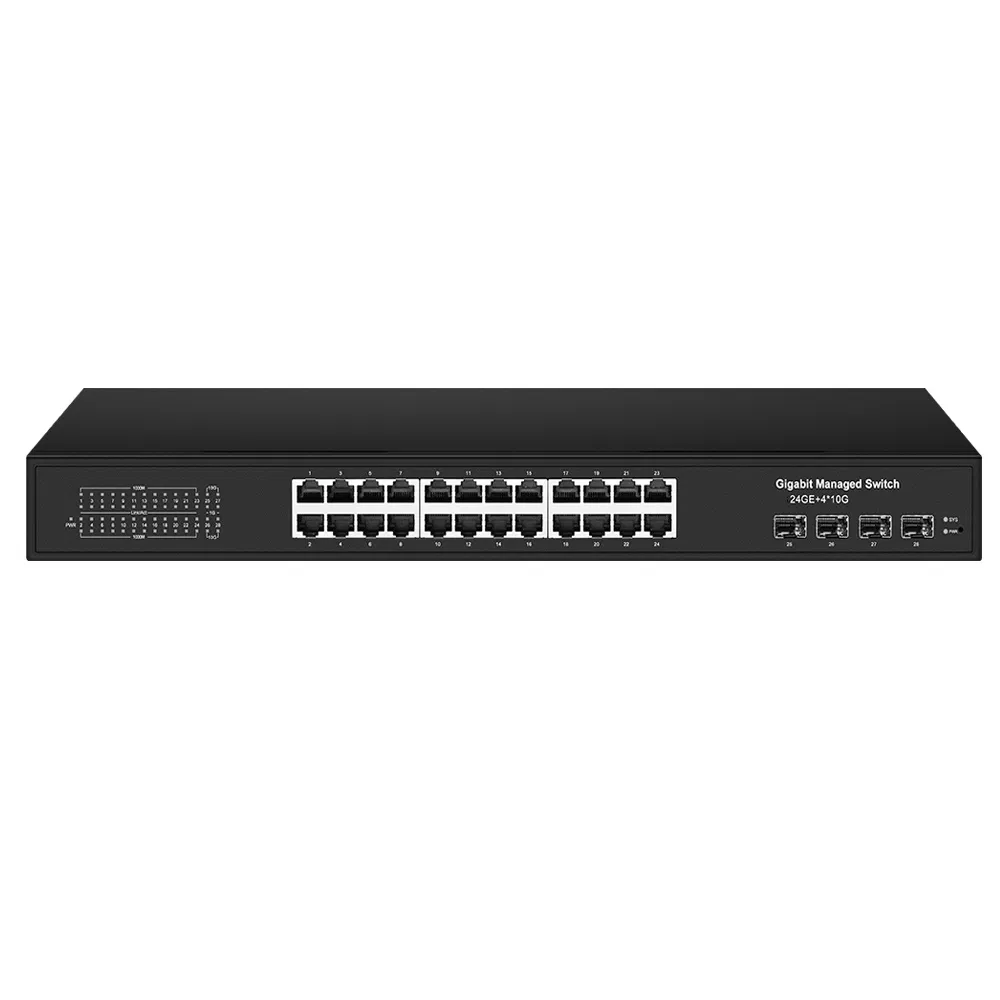

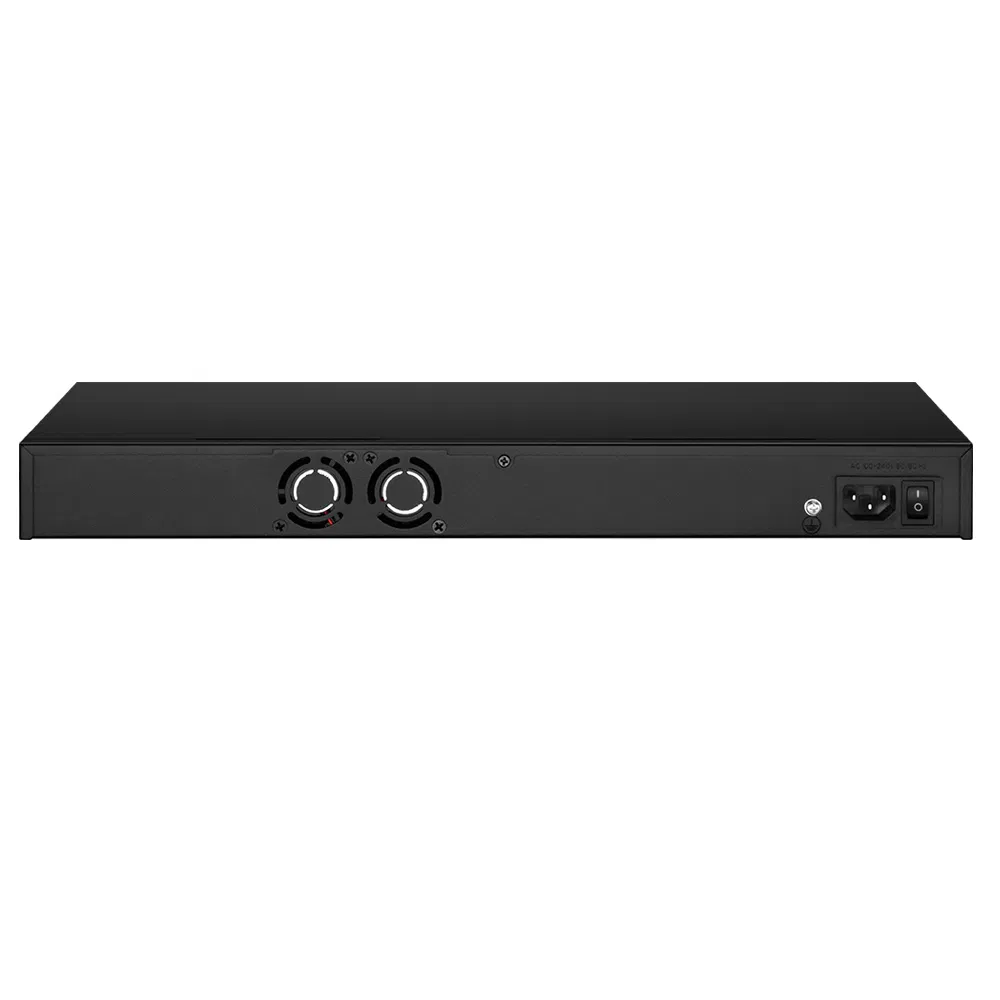

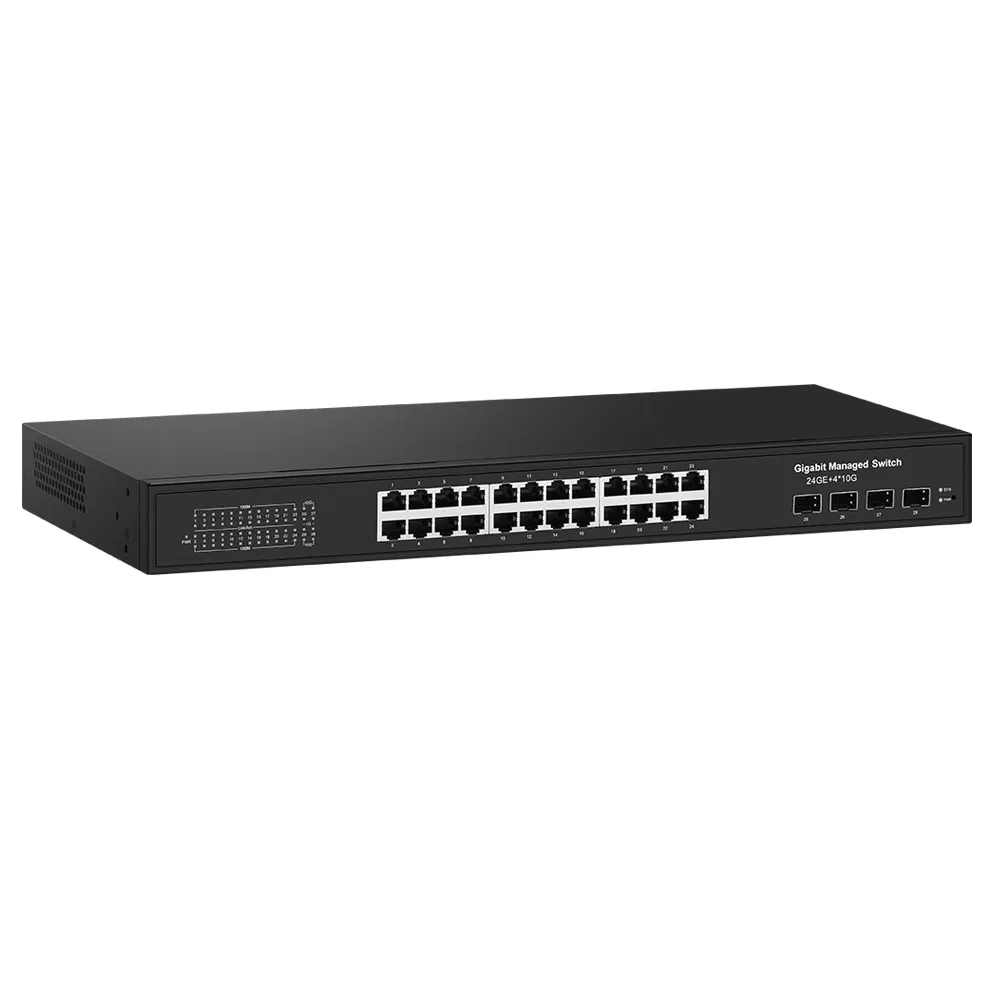

24 Ports Poe Switch Smart Web Managed 4*SFP+ 10g Uplink Support 802.3bt 90W Output
10G uplink POE Switch web managed Model S3024P-4SEProduct name4*10G SFP+ uplink 24 Port GIGA Poe smart web switchFixed Port24*10/100/1000Base-TX PoE RJ45(Data+power)4*1G/10G SFP+Reset Key1Switch function1:DUMP/WEB on/off(enable/disable web management)2:Port isolation on/off3:Poe watchdog on/offPoE ......
Send Inquiry
Product Description
10G uplink POE Switch web managed
| Model | S3024P-4SE |
| Product name | 4*10G SFP+ uplink 24 Port GIGA Poe smart web switch |
| Fixed Port | 24*10/100/1000Base-TX PoE RJ45(Data+power) 4*1G/10G SFP+ |
| Reset Key | 1 |
| Switch function | 1:DUMP/WEB on/off(enable/disable web management) 2:Port isolation on/off 3:Poe watchdog on/off |
| PoE Port | 1-2 port supports PoE IEEE 802.3af/at/poe++/BT MAX 90W 3-24 port supports PoE IEEE 802.3af/at each port 30W |
| POE Total Power | ≤375W |
| CPU | MIPS-34Kc Up to 800MHz |
| DDR | 2G DDR3 1333MHz |
| Cache | 12M |
| FLASH | 16M |
| RAM | 128M |
| Bandwidth | 256Gbps |
| Packet Forwarding | 92.32Mpps |
| MAC Address | 16K |
| Network Protocol | IIEEE 802.3 ,IEEE 802.3 i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3 z,IEEE 802.3x IEEE802.3af/at/poe++/BT |
| Port Specification | 10/100/1000BaseT(X)Auto |
| Transmission Mode | Store and Forward (full wire speed) |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP (≤250 meter) 100BASE-TX : Cat5 or later UTP (≤100 meter) 1000BASE-TX : Cat6 or later UTP (≤1000 meter) |
| LED Indicator | PWR: Power LED SYS:(System LED) 1~24:(Link LED=10/100M Link,1000M=Gigabit Link) 1~24:(PoE LED=PoE on) 25 26:(SFP LED) |
| Power | Built-in power AC 100~240V 50/60HZ MAX Max Current 5A Max Power 400W |
| Operating Temperature/Humidity | -20~+55°C;5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
| Physical size | Product size: 440mm*290mm*45mm Packing size: 515mm*375mm*95mm |
| N.W/G.W(kg) | 3.5kg/4.3kg |
| Installation type | 1U Rack type, 19 " |
| Lightning protection level | 3KV 8/20us; IP30 |
| Certificate | CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS; |
| Warranty | Whole device for 1 year(Accessories not included) |
| Software function list | |
| Poe management | Poe port switch |
| Poe protocol type configuration | |
| Poe port restart | |
| Poe log function configuration | |
| Poe port status, current, power and voltage display | |
| system state | Support system information display |
| Support port exception protection display | |
| Support port bandwidth usage display | |
| Support link aggregation display | |
| Support static / dynamic MAC address table display | |
| Support Chinese / English language switching | |
| network configuration | Support management IP address configuration |
| Support system time configuration | |
| Port | Support port status, rate and flow control configuration |
| Support port mirroring | |
| Support port exception protection (BPDU / self ring, broadcast flooding, ACL, DHCP message speed limit, etc.) | |
| Support link 8 group aggregation | |
| Support IEEE configuration | |
| Support mega frame configuration | |
| Support port isolation configuration | |
| VLAN | Support 4094 VLAN addresses |
| Support 802.11Q VLAN, MTU VLAN, terminal VLAN | |
| MAC | Support static MAC address table |
| Support dynamic MAC address table | |
| Support MAC address transition table | |
| Survival tree protocol | Support STP/RSTP/MSTP tree protocol |
| IGMP | Support IPv4 / IPv6 multicast forwarding |
| Support IPv4 / IPv6 static routing | |
| Support IPv4 / IPv6 port restrictions | |
| IGMP snooping V1 / V2 / V3 supported | |
| Security | Support management VLAN |
| Support management and maintenance mode selection | |
| Q0S | Supports 8 port queues |
| Support port priority, cos priority, 802.1p priority and DSCP priority | |
| Support port speed limit and exit queue speed limit | |
| Equipment diagnosis | Support log function configuration |
| Support remote log server configuration | |
| Support ping function | |
| Support traceroute test | |
| Support electrical port test | |
| Support optical module information diagnosis | |
| Equipment management | Support user configuration |
| Support web / TFTP / HTTP firmware upgrade | |
| Support profile import and export | |
