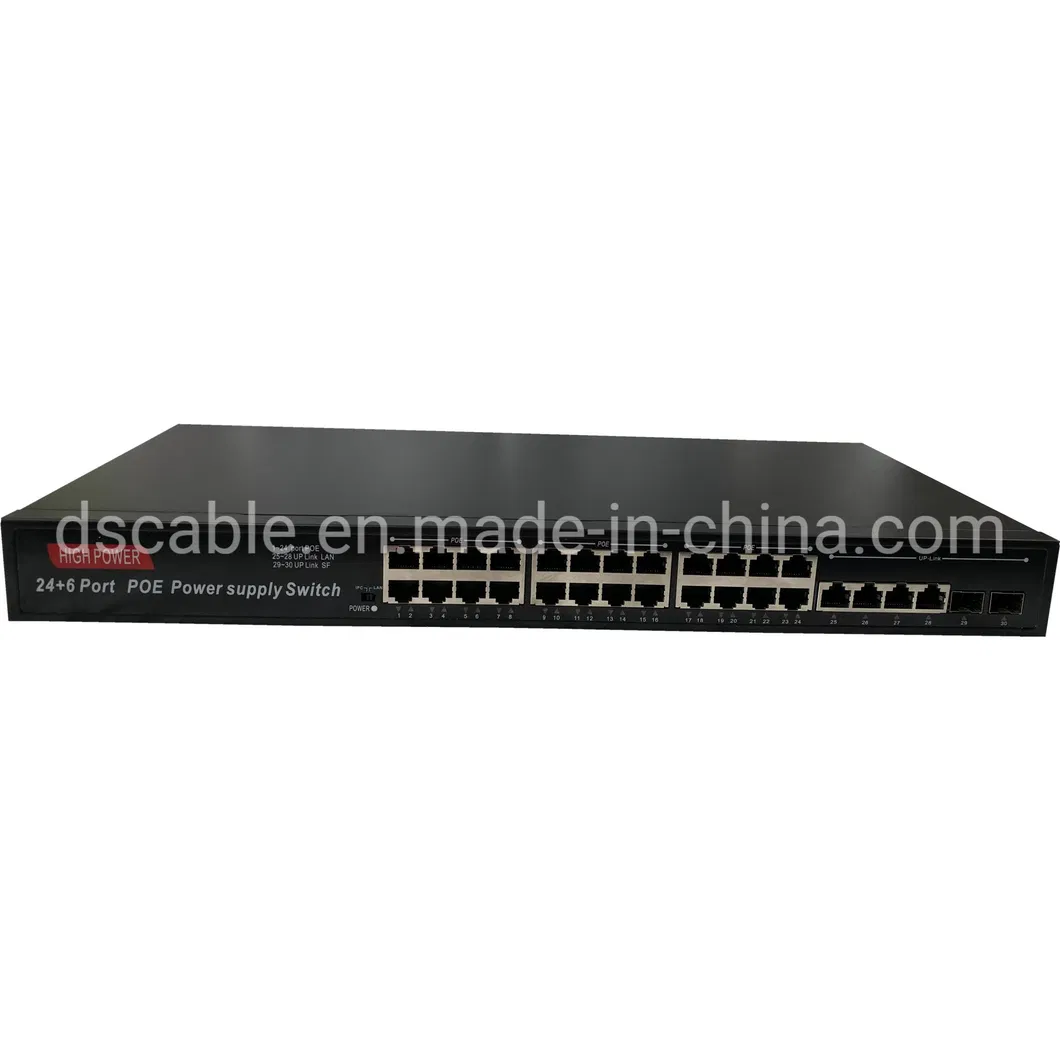

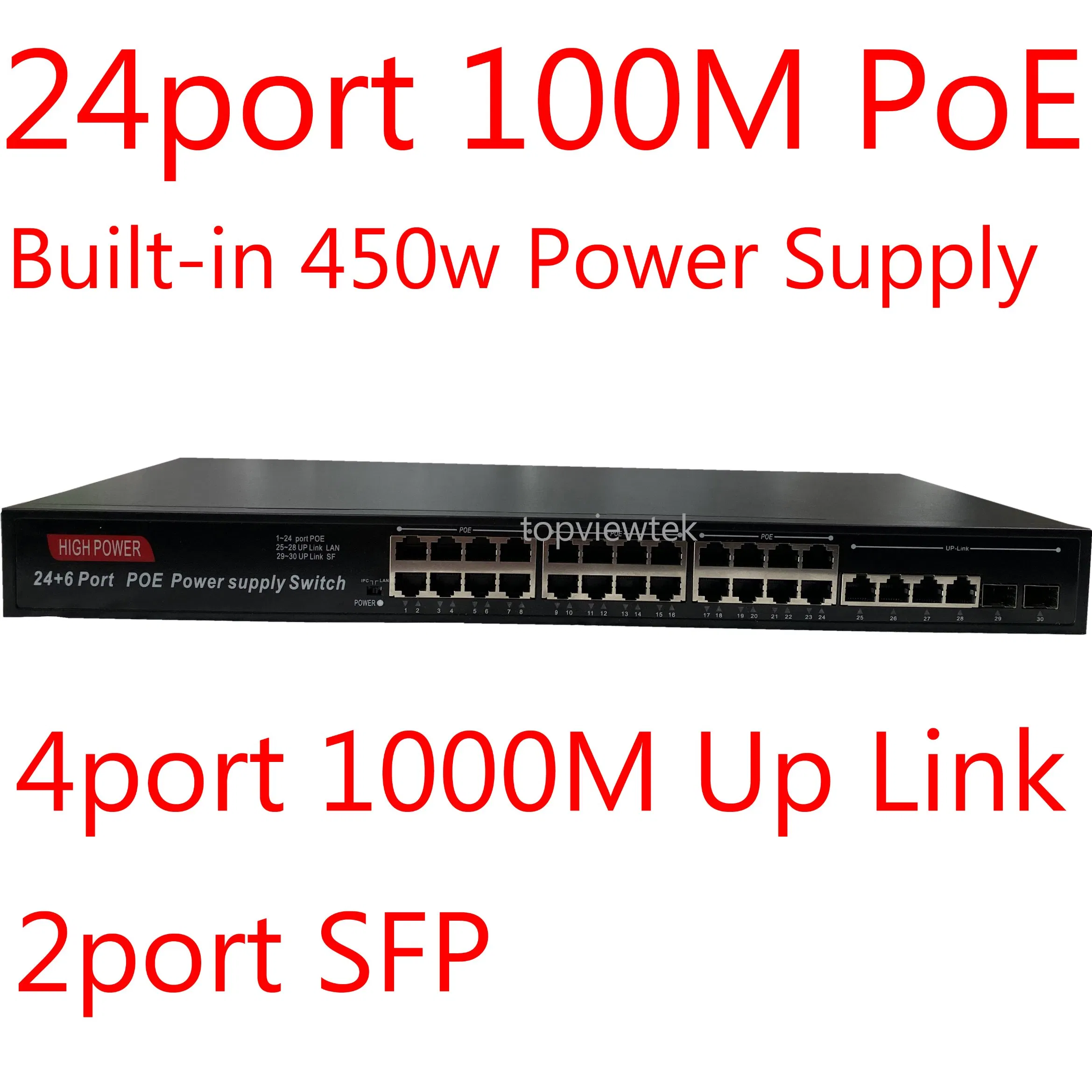

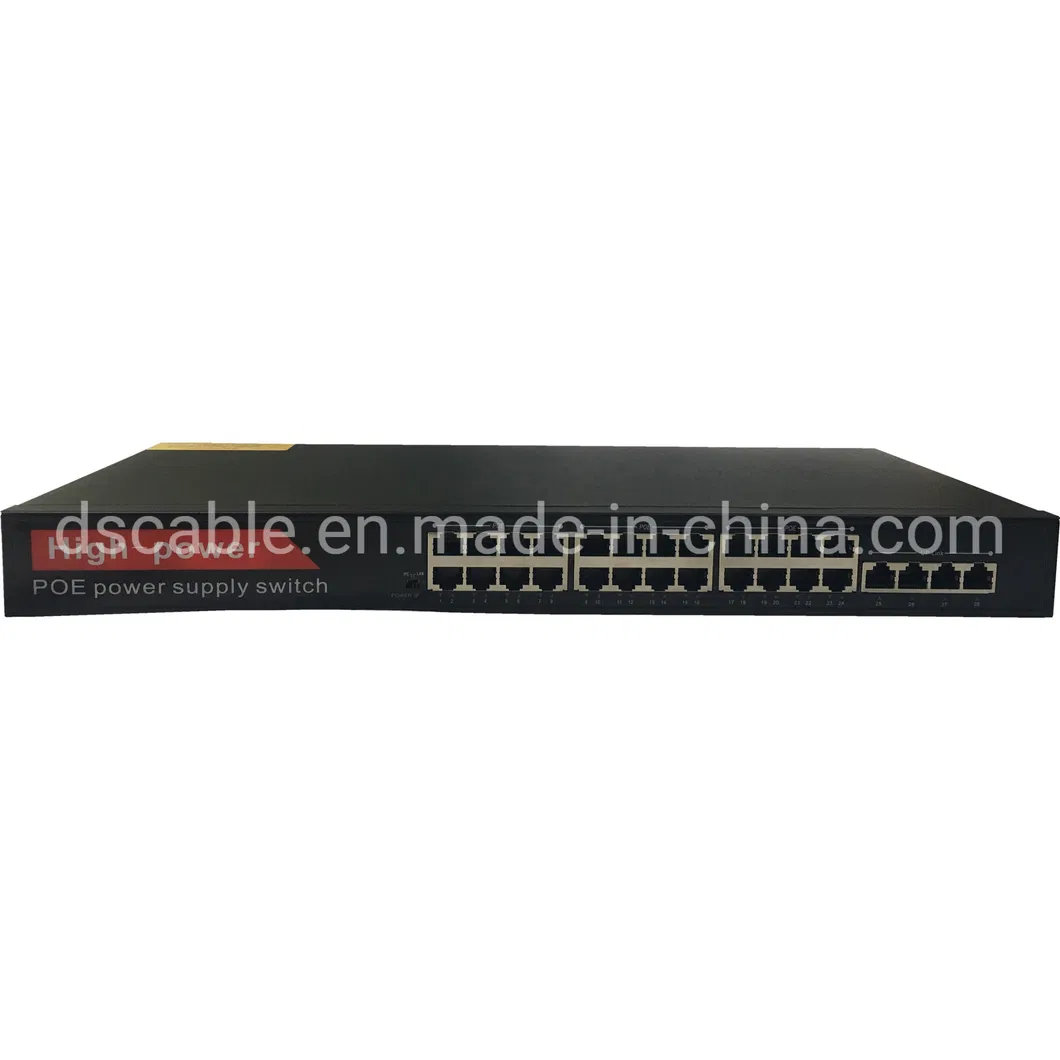

24 Ports CCTV Poe Network Switch with 4ports Gigabit 2ports SFP up Link

24 Ports CCTV Poe Network Switch with 4ports Gigabit 2Ports SFP Up Link

Factory make different PoE Switch,we accept small order OEM,welcome inquiry!

Description:
The  24ports unmanaged PoE switch with upto 4port 1000M Ethernet and 2port SFP Uplink Port that requires no configuration and provides 24 PoE (power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at Compliant powered devices (PDs). in this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP cameras or IP phones, etc.  Interface Available:4/16/24 x 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX.

Key Features:
Universal PoE switch for IP security cameras
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
10/100 Mbps speed ports with Auto Uplink
Each of PoE port supports maximum 15.4W
Total maximum power for all PoE ports is 450W
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Auto-sensing, output power supply, when connects to PoE IP cameras.
Automatically disconnect power, when IP camera is disconnected
Each port with LED indicators for monitoring power, link, data and speed
Adopting external power adapter supply for easy installation
Safe and Reliable Power to WLAN Access Points

Specifications:

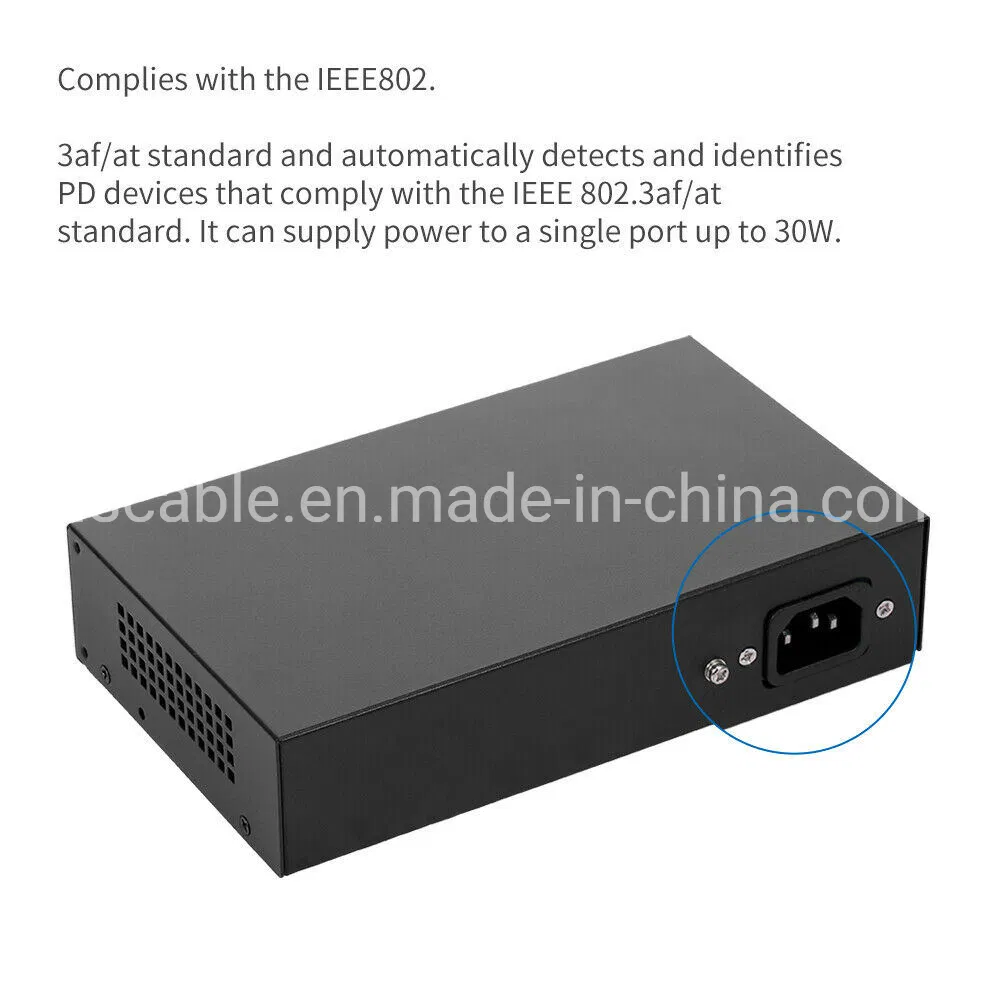

Standard: IEEE802.3af/at
Power Adapter Voltage: AC110~260V,DC48-55V.
Power Consumption: 450W max(ports 1~24)
PoE Power Consumption: af≤15.4W
Network Port: 8port: 10/100Mbps POE Ethernet port; 4 Port Uplink:10/100/1000Mbps,
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance:250M(820FT.) max
Internal power supply(US/EU/UK/AU Power Cable optional)

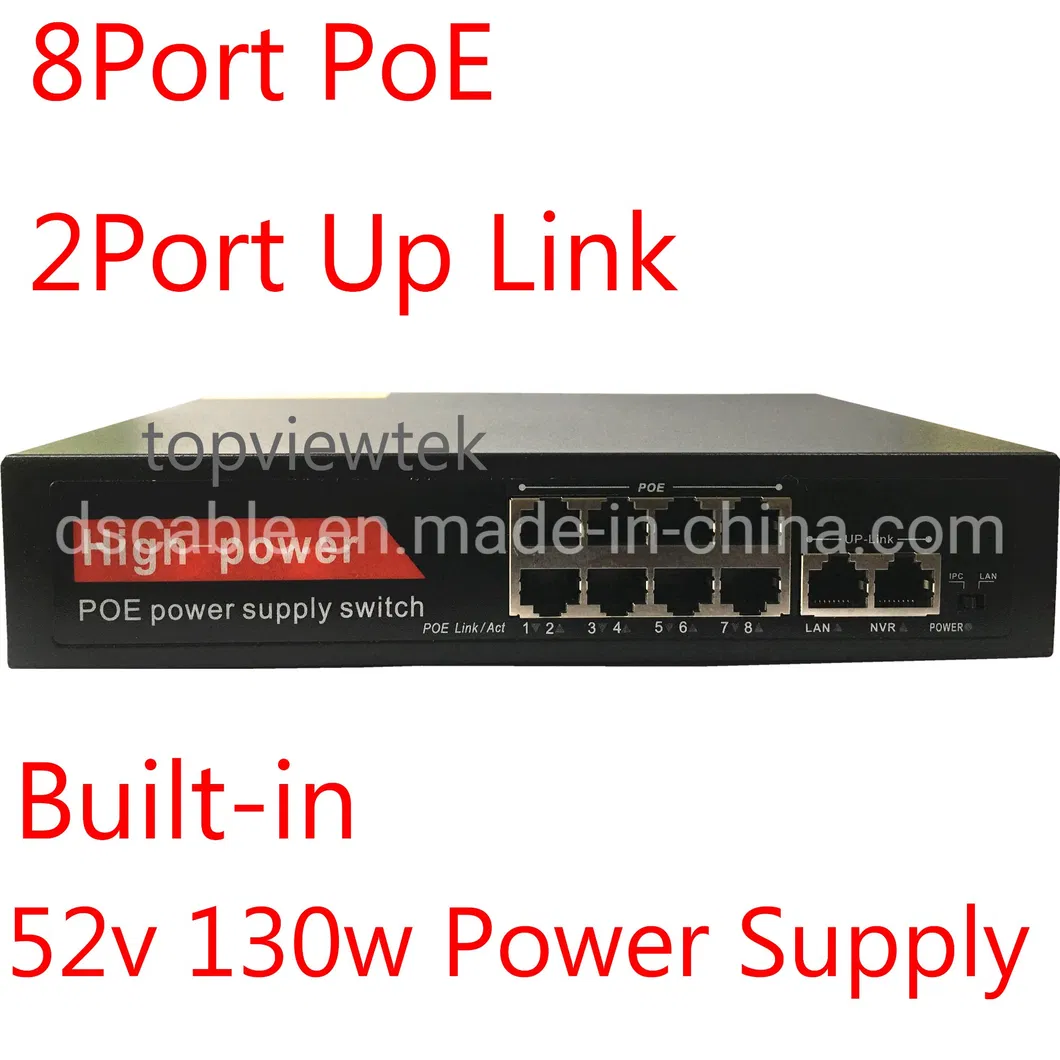

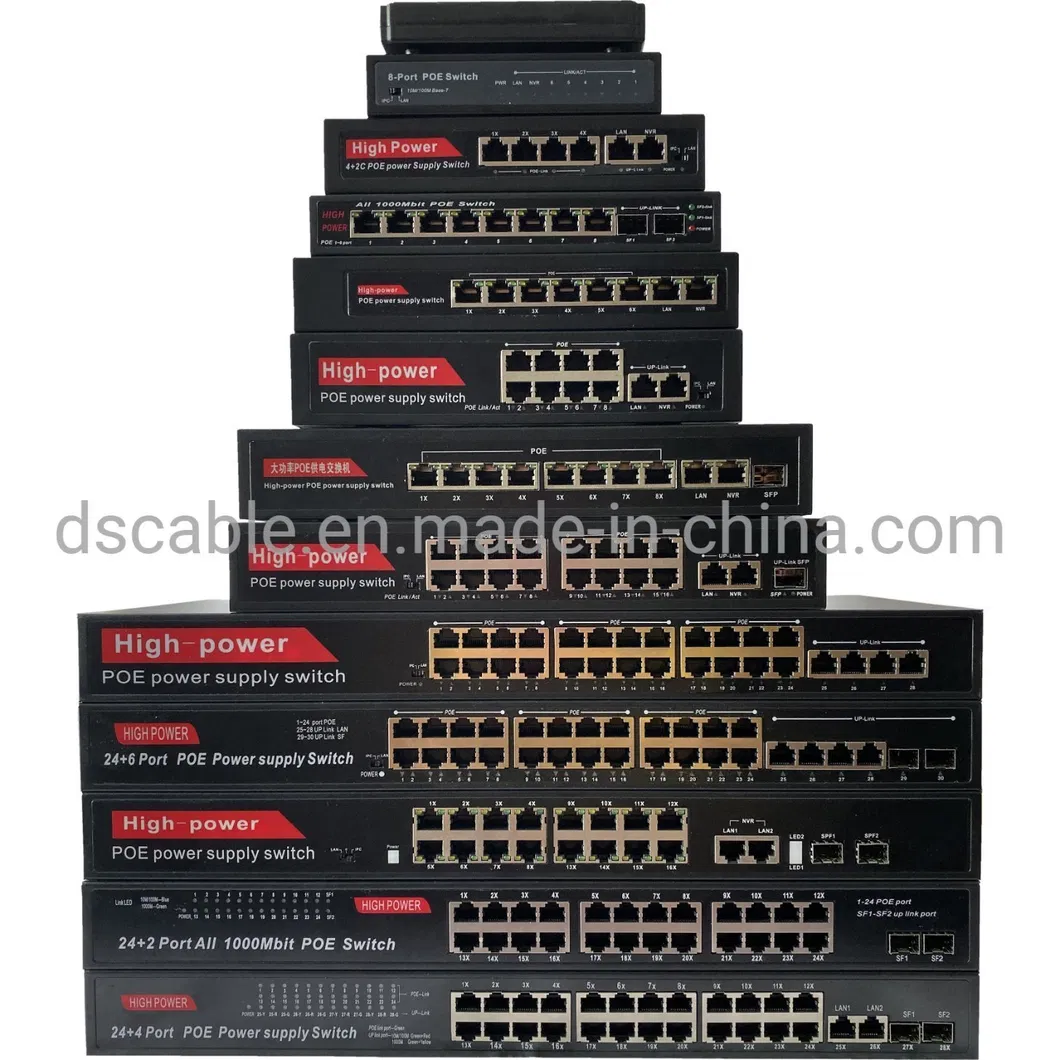

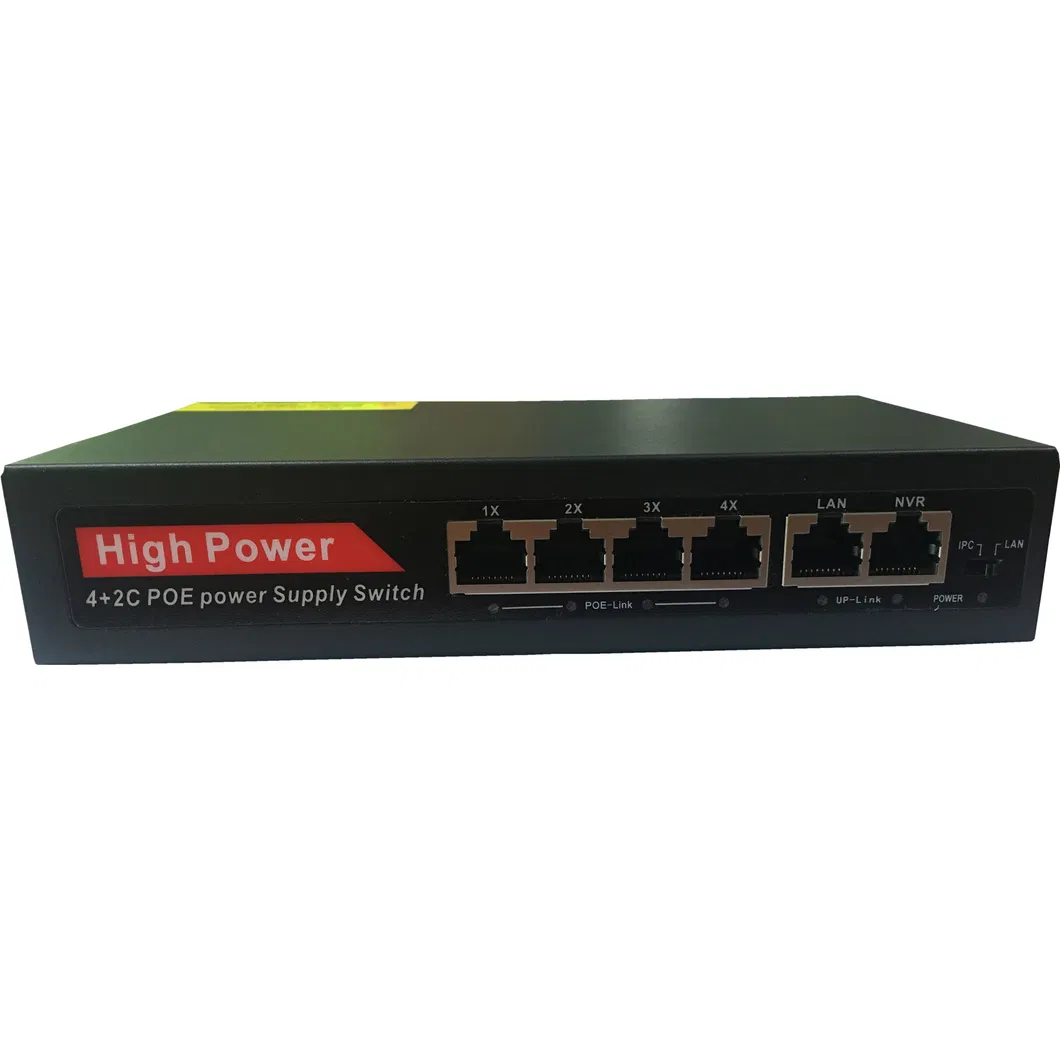

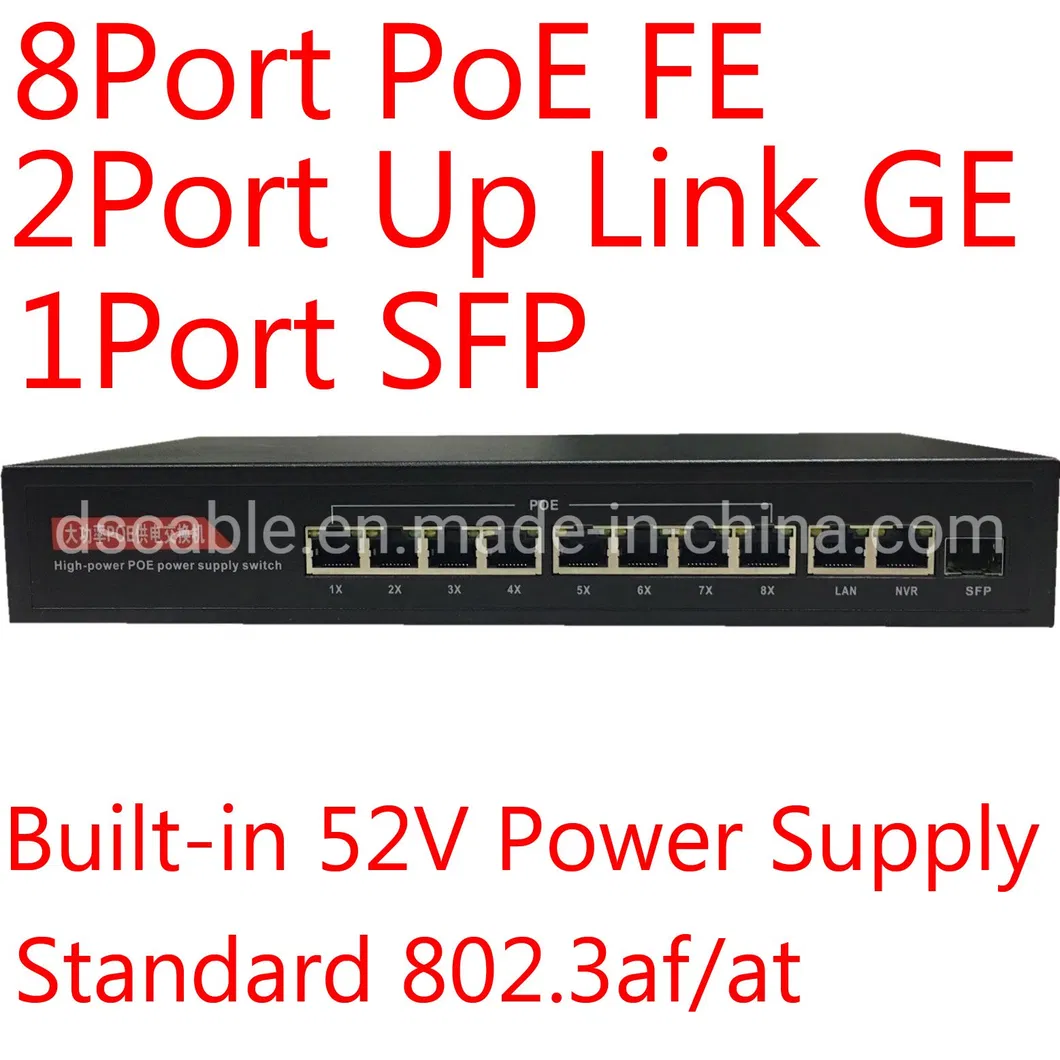

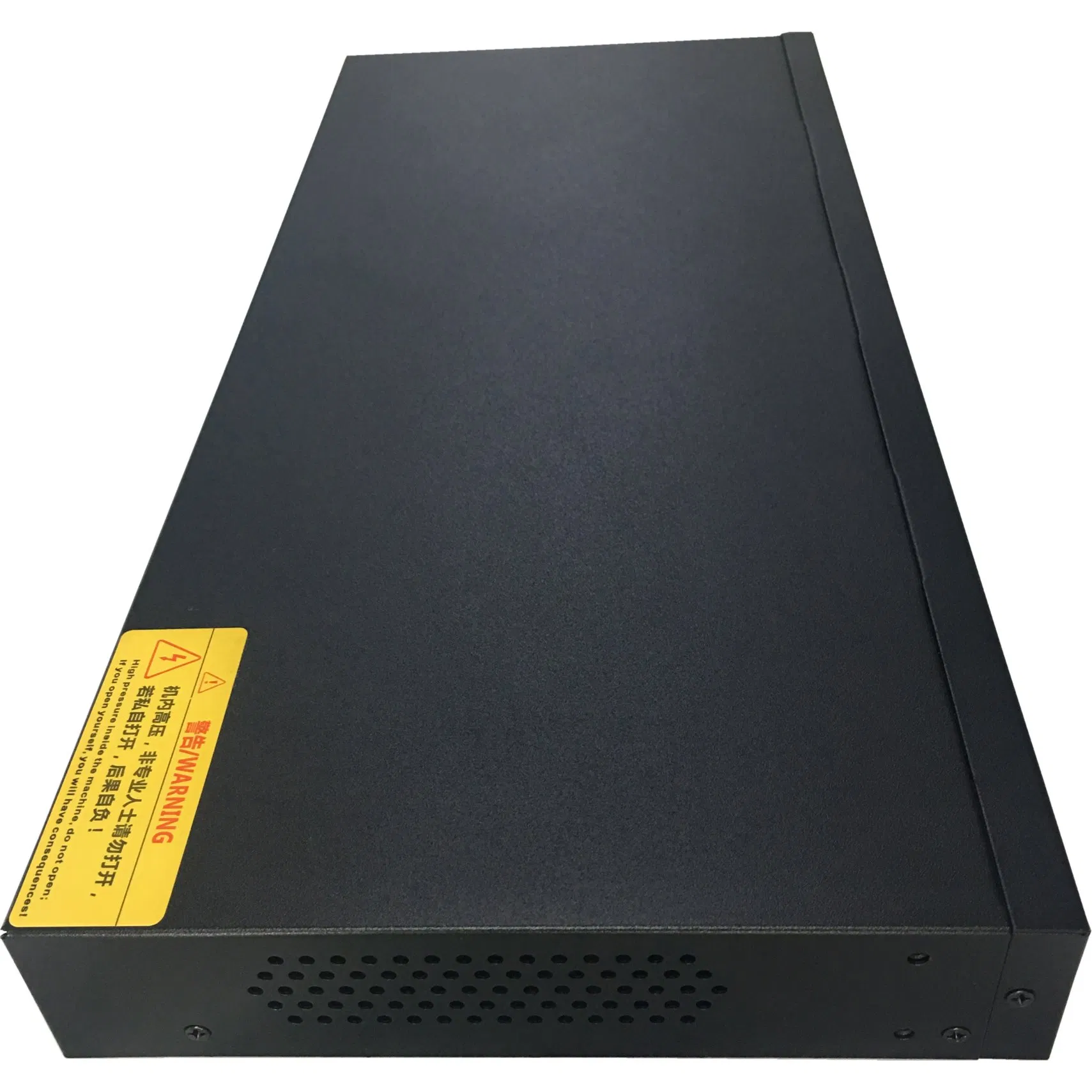

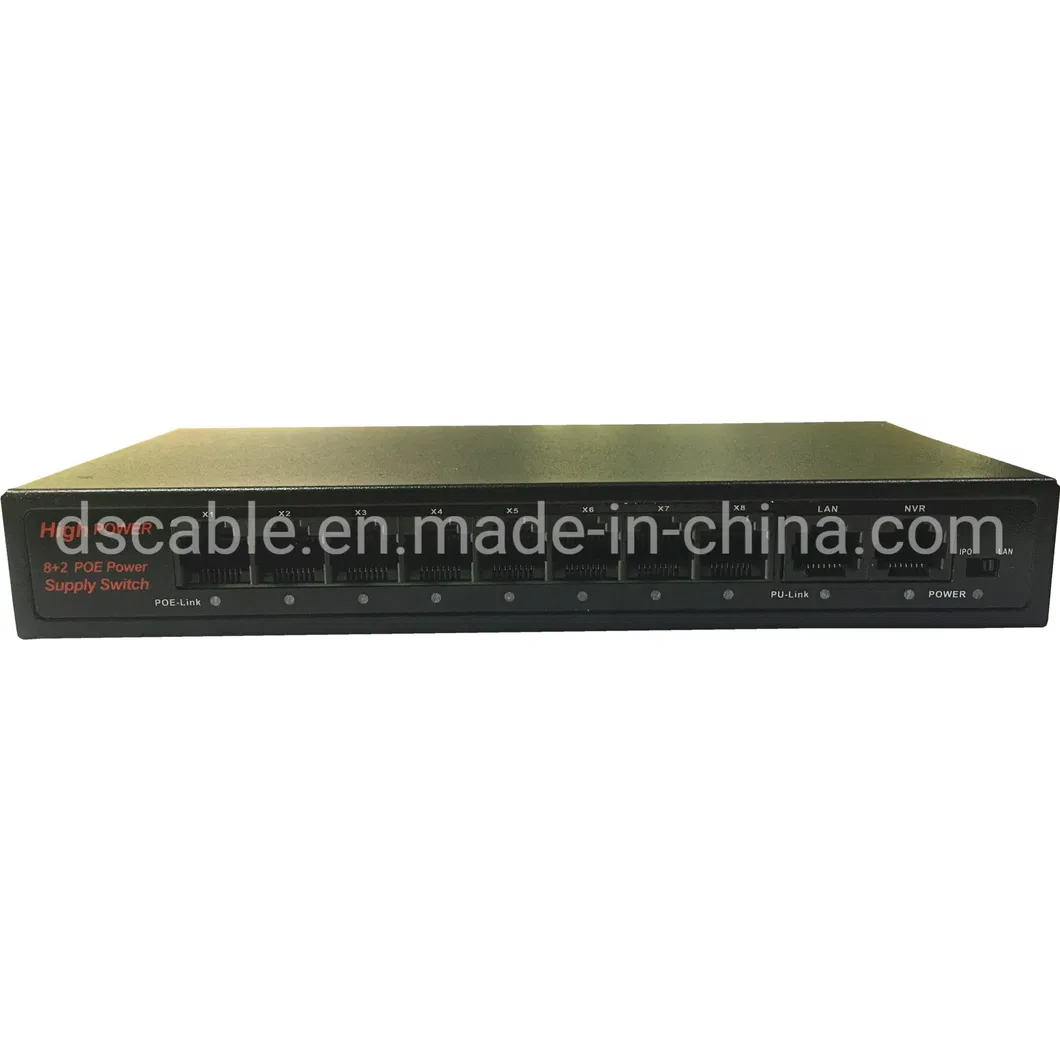

Picture:
