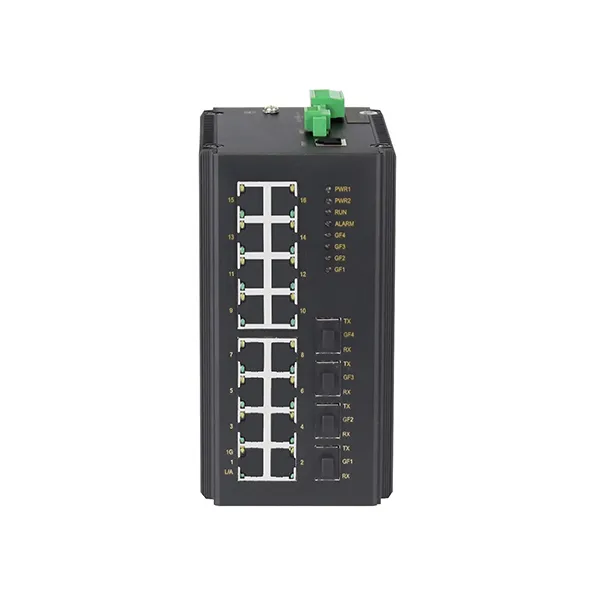

20-Port Gigabit Layer 2 DIN-Rail Managed 16 Ports +4 SFP Ports Industrial Ethernet Network Switch
20-Port Gigabit Layer 2 DIN-Rail Managed 16 ports +4 SFP ports Industrial Ethernet network SwitchProduct DescriptionTELCOM7220 Gigabit managed industrial Ethernet switch provides a high-end industrial Ethernet communication solution for flexible and variable industrial applications, breaking throu......
Send Inquiry
Product Description

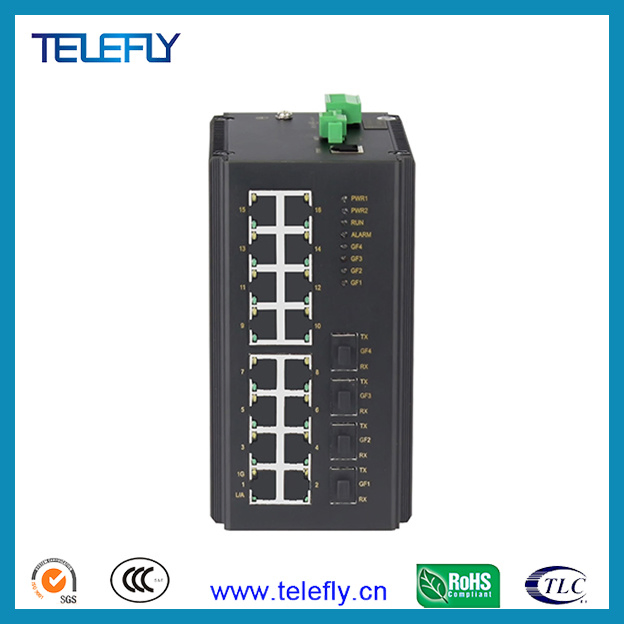

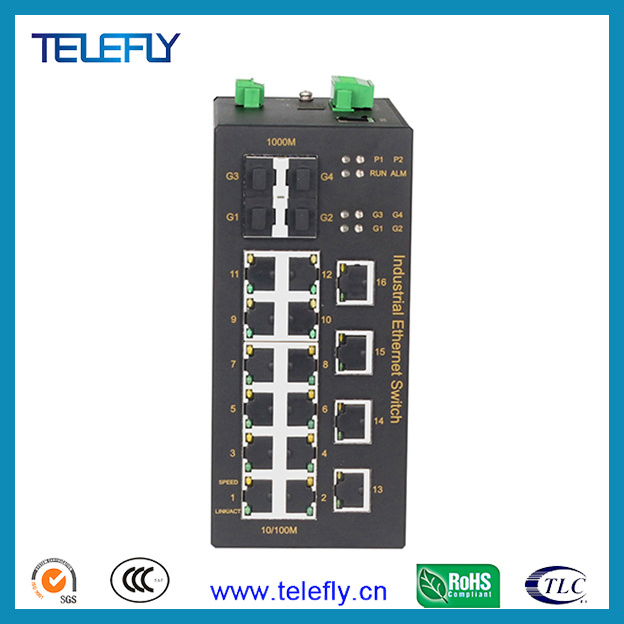

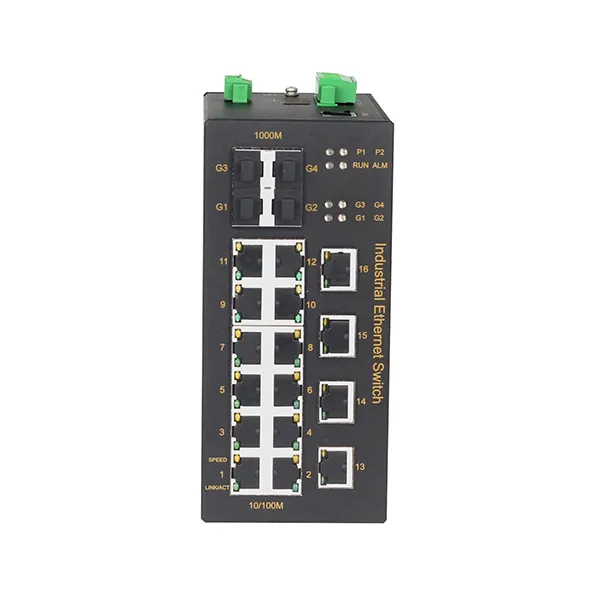

20-Port Gigabit Layer 2 DIN-Rail Managed 16 ports +4 SFP ports Industrial Ethernet network Switch
Company Profile
Product Description
TELCOM7220 Gigabit managed industrial Ethernet switch provides a high-end industrial Ethernet communication solution for flexible and variable industrial applications, breaking through the 100M backbone network communication bottleneck and making industrial communication smoother, more reliable and faster, to meet the needs of customers to continuously innovate for value-added applications.
Features and Benefits
-4 Gigabit SFP ports + 16x100MBased ports
-Support visiting the switch by CLI
-Support EAPS, MSTP, VRRP various redundancy protocol
-Support the SNMP, PMON, Telnet network management protocol
-Support the hardware ACL filtration based on L2-L7 layers data
-Supports real-time broadcast storm monitoring control/rate limit
-Support static multicast/dynamic IGMP snoopin/multicast traffic filtering
-Support port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe
-Online software update based on FTP/TFTP
-Wide working temperatures range -40 to 85°C
-MTBF≥ 300,000hrs
Specifications
Specifications
| Software performance | |
| Redundancy protocol | Support MW-Ring and the recovery time<50ms |
| Support STP/RSTP/MSTP/EAPS/LACP | |
| Multicast routing | Support IGMP snooping/ IGMP v1/v2/v3 |
| Support GMRP | |
| Support static multicast | |
| Management and maintenance | Support Console and Web management methods |
| Support SNMPv1/v2c | |
| Support unified PC software management | |
| Technical specifications | |
| Ethernet Standard | IEEE802.3-10BaseT |
| IEEE802.3u-100BaseTX/100Base-FX | |
| IEEE802.3x-Flow Control | |
| IEEE802.3z-1000BaseLX | |
| IEEE802.3ab-1000BaseTX | |
| IEEE802.1ab | |
| IEEE802.1D-Spanning Tree Protocol | |
| IEEE802.1w-Rapid Spanning Tree Protocol | |
| IEEE802.1Q -VLAN Tagging | |
| IEEE802.1p -Class of Service | |
| IEEE802.1X-Port Based Network Access Control | |
| Switch properties | |
| Priority queue | 4 |
| VLAN ID | 1-4096 |
| IGMP Groups | 256 |
| MAC table | 8k |
| Switch Bandwidth | 12.8Gbps |
| Switch Latency | <5μs |
| Interface | |
| Gigabit port | Port numbers: 4 |
| Connector: SFP for fiber port(LC, single or multi-mode)or adaptive 10/100/1000M-Tx module | |
| Baud rate:1000Base-LX(fiber port), 10/100/1000M auto-negotiation for copper port | |
| 10/100Base port | Port numbers:16 |
| Connector:9 fixed FX(single/multi-mode; SC/FC/ST) or RJ45 port | |
| Baud rate:100Base-FX; auto-negotiation 10/100Base-Tx | |
| Console port | RS232/RJ45 |
| Terminal block for power input | 5.08mm terminal block |
| Terminal block for relay alarm | 5.08mm terminal block,1A@24VDC |
| Communication distance | |
| Twisted-pair | 100m(CAT5/CAT5e cable) |
| Multi-mode fiber | Gigabit multi-mode: 850nm 550m; |
| 10/100Base multi-mode: 1310nm 2km | |
| Single mode fiber | Gigabit single mode: 1310nm 20km; |
| 10/100Base single mode:1310nm 20/40km;1550nm 60/80km | |
| LED indicator lights | |
| Front panel LED lights | Port light: LINK/ACT; SPEED; Gx |
| Running light: RUN | |
| Power LED: PWR1/PWR2 | |
| Power requirements | |
| Power input | DC12V/DC24V/DC48V/AD220V available |
| Full-load consumption | <14W |
| Overload protection | support |
| Inversed protection | support |
| Redundancy protection | support |
| Working environment | |
| Operating Temperature | -40°C~85°C |
| Storage temperature | -40°C~85°C |
| Ambient Humidity | 5%~95%( non-condensing) |
| Physical characteristics | |
| Shell | IP40 protection, aluminum alloy shell |
| Installation | 35mm din rail-mounted installation |
| Dimension | 72mmx156mmx120mm |
| Industry standard | |
| EMC | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS), Level 4 | |
| EN61000-4-4(EFT), Level 4 | |
| EN61000-4-5(Surge), Level 4 | |
| EN61000-4-6(CS), Level 4 | |
| EN61000-4-8, Level 5 | |
| Impact | IEC60068-2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
| Warranty | |
| Warranty period | 5 Years |
| Certification | CE, FCC, RoHS |
| Ordering Information | |
| TELCOM7220-4GF-DC12 | 4-port Gigabit SFP +16-port 10/100 Tx, redundant DC12V(9~18V) isolated power supply |
| TELCOM7220-4GF-DC24 | 4-port Gigabit SFP +16-port 10/100 Tx, redundant DC24V(18~36V) isolated power supply |
| TELCOM7220-4GF-DC48 | 4-port Gigabit SFP +16-port 10/100Tx, redundant DC48V(36~72V) isolated power supply |
| TELCOM7220-4GF-AD220 | 4-port Gigabit SFP +16-port 10/100Tx, AD220V(AC85- 264V/DC110~370V) isolated power supply |
| TELCOM7220-4GF-4F(M/S)-DC12 | 4-port Gigabit SFP +4-port 100 Fx +12-port 10/100 Tx, redundant DC12V(9~18V) isolated power supply |
| TELCOM7220-4GF-4F(M/S)-DC24 | 4-port Gigabit SFP +4-port 100Fx +12-port 10/100 Tx, redundant DC24V(18~36V) isolated power supply |
| TELCOM7220-4GF-4F(M/S)-DC48 | 4-port Gigabit SFP +4-port 100 Fx +12-port 10/100Tx, redundant DC48V(36~72V) isolated power supply |
| TELCOM7220-4GF-4F(M/S)-AD220 | 4-port Gigabit SFP +4-port 100Fx +12-port 10/100Tx, AD220V(AC85- 264V/DC110~370V) isolated power supply |

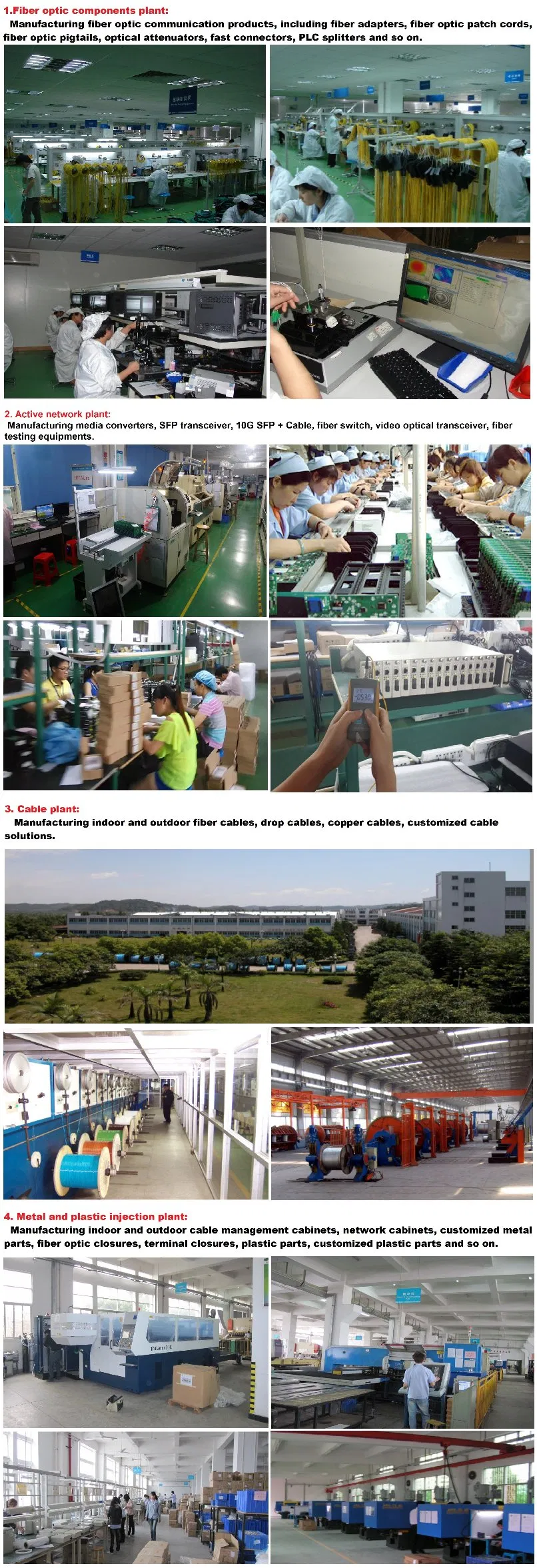

Company Profile
