2 Giga SFP and 4 10/100/1000Mbps Tx Port Fiber Media Converter (MARVELL 88E6161)
1. Product Overview MARVELL 88E6161 6 ports Gigabit Ethernet Switch has four 10/100/1000M UTP ports and two 1000M SFP sockets. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T,1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, ......
Send Inquiry
Product Description
1. Product Overview
MARVELL 88E6161 6 ports Gigabit Ethernet Switch has four 10/100/1000M UTP ports and two 1000M SFP sockets. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T,1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.

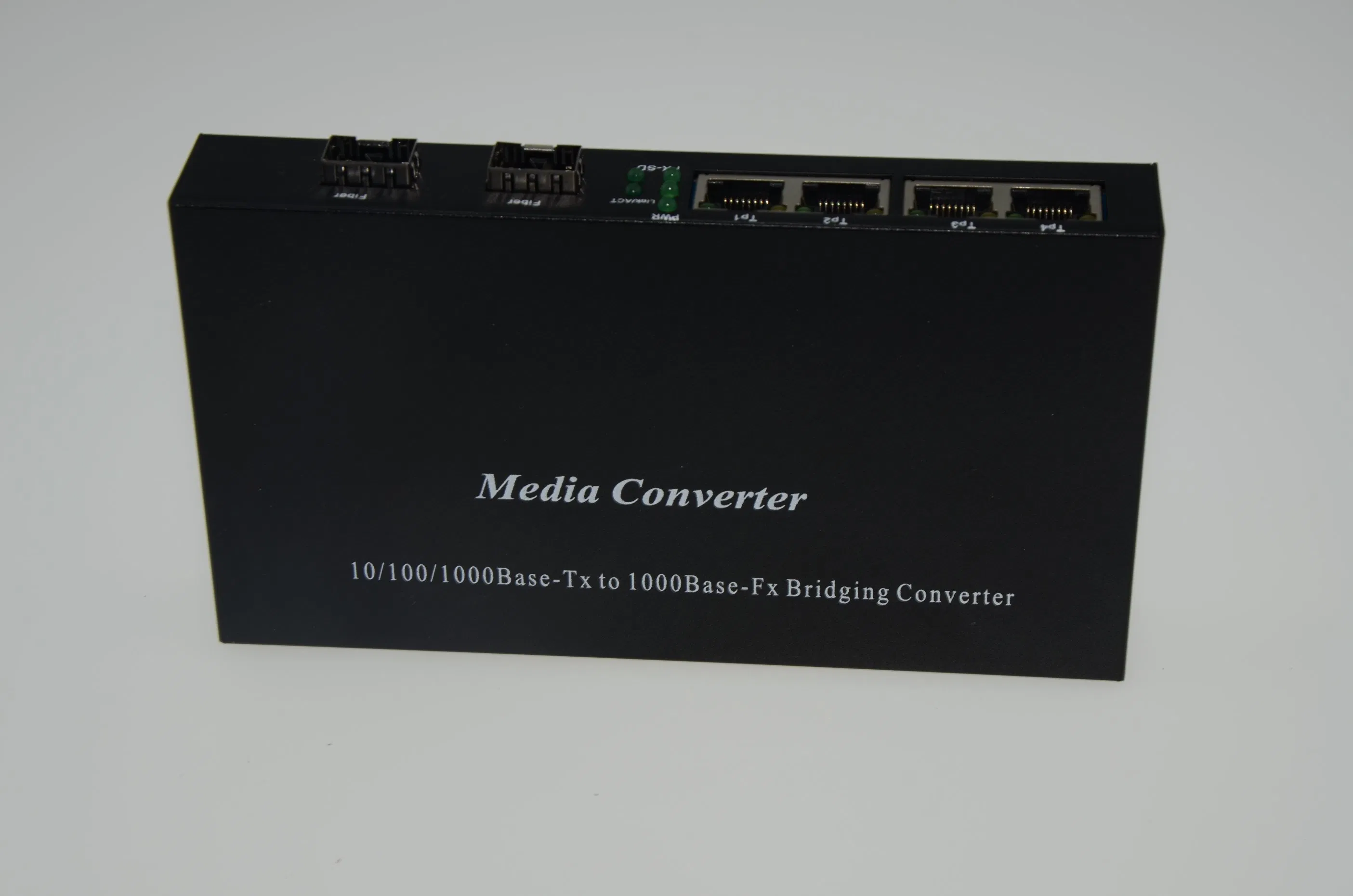

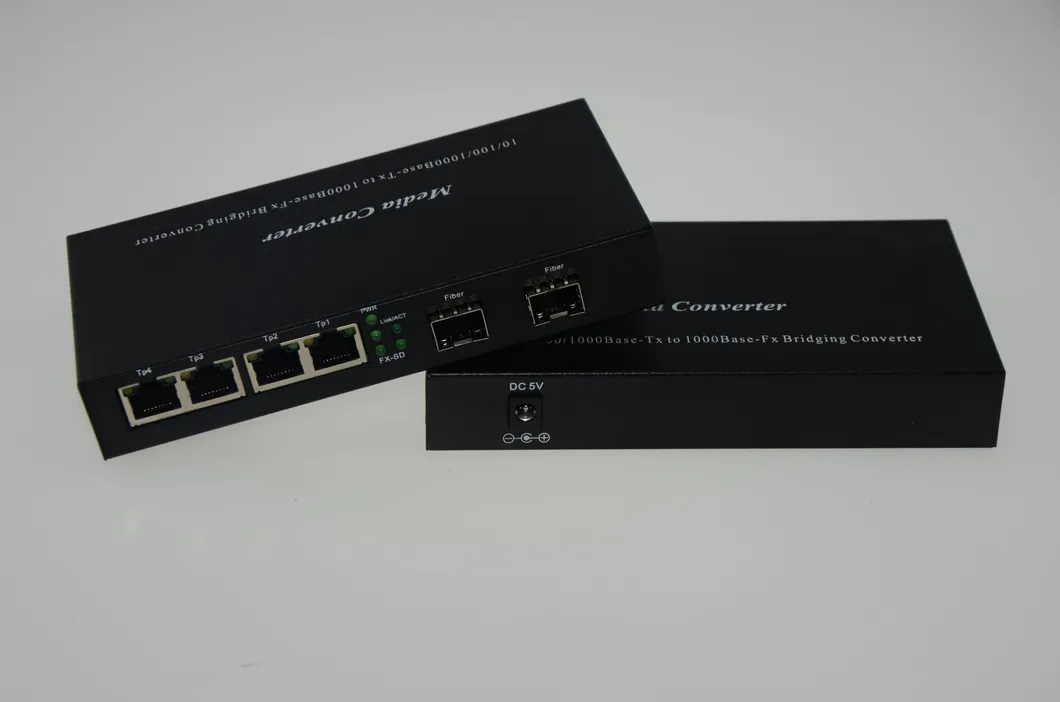

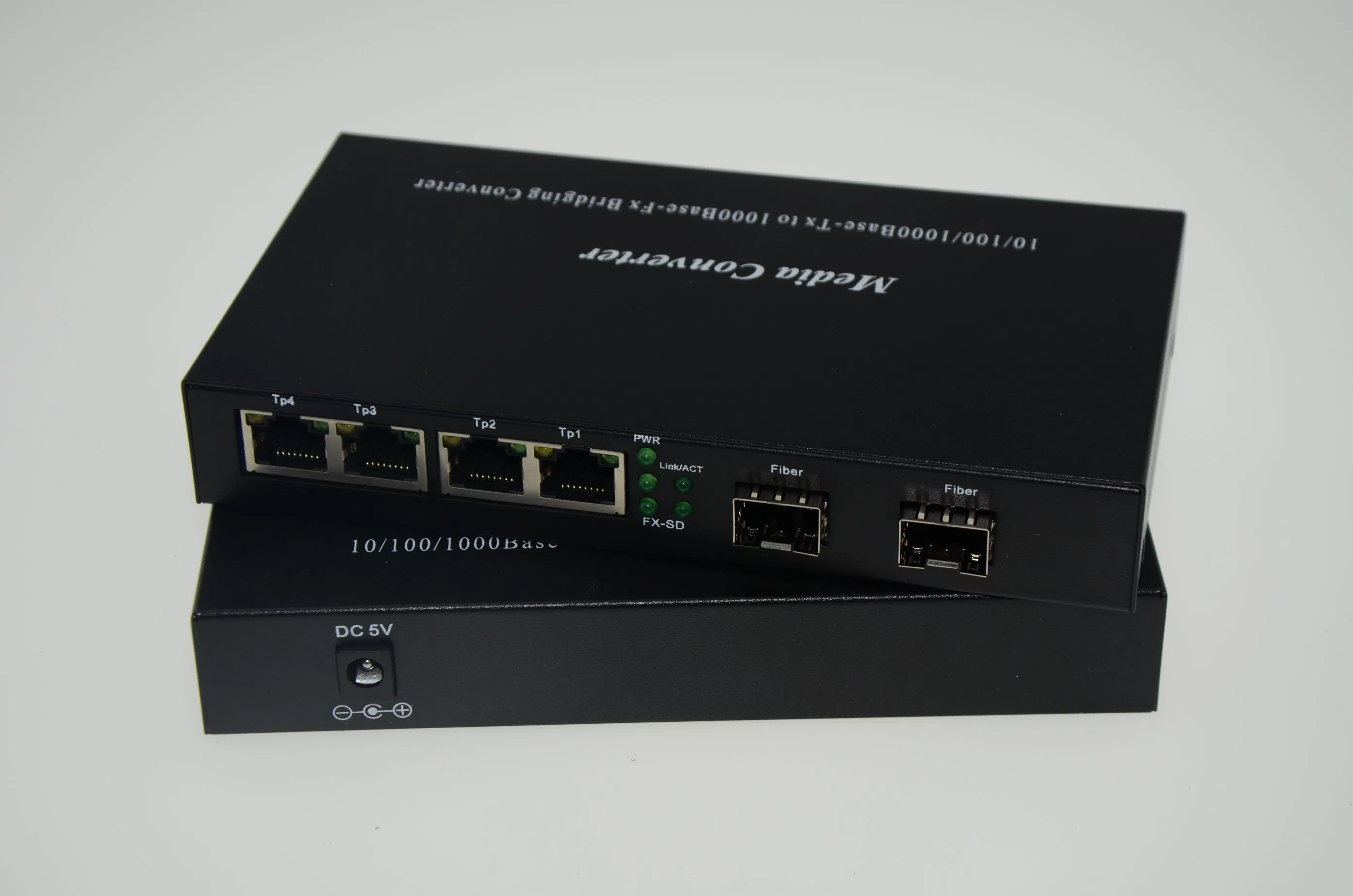

2. Product picture
3. Product characteristics
1.4 RJ45 electrical ports and 2 optical ports, between the twisted pair and the fiber, and between the ports
Seamless connection of network signals;
2. RJ45 electrical port can be adaptive 10/100/1000M, full / half duplex mode, straight line / cross line connection;
3. The optical port supports 1000BASE-X or 100BASE-FX mode, the default is 1000BASE-X;
4. Support flow control to prevent broadcast storms;
5. Can support VLAN, QoS, TPv4, TPv6;
6. Support for extra long packets of up to 10K byte;
Low power consumption (4W), low heat generation and good stability.
4. Technical parameters
5. Product structure diagram (mm)
MARVELL 88E6161 6 ports Gigabit Ethernet Switch has four 10/100/1000M UTP ports and two 1000M SFP sockets. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T,1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.

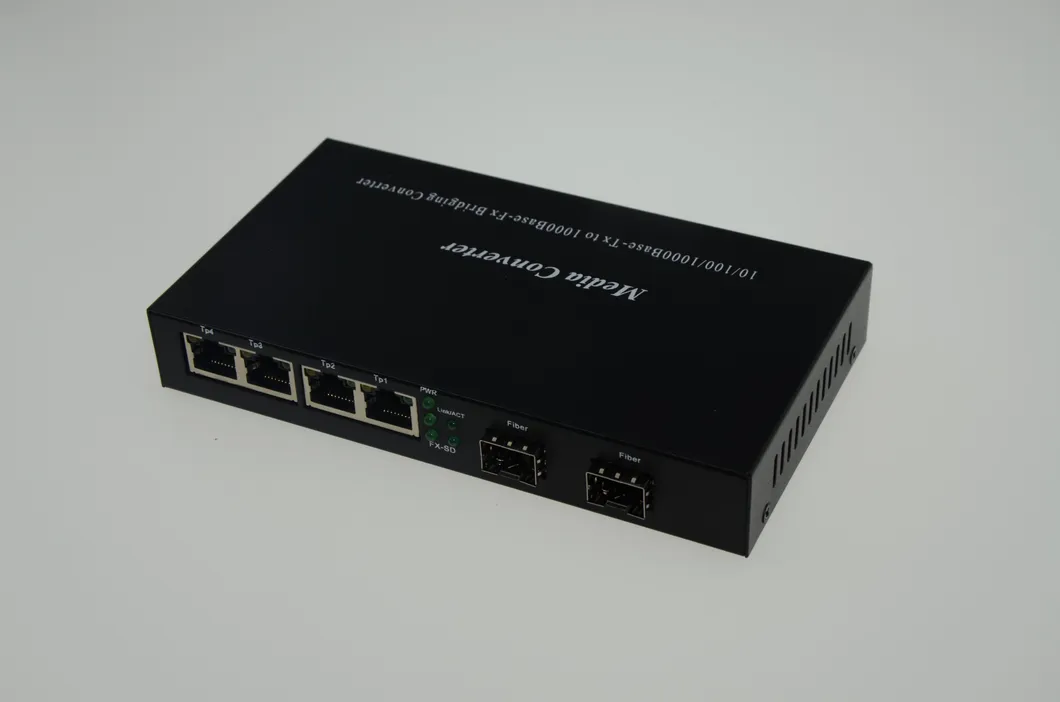

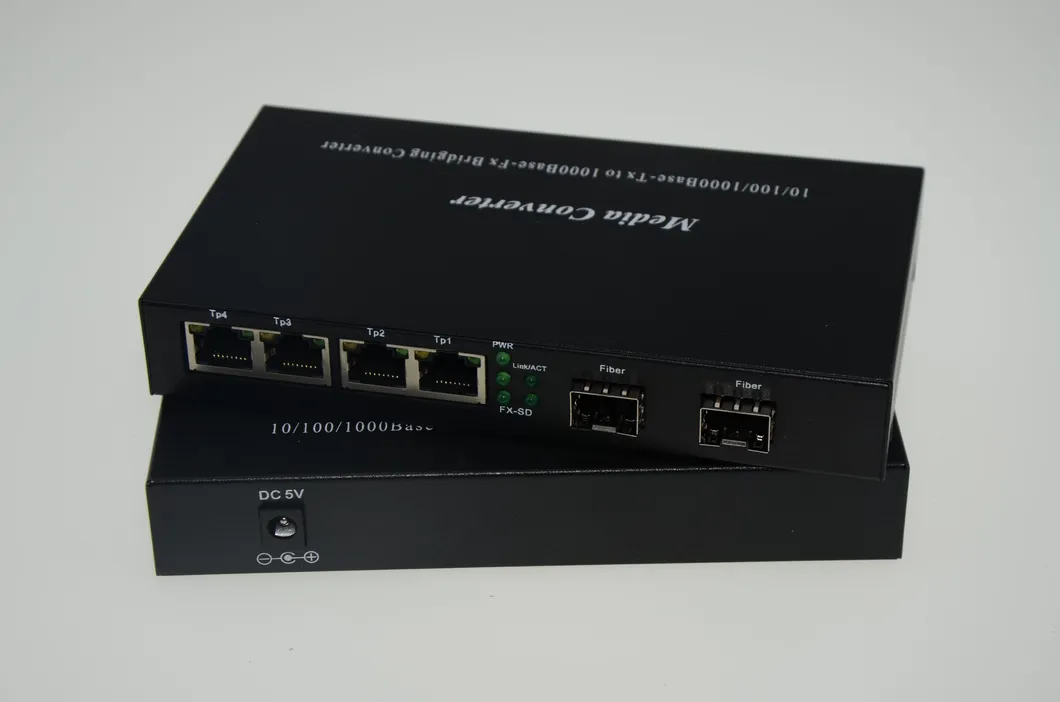

2. Product picture
3. Product characteristics
1.4 RJ45 electrical ports and 2 optical ports, between the twisted pair and the fiber, and between the ports
Seamless connection of network signals;
2. RJ45 electrical port can be adaptive 10/100/1000M, full / half duplex mode, straight line / cross line connection;
3. The optical port supports 1000BASE-X or 100BASE-FX mode, the default is 1000BASE-X;
4. Support flow control to prevent broadcast storms;
5. Can support VLAN, QoS, TPv4, TPv6;
6. Support for extra long packets of up to 10K byte;
Low power consumption (4W), low heat generation and good stability.
4. Technical parameters
| Project | 10/100/1000M fiber switch (2 optical port + 4 electrical port) Protocol standard IEEE802.3/u/z/ab, 10Base-T, 100Base-TX, 1000Base-T and 1000Base-SX/LX | ||||
| Ethernet address table | 1K | ||||
| Data buffer | 1M | ||||
| The backplane has a bandwidth of | 12G, enabling non-blocking wire-speed forwarding. | ||||
| Connector 4 electrical ports | RJ-45, 10/100/1000Mbps 2 fiber slots: 1000Mbps | ||||
| Cable Electrical port | CAT.5/6 UTP (maximum transmission distance 100m) | ||||
| Multimode fiber | 50/125μm, 62.5/125μm (maximum transmission distance / 550/224m) | ||||
| Single mode fiber | 8/125μm, 8.7/125μm, 9/125μm (maximum transmission distance 10~100 km) | ||||
| Flow Control Full Duplex: | IEEE802.3x Flow Control | ||||
| Half-duplex | back pressure flow control | ||||
| LED | PWR, Link/Act, FX-SD | ||||
| Power parameters DC | 5V, 2A | ||||
| Working temperature | 0 ~ +50 °C | ||||
| Storage temperature | -40 to +85 °C | ||||
| humidity | 5% ~ 90% | ||||
| size | 161 (long) × 89 (width) × 26 (height) mm | ||||
5. Product structure diagram (mm)
