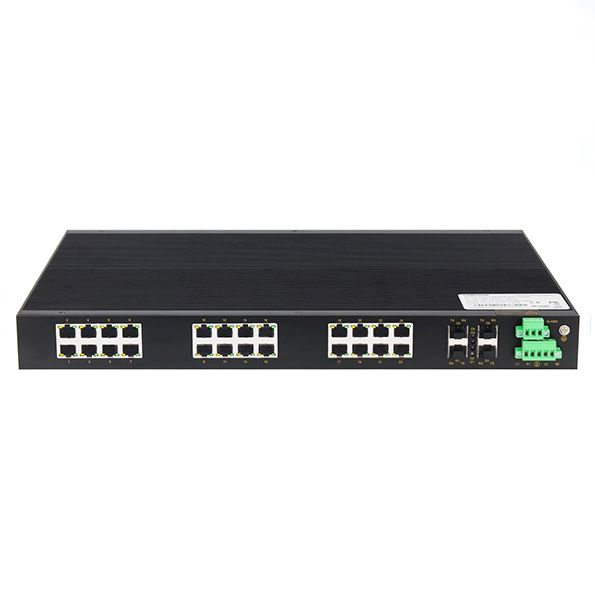

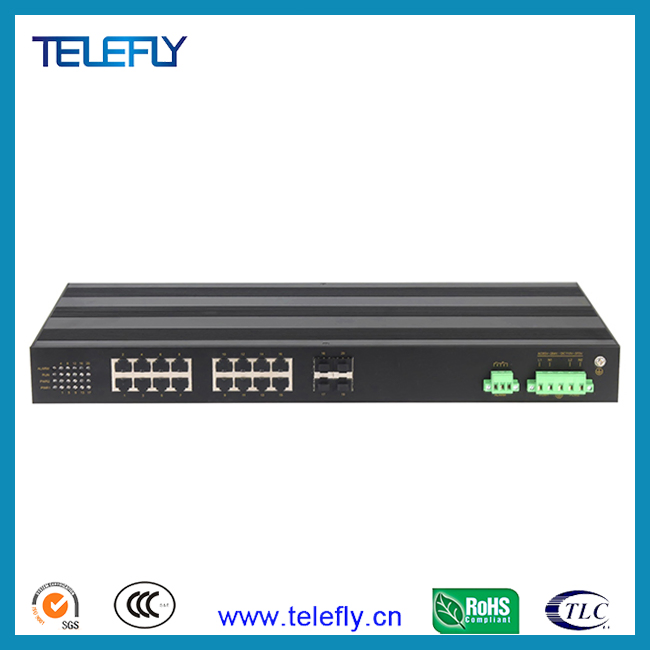

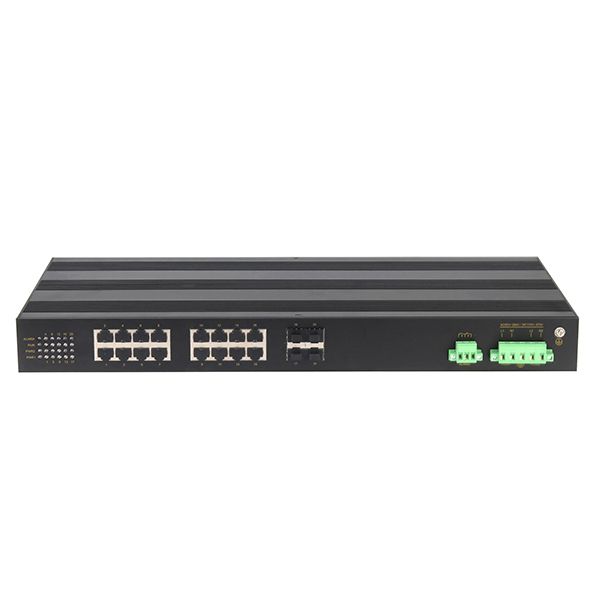

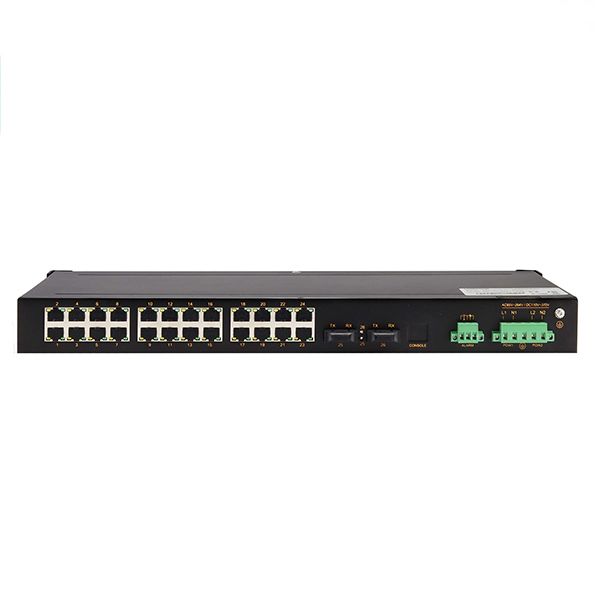

2 100m Fx Ports 24 10/100m RJ45 Ports Rack-Mount Unmanaged Industrial Ethernet Switch
Product DescriptionTELN3026 series rack-mount layer 2 unmanaged Industrial Ethernet Switch are developed by Maiwe for industrial communication. It can work once connected, all copperports support auto-negotiation and automatic MDI / MDI-X. It provides redundant power and supports wide range DC and A......
Send Inquiry
Product Description
Product Description
TELN3026 series rack-mount layer 2 unmanaged Industrial Ethernet Switch are developed by Maiwe for industrial communication. It can work once connected, all copperports support auto-negotiation and automatic MDI / MDI-X. It provides redundant power and supports wide range DC and AC power inputs as well.
Features and Benefits
-Support 1x100M FX port +24x10/100M RJ45 ports or 2x100M FX ports +24x10/100M RJ45 ports
-Support status display with front and back side indicator lights
-Start working once connected, quick and convenient
-Support isolated power supply, optional dual redundant power supply
-Support power-down status reply alarm output.
-Wide temperature range design, fanless thermal design
-Satisfy harsh industrial environment
Specificatiions
Specificatiions
| Technical parameters | |
| Protocol Standard | IEEE802.3(Ethernet), IEEE802.3u (100Base-TX&100Base-FX), IEEE802.3x (Flow control) |
| Switch capability | |
| MAC Table Size | 8k |
| Backplane bandwidth | 8.8Gbps |
| Switch Delay | <5μs |
| Interface | |
| 100M port | Number: 25 or 26 |
| Connector: 1×9 fixed fiber port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port | |
| Baud rate: 100Base-FX(fiberl port), Self-adaption 10/100Mbase-TX | |
| Terminal block for power input | 7.62mm terminal block |
| Terminal block for relay alarm | 5.08mm terminal block, 1A@24VDC |
| Communication distance | |
| Twisted-pair | 100m(CAT5/CAT5e cable) |
| Multi-mode fiber | 100M multi-mode: 1310nm, 2km |
| Single-mode fiber | 100M single-mode: 1310nm, 20/40km; 100M single-mode: 1550nm, 60/80km |
| LED indicator lights | |
| Front panel LED lights | Port light: LINK/ACT; SPEED |
| System work light: RUN | |
| Power status light: PWR1; PWR2; | |
| Alarm light: ALARM | |
| Back panel LED lights | RJ45 Port indicator light: LINK/ACT; SPEED |
| Fiber indicator light: LINK/ACT | |
| Power | |
| Input power | AC/DC220V(85-264VAC/110-370VDC) |
| Power consumption | <25W@(MAX) |
| Overload protection | Support |
| Reverse protection | Support |
| Redundancy protection | Support |
| Working Environment | |
| Operating Temperature | -40°C~85°C |
| Storage temperature | -40°C~85°C |
| Ambient Humidity | 5%~95% |
| Physical Characteristics | |
| Shell | IP40 protection, aluminum alloy shell |
| Installation | Standard 19-inch rack mounting, |
| Support front and rear outlet installation | |
| Dimension | 482.6mm×44mm×210mm (W×H×D) |
| Industry standard | |
| EMC | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS), Level 4 | |
| EN61000-4-4(EFT), Level 4 | |
| EN61000-4-5(Surge), Level 4 | |
| EN61000-4-6(CS), Level 4 | |
| EN61000-4-8, Level 5 | |
| Impact | IEC60068-2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
| Warranty | |
| Warranty | 5 Years |
| Certification | |
| Certification | CE, FCC, RoHS |
| Ordering Information | |
| TELN3026-F(S/M)-AD220 | 1 100M Fx port +24 10/100M Tx ports, layer 2 rack mounted industrial Ethernet switch, single AC85-264V/ DC110~370V isolate power supply |
| TELN3026-2F(S/M)-AD220 | 2 100M Fx ports +24 10/100M Tx ports, layer 2 rack mounted industrial Ethernet switch, single AC85-264V/ DC110~370V isolate power supply |
Company Profile

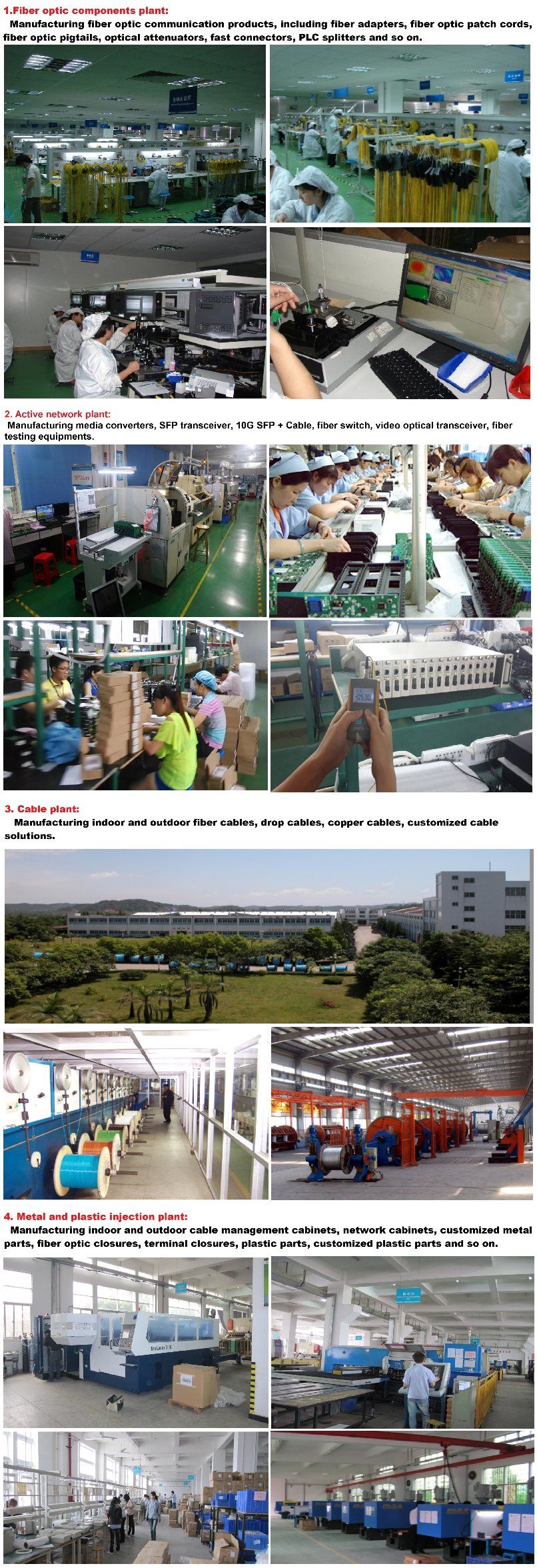

TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
