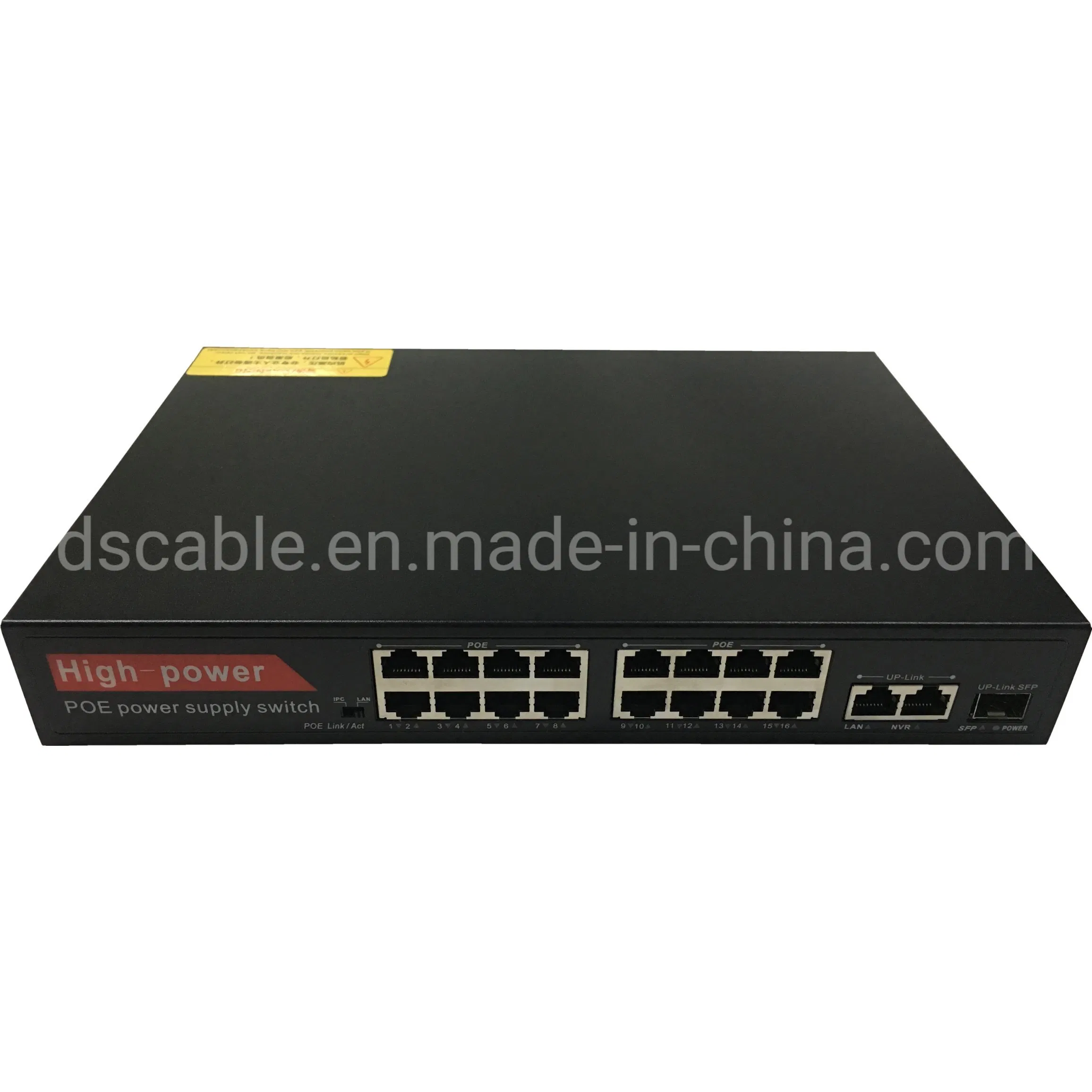

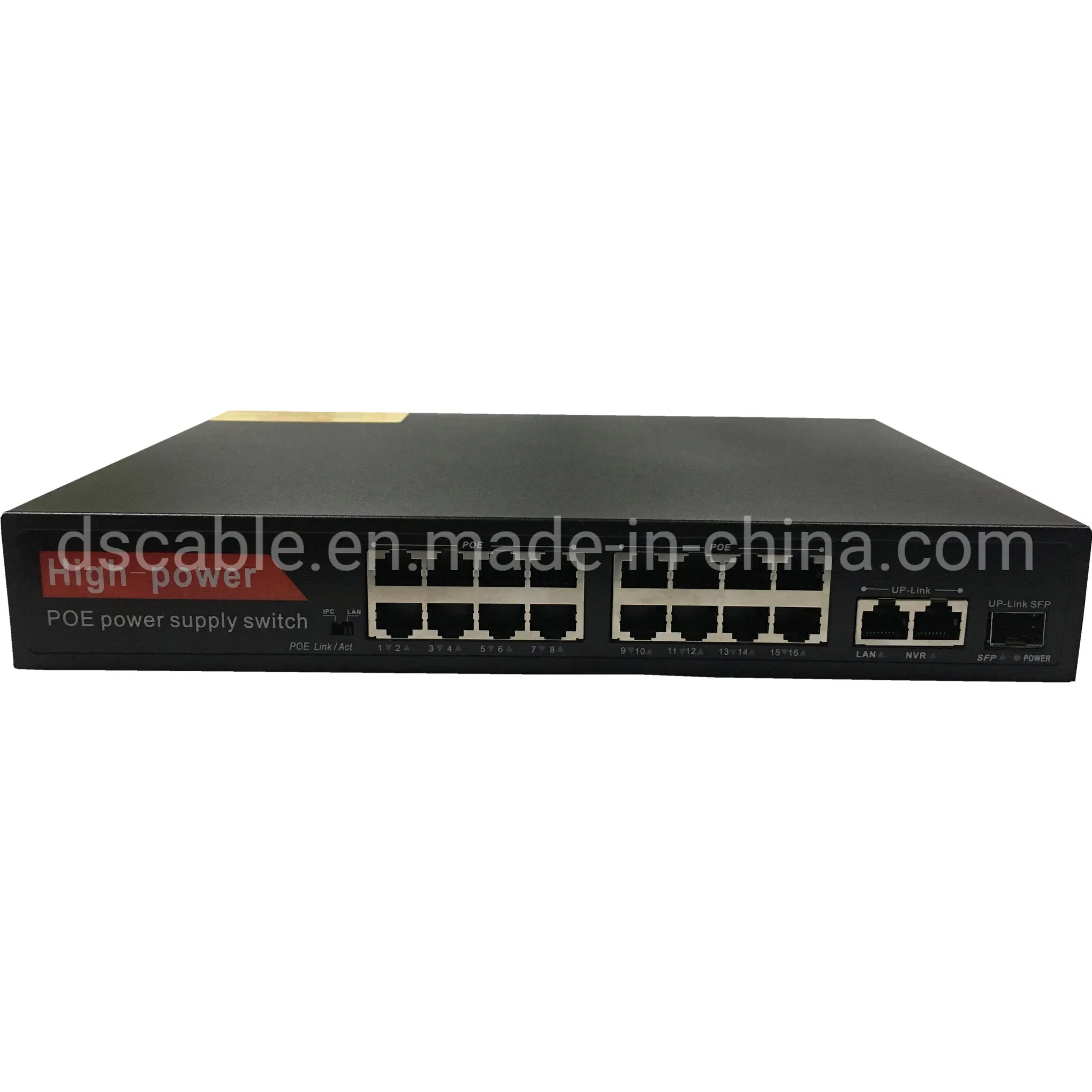

16fe Port 2ge up Link 1SFP Port Poe Switch Built-in 52V 300W Power Supply

16FE Port 2GE Up Link 1SFP Port POE Switch Built-in 52v 300W Power Supply


Description:
The unit is a 16 10/100Mbps ports unmanaged switch with 2 Gigabit Up Link  that requires no configuration and provides 16 PoE (power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af Compliant powered devices (PDs). in this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP cameras or IP phones, etc.  Interface Available:4/16/24 x 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX.

Key Features:
Universal PoE switch for IP security cameras
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
10/100/1000 Mbps speed ports with Auto Uplink
Each of PoE port supports maximum 15.4W/30W Individual Power Supply
Total maximum power for all PoE ports is 300W
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Auto-sensing, output power supply, when connects to PoE IP cameras.
Automatically disconnect power, when IP camera is disconnected
Each port with LED indicators for monitoring power, link, data and speed
Adopting external power adapter supply for easy installation
Safe and Reliable Power to WLAN Access Points

Specifications:
Standard: IEEE802.3af/at
Power Adapter Voltage: AC110~260V,DC48-55V.  24v optinal
Power Consumption: 300W max(ports 1~16)
PoE Power Consumption: af≤15.4W
Network Port: 16port: 10/100Mbps POE Ethernet port; 2 Port Uplink:10/100/1000Mbps,1 Port SFP
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance:250M(820FT.) max with One Key Switch

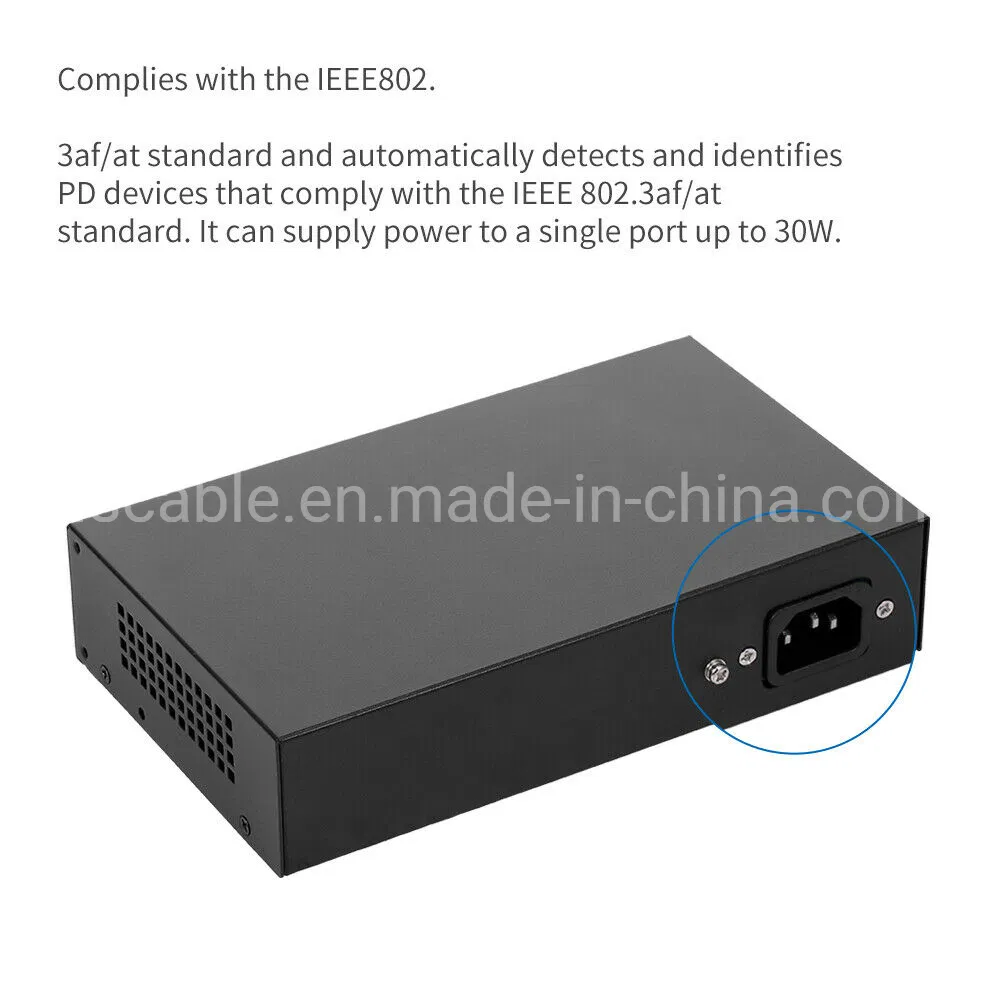

Internal power supply(US/EU/UK/AU Power Cable optional)

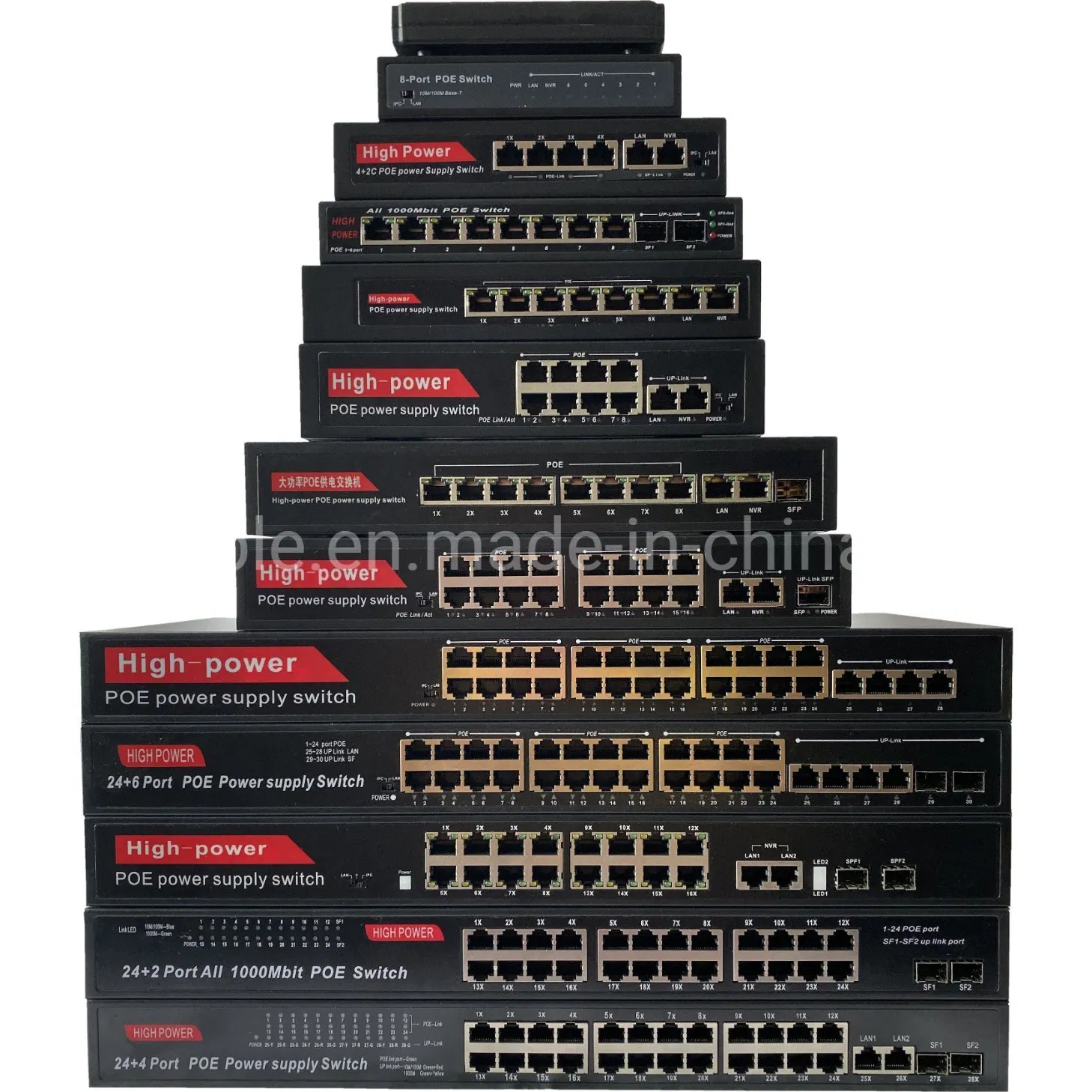

Picture:

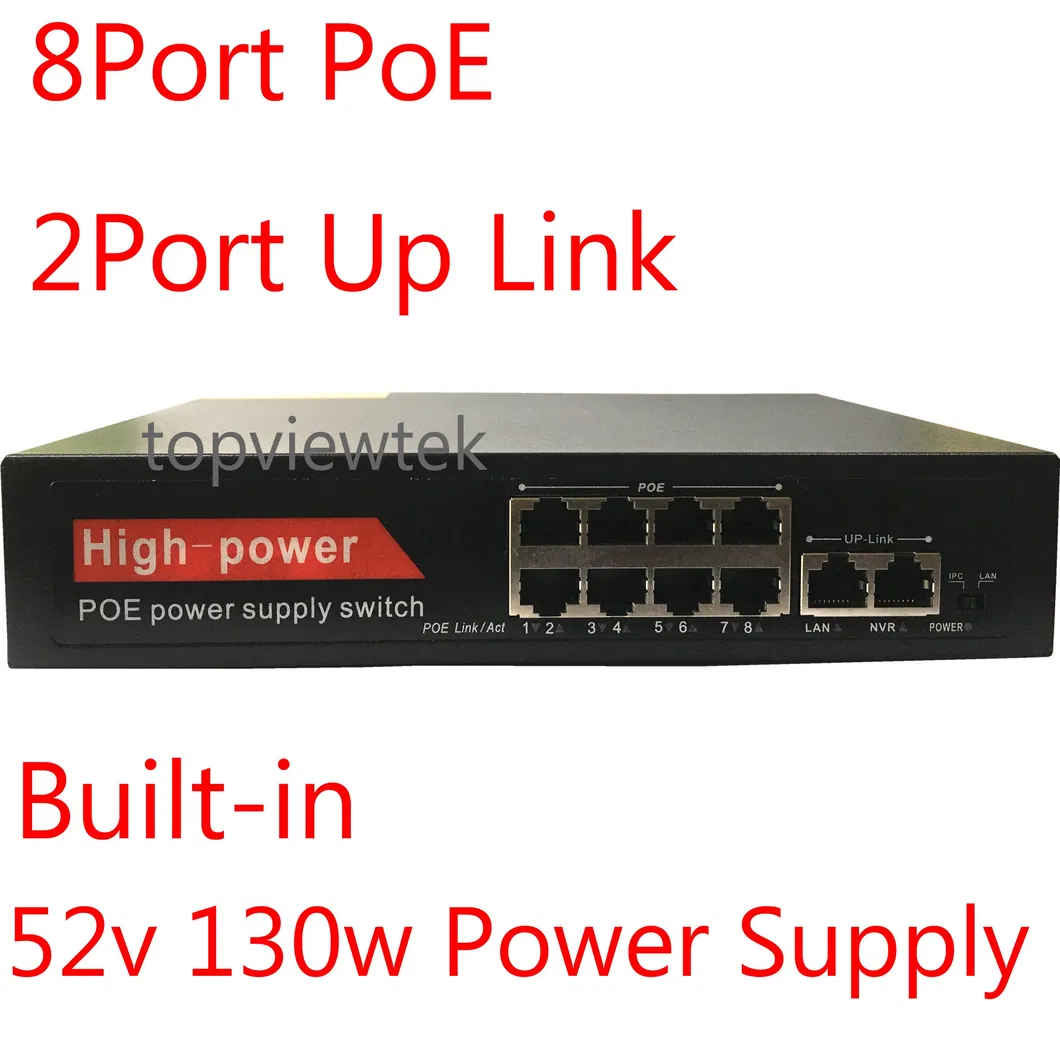

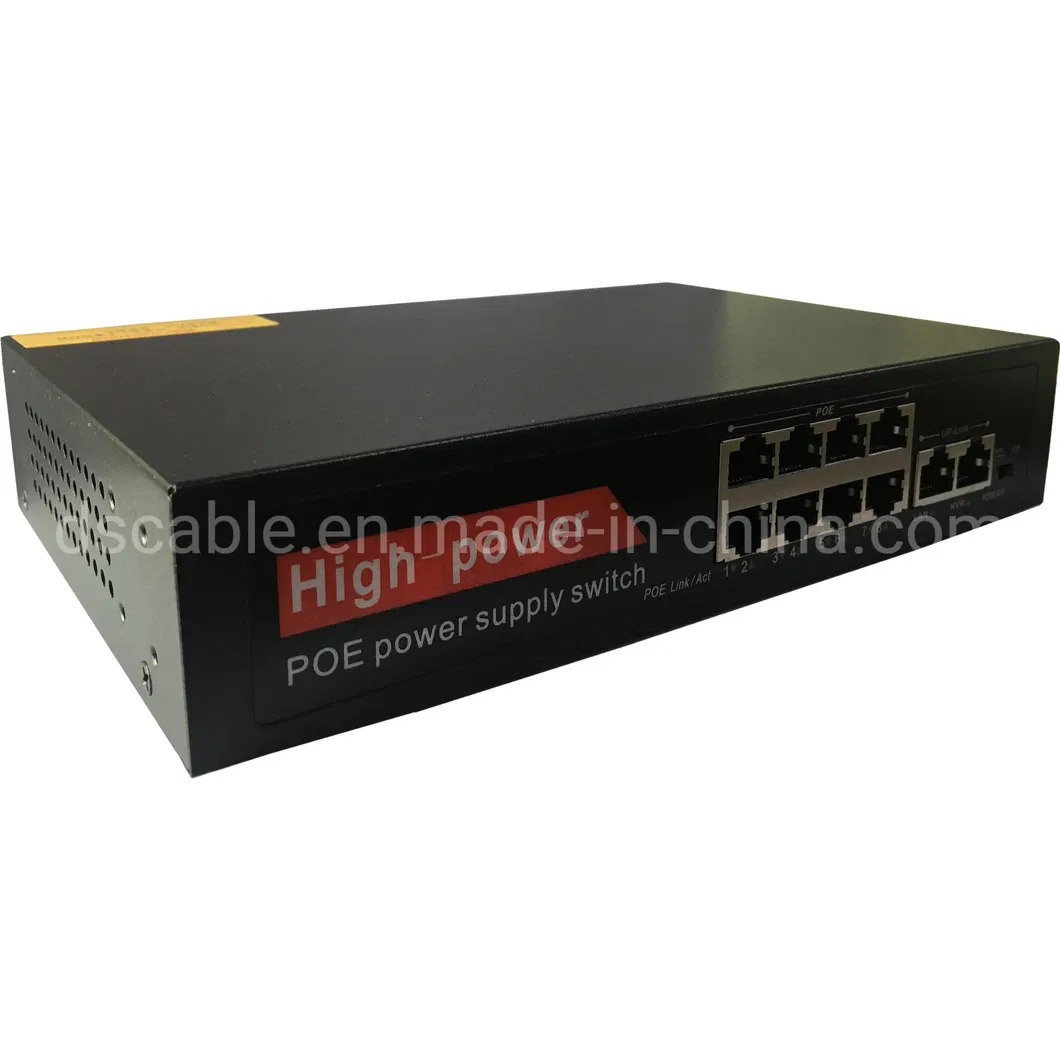

8Port PoE Switch:

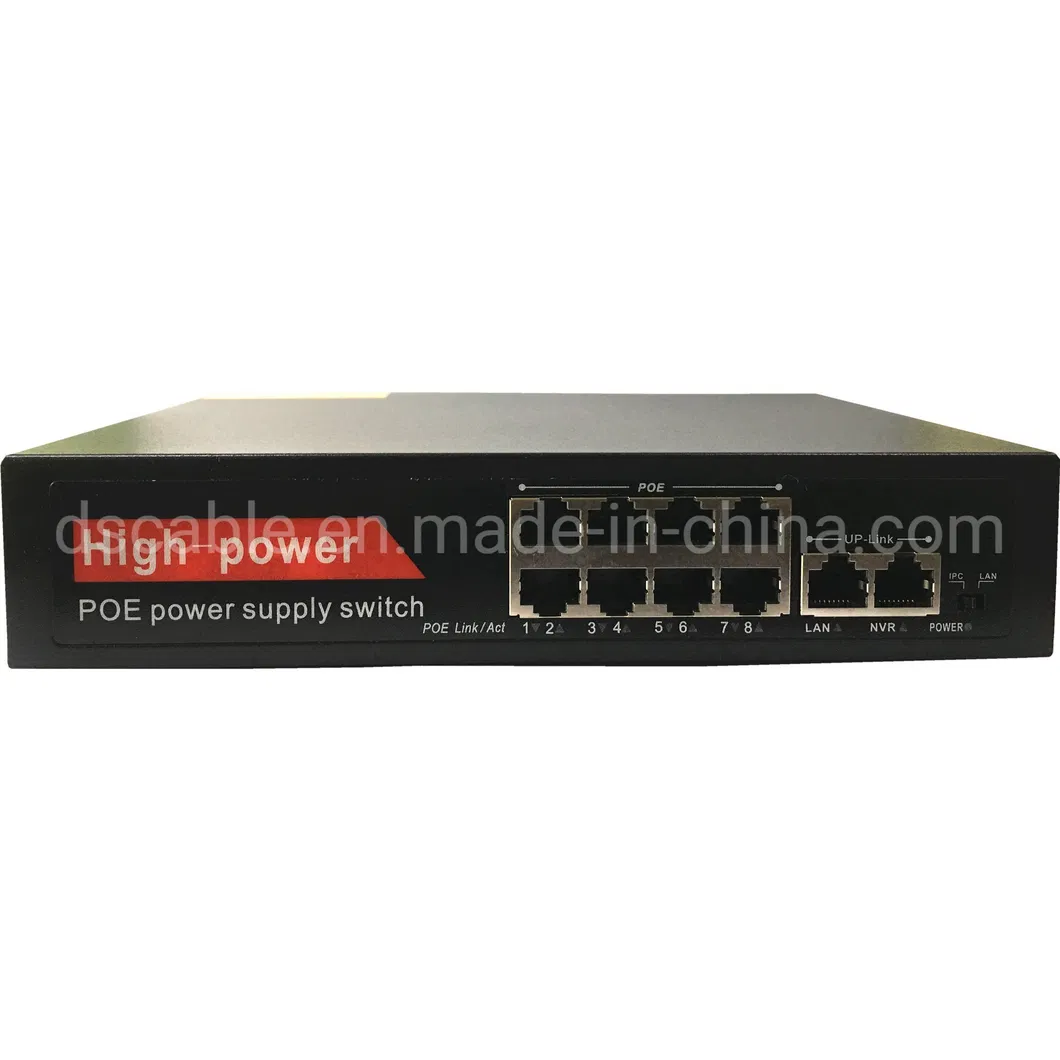

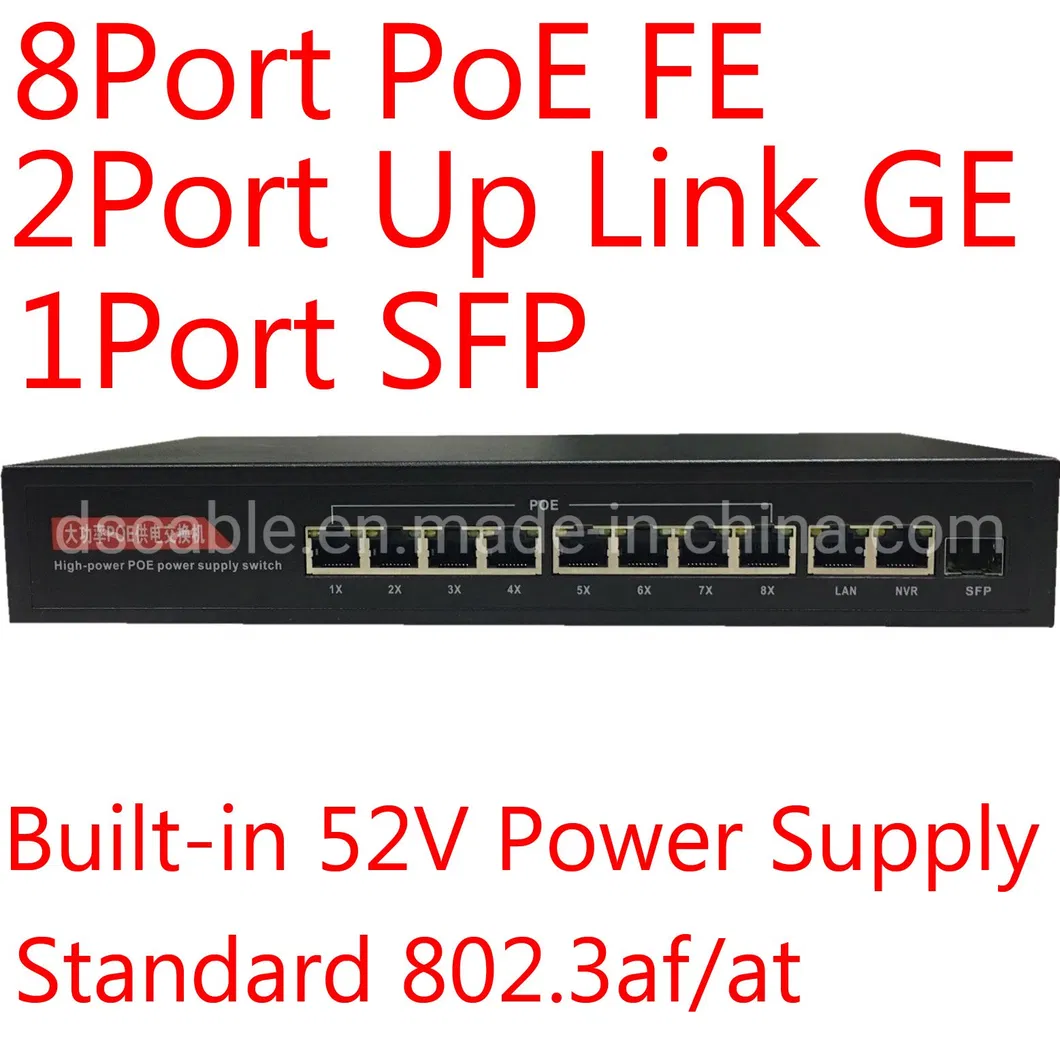

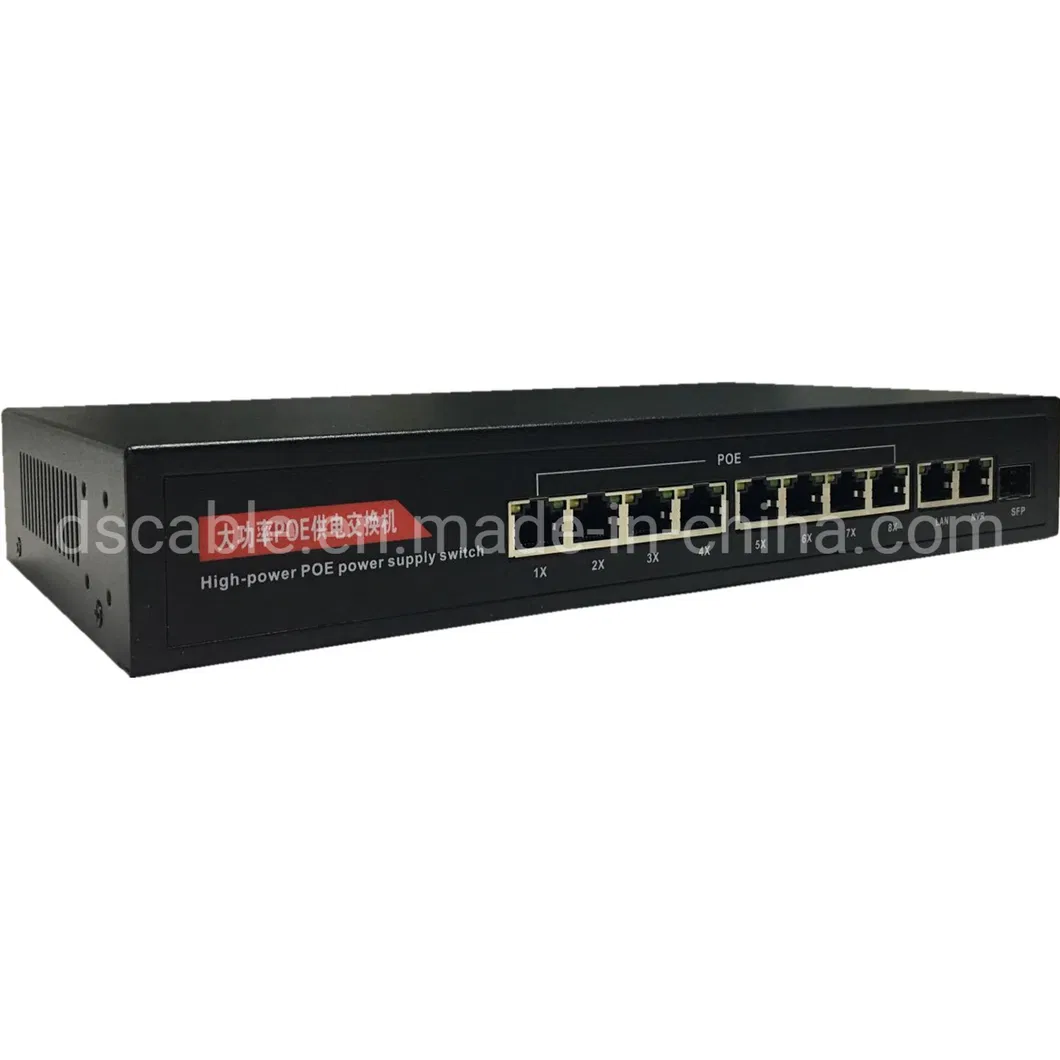

8Port FE+2port FE Up Link PoE Switch:
