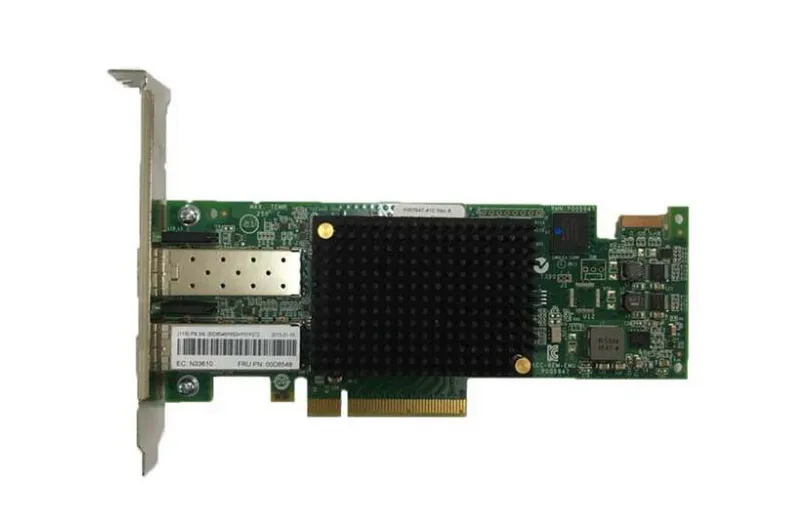

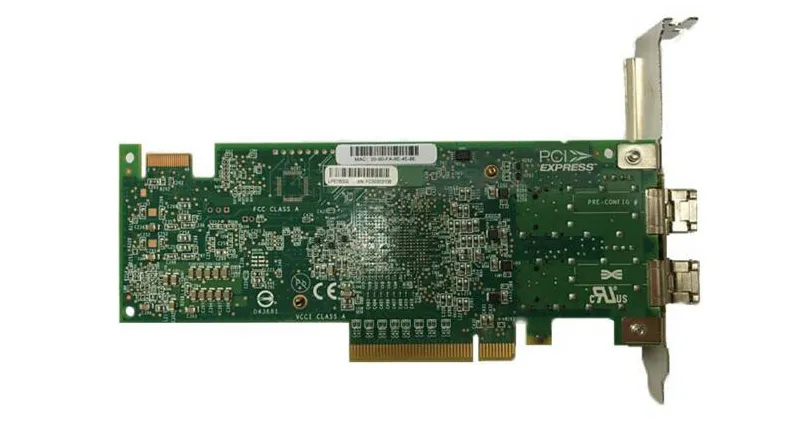

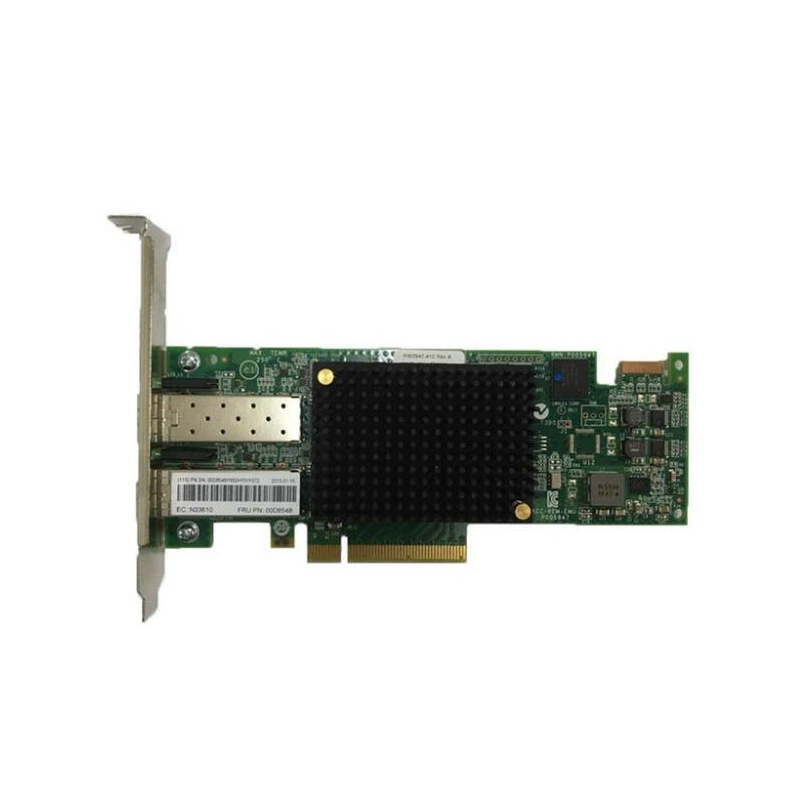

Lpe16002 16g FC Gen 5 Fibre Channel Pcie 3.0 Dual-Port Host Bus Adapter

Product Description

LPE16002 16G FC Gen 5 Fibre Channel PCIe 3.0 Dual-Port Host Bus Adapter

Model Number: LPE 16002

Quick detail
Product Name : LPE16002 FC HOST BUS ADAPTER
Physical Dimensions : Short, low profile : 167.64mm x 68.91mm (6.60" x 2.71")
Cable Support : 100m at 16Gb on 50/125 μm OM3 MMF, 125m at 16Gb on 50/125 μm OM4 MMF, 15m at 16Gb on 62.5/125 μm OM1 MMF, 35m at 16Gb on 50/125 μm OM2 MMF, Operating at 16Gb
Optical Data Rates : Fibre Channel data rates: 14.025 Gb/s (1600Mb/s); 8.5 Gb/s (800Mb/s); 4.25 Gb/s (400 Mb/s) (auto-detected)
Data Transfer Rates : Supports 16GFC, 8GFC and 4GFC link speeds, automatically negotiated
Hardware Environment : PowerPC, SPARC, x86, x64 and Intel Itanium 64-bit processor family
Ports : 2
Optics : Short wave lasers with LC type connector
Host Bus Type : x8 lane PCI Express® 3.0
I/O Controller : XE201

Packaging Details
Unit Type: piece
Package Weight: 0.5kg (1.10lb.)
Package Size: 30cm x 22cm x 5cm (11.81in x 8.66in x 1.97in)

Specifications

Ordering Part #	LPe16002B-M6, 2 Ports 16GFC Short Wave Optical - LC SFP+
Ordering Optional Accessories	LPe16100-OPT spare optic kit - Emulex Certified Spare Optic Kit for LightPulse 16GFC HBAs. QTY 1 optic per kit- 16GFC short wave lasers with LC-type connecter SFP+ optic. Compatible with all Emulex LightPulse 16GFC HBAs. For use as an on-site spare optic.
Whats in the box	In an effort to reduce excessive packaging, each Host Bus Adapter (HBA) ships in a small, space-efficient box. Drivers, installation manual and firmware updates are downloadable from vegashine.en.made-in-china.com.

	Each box includes:
	Quantity 1, low-profile Host Bus Adapter
	Quantity 1, full-height bracket
	Quantity 1, low-profile bracket
	Quantity 1, Firmware download sheet and RoHS sheet
Physical Dimensions	Short, low profile MD2 form factor card 167.64mm x 68.91mm (6.60" x 2.71") Standard bracket (low profile available)
Cable Support	100m at 16Gb on 50/125 μm OM3 MMF, 125m at 16Gb on 50/125 μm OM4 MMF, 15m at 16Gb on 62.5/125 μm OM1 MMF, 35m at 16Gb on 50/125 μm OM2 MMF, Operating at 16Gb
Optical Data Rates	Fibre Channel data rates: 14.025 Gb/s (1600Mb/s); 8.5 Gb/s (800Mb/s); 4.25 Gb/s (400 Mb/s) (auto-detected)
Data Transfer Rates	Supports 16GFC, 8GFC and 4GFC link speeds, automatically negotiated
Hardware Environment	PowerPC, SPARC, x86, x64 and Intel® Itanium 64-bit processor family
Ports	2
Optics	Short wave lasers with LC type connector
Host Bus Type	x8 lane PCI Express® 3.0
I/O Controller	XE201
Operating Humidity	5% to 95% non-condensing
Operating Temperature	0°C to 55°C
Storage Temperature	-40° to 70° C
Operating Voltage (V)	+3.3V, +12V
OS Support	Additional support is available from OEMs and partners, Linux, Solaris, VMware vSphere, Windows Hyper-V, Windows Server
Power Supply	1.8V, 1.2V, 0.9V
Industry Standards	Current ANSI/IETF Standards: FC-PI-4, FC-AL (2GFC/4GFC/8GFC speeds), FC-AL-2 with amendments 1 and 2, FC-DA, FC-FLA, FC-FS, FC-FS-2 with amendment 1, FC-GS-2/3/4/5, FC-GS-6, FC-HBA, FC-LS-2, FC-MI, FC-MJS, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-4, FC-SP, FC-SP-2, FC-TAPE, FCP, FCP-2, FCP-4, Fibre Channel class 2 and 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, RFC2625, RFC4338, SBC-2, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3
Regulatory Certifications	AS/NZS CISPR:2009 +A1, Class A, Australian EMC Framework (RCM), BSMI Class A, CNS13438:2006 (complete), China RoHS Compliant, EMC Directive 2004/108/EC (CE Mark), EN55022:2010, Class A, EN55024:2010, EU RoHS Compliant (Directive 2011/65/EU), FCC Part 15, Class A, ICES-003:2012, Class A, MSIP (formally KCC/MIC), Class A, TUV Bauart-certified to EN60950-1:2006 +A11+A1+A12, UL recognized to UL 60950-1 2nd edition, VCCI Class A, cUR recognized to CSA22.2, No. 60950-1-07
Warranty	1 years
