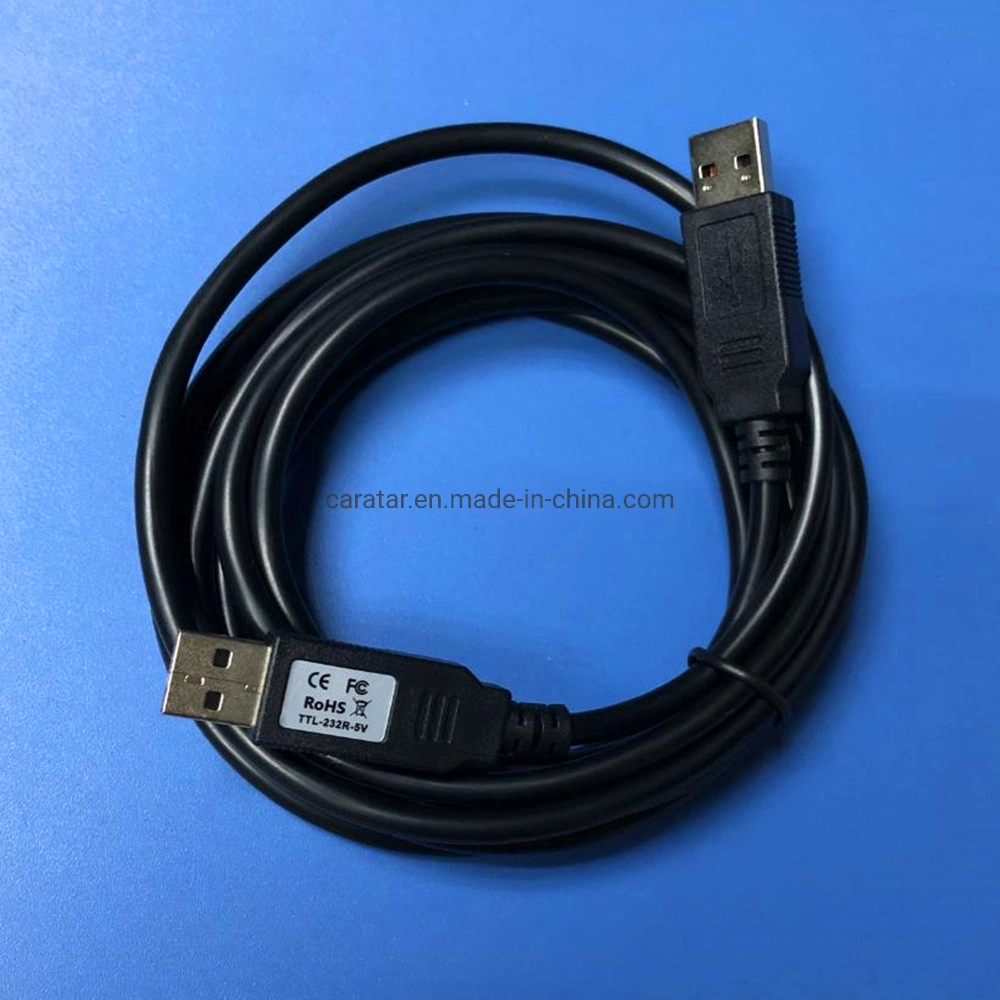

Ftdi USB-Nmc-2.5m USB to USB Serial Communication for PC to PC Data Transfering Communication Cable
USB-NMC-2.5mFTDI USB NMC-2.5m usb to usb serial communication for pc to pc data transfering communication cableType: Modem CableConnector A: USB Type AConnector B: USB Type AGender: Male / MaleWire Gauge-AWG: 24Length: 2.5 mColor: BlackDescription / Function: USB to Serial Cable AssemblyPackage: Bul......
Send Inquiry
Product Description
USB-NMC-2.5m
FTDI USB NMC-2.5m usb to usb serial communication for pc to pc data transfering communication cable
Type: Modem Cable
Connector A: USB Type A
Connector B: USB Type A
Gender: Male / Male
Wire Gauge-AWG: 24
Length: 2.5 m
Color: Black
Description / Function: USB to Serial Cable Assembly
Package: Bulk
Series: USB NMC
The USB to USB Null Modem Cable is a modern replacement for the traditional serial null modem cable. The traditional null modem cable was used to connect two PCs via their RS232 serial ports, but fewer modern PCs continue to implement the RS232 serial port. The RS232 port has almost entirely been replaced by the USB port. However there is still a need to transfer files between PCs that are not networked. The FTDI USB Null Modem Cable (NMC) solves this problem and allows a user to connect two PCs using their USB ports. The user can then perform file transfers between the PCs via the USB interface.
| Description | OEM/ODM
Welcome to your Design , ~! Please contact us for drawing |
| Material | PVC, Copper OD4.0mm,OD5.0mm |
| Lead time | Fast Shipping 3-5days |
| Style | Newest , |
| Warranty | 365days |
| Application | Program Cable |
| Capability | OEM / OEM / Design Your Own Style Wholesale |
• PC to PC networking using USB port.
• File transfer between PCs.
• Password protected file transfer between PCs.
This cable can make two computers communicate each other by USB port. Actually, the USB works as a PC-COM port by FTDI FT230X converter chip in both USB sides. The signals is UART TTL, not RS232
- USB2.0 standard, full speed
- USB to USB null modem cable
- PC to PC networking using usb port
- File transer between PCs
- Password protected file transfer between PCs
- Data transfer rate from 300 baud to 3M baud at TTL level
- USB powered, no extra power needed
- Lower poerating(20mA) and USB suspend mode current(70uA)
- Support FT232R FTDI Chip-IDTM, with each cable end programmed with a unique USB serial number
- Support USB suspend and resume
- UHCI / OHCI / EHCI host controller compatible
- FTDI chip, FT230X USB TTL null modem cable
- FTDI TTL 3.3v converter on both sides
- 28AWG(7/0.12), BC, 5 core
- TX-RX, RX-TX, CTS-RTS,RTS-CTS, GND-GND
- 2mtr in length
- PE bag for each
We make TX to connect RX, Rx to connect TX for receiving/sending datas to each other.
Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE (Version 4.2 and greater)
Android
Windows RT
Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
Support for older versions of Windows Desktop
NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android
